Ruijie RG-CS83-48GT4XS-P 48-Port 1GE Electrical Layer 3 Managed Access PoE+ Switch with 4 10GE SFP+ Uplink Ports

The RG-CS83-48GT4XS-P is a 48-Port Gigabit Layer3 Cloud managed PoE/PoE+ switch with 4x 1GE/10GE SFP+ optical uplink ports, 405W max. PoE Power budget and 176 Gbps switching capacity. The Ruijie RG-CS83 series of switches are next-generation Gigabit Ethernet switches offering security, high efficiency, energy saving, and innovation. They provide full 1000M access and 10GE uplink data exchange with flexible scaling. With new hardware architecture and the Ruijie RGOS12.X modular operating system, the switch provides more resource entries, faster hardware processing performance and better operational experience.

Highlights:

• Multiple network management methods, achieving simple and easy network maintenance
• Open and programmable RGOS modular operating system. Basic functions are incorporated into the main version
• Custom functions are released in app mode, ensuring stability of the basic functions
• Rectifies faults related to processes online in seconds, without interrupting network operation
• Supports Python that allows applications across platforms
• Upgrades and extends functions online to ensure nonstop services
• 3 Year Warranty

Key Features & Benefits:

• Casing: Metal

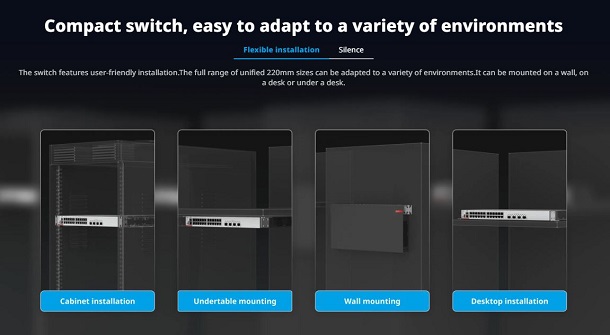

• Mounting: Rack mountable (Rack-mount brackets included)
• Product Category: Layer 3

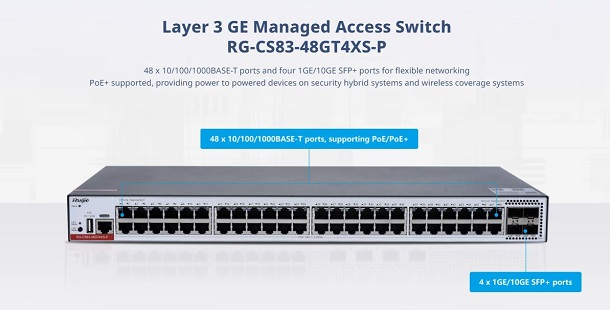

• Service ports:
  48x RJ45 10/100/1000BASE-T auto sensing (IEEE 802.3af/at) PoE/PoE+ Out ports
    4x 10GE SFP+ uplink ports
    1x Fixed management RJ45 console port
    1x USB 2.0 port
• Max. PoE Power budget: 405 W
• Each PoE port provides up to 30 W
• PoE power cable pairs: Mode A (1-2, 3-6 pairs)
• CPU: Dual-core CPU, each core with the clock speed of 1.0 GHz
• BootROM: 16 MB (storing boot software for 1+1 boot redundancy)
• RAM: 1 GB
• Flash memory: 512 MB (storing boot software for 1+1 boot redundancy)
• Switch buffer: 1.5 MB
• Forwarding rate: 132 Mpps
• Switching capacity: 128 Gbps(bit/s)
• MAC address table size: 16.000
• ARP table size 4.000
• Number of IPv4 unicast routes: 6.000
• Number of IPv4 multicast routes: 1.000
• Number of IPv6 unicast routes: 2.000
• Number of IPv6 multicast routes: 750
• Number of ACEs:
  - Ingress: 1.750
  - Egress:    800
• Number of VSU members: 4

Ethernet Switching:

• Jumbo frame length (MTU): 9216 bytes
• Maximum No. of VLANs: 4094
• Maximum No. of MAC address entries: 16000
• 802.3az EEE
• IEEE 802.1Q (4K VLANs)
• Voice VLAN
• Super-VLAN and private VLAN
• MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN
• GVRP
• Basic QinQ
• Selective QinQ
• STP, RSTP, and MSTP
• ERPS (G.8032)
• LLDP/LLDP-MED
• Non blocking

IP Service:

• ARP
• DHCP client, DHCP relay, and DHCP server
• DHCP snooping
• DNS
• DHCPv6 client, DHCPv6 relay, and DHCPv6 server
• DHCPv6 snooping
• Neighbor Discovery (ND) and ND snooping

IP Routing:

• Static routing
• RIP and RIPng
• OSPFv2 and OSPFv3
• IPv4 and IPv6 VRF
• IPv4 and IPv6 PBR

Multicast:

• IGMP v1/v2/v3, and IGMP proxy
• IGMP v1/v2 snooping
• PIM-DM, PIM-SM, and PIM-SSM
• MSDP
• MLD v1/v2
• MLD snooping v1/v2
• PIM-SMv6 and PIM-SSM v6

ACL and QoS:

• Standard IP ACLs
• Extended IP ACLs
• Extended MAC ACLs
• Time-based ACLs
• Expert-level ACLs
• ACL80
• IPv6 ACL
• ACL redirection
• Traffic rate limiting on an interface
• Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
• Congestion avoidance: tail drop
• 802.1p/DSCP/ToS traffic classification
• Eight priority queues per interface
• L2/L3/L4 packet identification and classification

Security:

• Multiple AAA modes
• RADIUS and TACACS+
• Interface-based and MAC address-based 802.1x authentication
• Web authentication
• HTTPS
• SSHv1 and SSHv2
• Global IP-MAC binding
• Port isolation and port security
• IP source guard
• SAVI
• CPP and NFPP

Network Management & Monitoring:

• SNMP v1/v2/v3
• RMON (1, 2, 3, 9)
• NETCONF
• Flow-based mirroring, and N:1 and 1:N port mirroring
• CWMP (TR-069)
• gRPC
• Cloud and SON

Security:

• Multiple AAA modes
• RADIUS and TACACS+
• Interface-based and MAC address-based 802.1x authentication
• Web authentication
• HTTPS
• SSHv1 and SSHv2
• Global IP-MAC binding
• Port isolation and port security
• IP source guard
• SAVI
• CPP and NFPP

Reliability:

• REUP, RLDP, DLDP
• IPv4 VRRP v2/v3 and IPv6 VRRP
• BFD
• Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
• Dual-Boot Redundancy
• Fan speed adjustment
• Fan fault alarm
• Device virtualization: Virtual Switching Unit (VSU)

Power Supply & Consumpion:

• Fixed power supply 100/240V AC, 50/60 Hz, 6A
• Max. power consumption:
    52 W (with no PoE load)
  460 W (with full PoE load)
• Energy saving: Supported
• Cooling: 1 Fixed fan module
  - Air cooling: Front-to-right and left-to-right airflow
  - PID-based multi-level fan speed adjustment
  - Fan speed control (manual configuration not supported)
  - Fan failure alarming
  - Acoustic noise: 27℃ (80.6°F): 32 dB
• MTBF: 200.253 hours
• Hot Swappable: Service ports support hot swapping of cables
• ESD protection:
  - Contact discharge: 6 kV
  - Air discharge: 8 kV
• Surge protection:
  - Service port: ±6 kV for common mode
  - Power connector: ±6 kV for both common mode and differential mode
  - Communication port: 10 kV

Dimensions & Weight:

• Unit Dimensions (WxDxH): 442 x 220 x 43.6 mm
• Unit Weight: 4 kg
• Package Dimensions (WxDxH): 540 x 338 x 154mm
• Weight (With package) 4.9 kg

Environmental:

• Operating temperature 0°C to 50°C
• Storage temperature: -40°C to 70°C
• Operating humidity 10% to 90% RH
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Operating altitude: -500 to 5.000 m
• Storage altitude: -500 to 5.000 m

Certification & Regulatory Compliance:

• EMC: EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386
• Safety compliance: IEC 62368-1
• Certification: CE, RoHS

Package Contents:

• RG-CS83-48GT4XS-P switch
• 4x Rubber pads
• 2x Rack-mount brackets
• 1x Power cord retention clip
• 8x M4x8 mm cross recessed countersunk head screws, GB819-85
• 4x M6x16 screw
• 4x M6 cage nut
• 1x Grounding cable 1m (3.28 ft.)
• 1x Power cord 1.5m (4.92 ft.)
• Mounting Bracket Installation Guide
• Ruijie Networks Access Product Management Software: 1 pre-installed
• User Manual
• Warranty Card
