Ruijie RG-CS86-12XMG4VS-UP 12-Port Multi-Gigabit Cloud Managed PoE/PoE++ Switch, Full 1/2.5/5/10GE and 4x 10/25G SFP28 Uplink Ports

RG-CS86-12XMG4VS-UP is a 12-Port multi-Gigabit Layer 3 Cloud managed PoE/PoE++ switch with 4x 10GE/25GE SFP28 optical uplink ports, max. PoE Power budget 370W and switching capacity up to 440 Gbps. The Ruijie RG-CS86 series offers next-generation multi-GE cloud managed, aggregation switches with advanced hardware architecture and Ruijie modular operating system. Delivers fast hardware processing, good operation experience, flexible multi-GE access (10GE/5GE/2.5GE/1GE) and high-performance 10GE/40GE uplink ports, catering for demands of high- density access and high-performance aggregation. The RG-CS86 series also delivers robust performance, sound end-to-end service quality, and rich security functions for the aggregation layer of large-scale networks, the core layer of small- and medium-scale networks, and campus data centers. This satisfies requirements on high speed, security, and intelligence for enterprise campus networks.

Highlights:

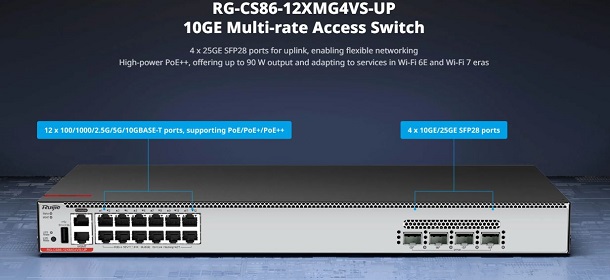

• 12x 100/1000/2.5G/5G/10GBASE-T ports for access and 4x 10GE/25GE SFP28 ports for uplink meeting high-bandwidth campus network demands

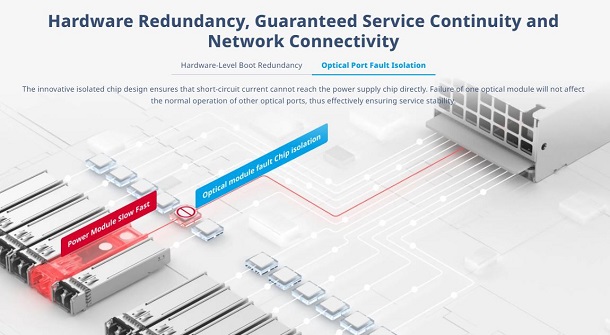

• Hardware-level multi-protection, ensuring service continuity

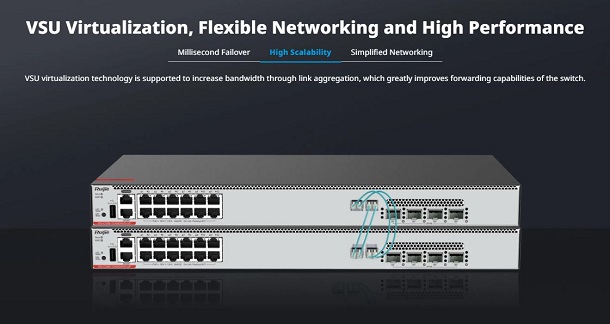

• VSU, realizing flexible networking and high performance

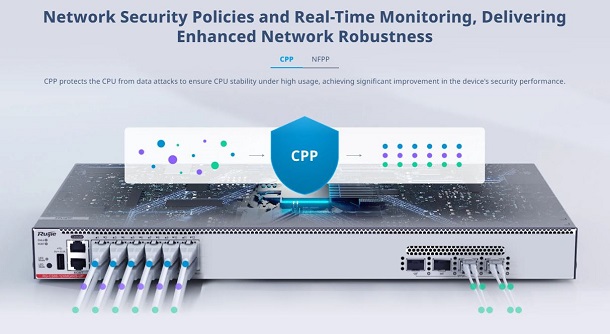

• Network security policies and real-time monitoring, enhancing network robustness

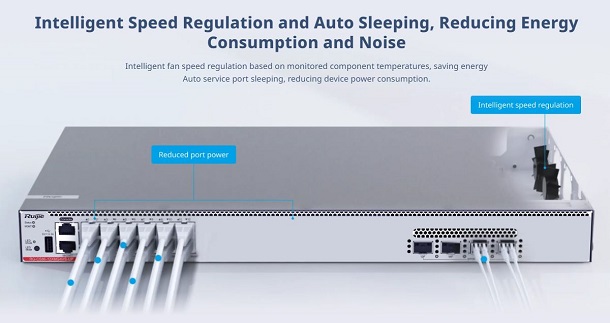

• Intelligent speed regulation and auto sleeping, reducing energy consumption and noise

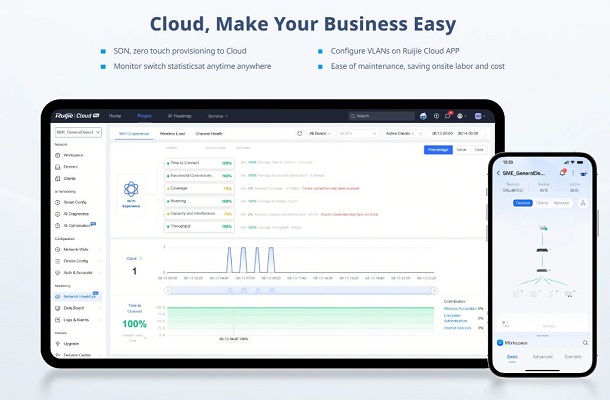

• Diverse network management modes, enabling simple maintenance
• 3 Year Warranty

Key Features & Benefits:

• Casing: Metal
• Mounting: Rack mountable (Rack-mount brackets included)
• Product Category: Layer 3
• Service ports:
  12x 100/1000/2.5G/5G/10GBASE-T ports, supporting PoE/PoE+/PoE++ Out (IEEE 802.3af/at/bt)
    4x 10GE/25GE SFP28 optical uplink ports
    1x RJ45 console port
    1x RJ45 MGMT port
    1x USB 2.0 port
    1x LED mode button
• Max. PoE Power budget: 370 W
• Each PoE port provides up to 90 W
• PoE power cable pairs: Four pairs (1-2, 3-6, 4-5, and 7-8 pairs)
• Uninterruptible power supply upon hot start
• Port priority
• CPU: Single-core CPU, with the clock speed of 1.25 GHz

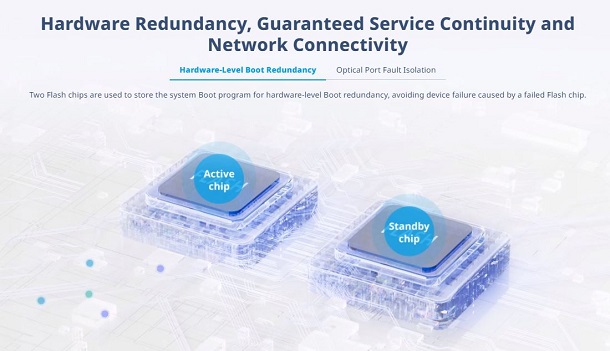

• BootROM: 16 MB (storing boot software for 1+1 boot redundancy)
• RAM: 2 GB (V1.10 and later versions)
• Flash memory: 1 GB (storing boot software for 1+1 boot redundancy)
• Switch buffer: 4 MB
• Forwarding rate: 327 Mpps
• Switching capacity: 440 Gbps(bit/s)
• MAC address table size: 32,768
• ARP table size 16.000
• Number of IPv4 unicast routes: 16.000
• Number of IPv4 multicast routes: 4.000
• Number of IPv6 unicast routes: 16.000
• Number of IPv6 multicast routes: 2.000
• Number of ACEs:
  - Ingress: 2.500
  - Egress:   1.000
• Number of VSU members: 2
• Status LED:
    1x system status LED
    2x power status LEDs
    1x fan status LED
    1x LED mode indicator
    1x MGMT port LED
  12x 100/1000/2.5G/5G/10GBASE-T port LEDs
    4x 10GE/25GE SFP28 port LEDs

Transmission medium supported:

• 100/1000BASE-T Cat 5 UTP
• 2.5GBASE-T CAT5e UTP/STP
• 5GBASE-T CAT6 UTP/STP
• 10GBASE-SR (850 nm)
• 10GBASE-LR (1310 nm)
• 10GBASE-ER (1550 nm)
• 10GBASE SFP+ active optical cable (AOC)
• 25GBASE-SR (850 nm)
• 25GBASE-LR (1310 nm)
• 25GBASE SFP28 active optical cable (AOC)

Ethernet Switching:

• Jumbo frame length (MTU): 9216 bytes
• IEEE 802.1Q (supporting 4K VLANs)
• Voice VLAN
• Super-VLAN and private VLAN
• MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN
• GVRP
• Basic QinQ, Selective QinQ
• STP, RSTP, and MSTP
• ERPS (G.8032)
• LLDP/LLDP-MED
• LACP (IEEE 802.3ad)

IP Service:

• ARP
• DHCP client, DHCP relay, and DHCP server
• DHCP snooping
• DNS
• DHCPv6 client, DHCPv6 relay, and DHCPv6 server
• DHCPv6 snooping
• Neighbor Discovery (ND) and ND snooping

IP Routing:

• Static routing
• RIP and RIPng
• OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6
• BGP4 and BGP4+
• IPv4 and IPv6 PBR
• ECMP

Multicast:

• IGMP v1/v2/v3, and IGMP proxy
• IGMP v1/v2/v3 snooping
• PIM-DM, PIM-SM, and PIM-SSM
• MSDP
• MLD v1/v2
• MLD snooping v1/v2
• PIM-SMv6 and PIM-SSM v6

ACL and QoS:

• Standard IP ACLs
• Extended IP ACLs
• Extended MAC ACLs
• Time-based ACLs
• Expert-level ACLs
• ACL80
• IPv6 ACL
• Port traffic rate limiting
• Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
• Congestion avoidance: tail drop, RED, and WRED
• 802.1p/DSCP/ToS traffic classification
• Eight priority queues per port

Security:

• Multiple AAA modes
• RADIUS and TACACS+
• Interface-based and MAC address-based 802.1x authentication
• Web authentication
• HTTPS
• SSHv1 and SSHv2
• Global IP-MAC binding
• Port isolation and port security
• IP source guard
• SAVI
• CPP and NFPP
• Strict and loose RPF
• uRPF ignoring default routes

Reliability:

• REUP, RLDP, DLDP
• IPv4 VRRP v2/v3 and IPv6 VRRP
• BFD
• GR for RIP, OSPF, BGP
• 1+1 power redundancy
• Hot swapping of power and fan modules

Device virtualization: Virtual Switching Unit (VSU)

Network Management & Monitoring:

• SPAN, RSPAN, and ERSPAN
• sFLOW
• NTP and SNTP
• FTP and TFTP
• SNMP v1/v2/v3
• RMON (1, 2, 3, 9)
• NETCONF
• CWMP (TR-069) standard protocol
• gRPC
• Cloud and SON

Power Supply & Consumpion:

• Fixed power supply 100/240V AC, 50/60 Hz, 6A
• Max. power consumption:
  120 W (with no PoE load)
  460 W (with full PoE load)
• Energy saving: Supported
• Cooling: 2 Fixed fan modules
  - Air cooling: Front-to-right and left-to-right airflow
  - Fan speed adjustment: 3 levels
  - Fan failure alarming
  - Temperature alarming
• Acoustic noise:
  27°C (80.6°F): 40 dB
  45°C (113°F): 78 dB
• MTBF: 194.297 hours (about 22 years)
• Hot Swappable: Service ports support hot swapping of cables
• ESD protection:
  - Contact discharge: 6 kV
  - Air discharge: 8 kV
• Surge protection:
  - Service port: ±6 kV for common mode
  - Power connector: ±6 kV for both common mode and differential mode
  - Communication port: 10 kV
• Conformal coating: supported (key components only)

Dimensions & Weight:

• Unit Dimensions (WxDxH): 442 x 220 x 43.6 mm
• Unit Weight: 3.65 kg
• Package Dimensions (WxDxH): 568 x 366 x 226mm
• Weight (With package) 5.37 kg

Environmental:

• Operating temperature 0°C to 50°C
• Storage temperature: -40°C to 70°C
• Operating humidity 10% to 90% RH
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Operating altitude: -500 to 5.000 m
• Storage altitude: -500 to 5.000 m

Certification & Regulatory Compliance:

• Safety compliance: IEC 62368-1
• EMC:
  EN 300386, EN 55032 Class A, EN 55035
  EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3
  EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
• Certification: CE, RoHS

Package Contents:

• RG-CS86-12XMG4VS-UP switch
• 4x Rubber pads
• 2x Rack-mount brackets
• 1x Power cord retention clip
• 8x M4x8 mm cross recessed countersunk head screws, GB819-85
• 4x M6x16 screw
• 4x M6 cage nut
• 1x Grounding cable 1m (3.28 ft.)
• 1x Power cord 1.5m (4.92 ft.)
• Mounting Bracket Installation Guide
• Ruijie Networks Access Product Management Software: 1 pre-installed
• User Manual
• Warranty Card















































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	POE Switch
Switching Capacity	440Gbps
POE	Ναι
Downlink Ports	12
Uplink Ports	4
Network Speed	Gigabit
SFP Ports	Ναι
Management	Smart Managed
Layer Type	Layer 3
PoE Power Budget	370W
Mounting	Rack Mount
Εγγύηση	3 Years
