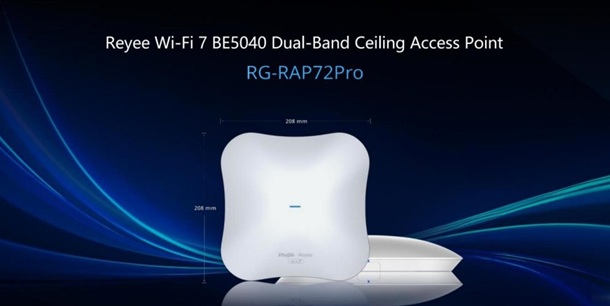

Ruijie-Reyee RG-RAP72Pro Wi-Fi 7 BE5040 Dual-Band Indoor Ceiling Access Point

The Ruijie-Reyee RG-RAP72Pro is a powerful Wi-Fi 7 5040 Mbps dual-band ceiling access point designed for indoor scenarios such as offices, hotels, schools and more. Featuring multiple advanced technologies, this access point can deliver high-speed, stable and secure Wi-Fi connectivity to meet the diverse needs of users. Supports the IEEE 802.3at standard PoE and 12 V DC power supply, offering flexibility to choose the most suitable power supply mode based on specific conditions. It is compatible with the IEEE 802.11a/b/g/n/ac/ax/be standards and operates in the 2.4 GHz and 5 GHz frequency bands. Delivering data rates of 0.688 Gbps in the 2.4 GHz band and 4.323 Gbps in the 5 GHz band, with a maximum data rate of 5.011 Gbps, meets the requirements for high-speed wireless connectivity. Furthermore, the RG-RAP72Pro provides one 2.5G Ethernet port and one 1000 Mbps Ethernet port, bringing the high-speed wireless performance into full play. Leveraging Reyee Self-Organizing Network technology, it can cater to diverse networking needs while ensuring complete indoor Wi-Fi coverage.

Key Features & Benefits:

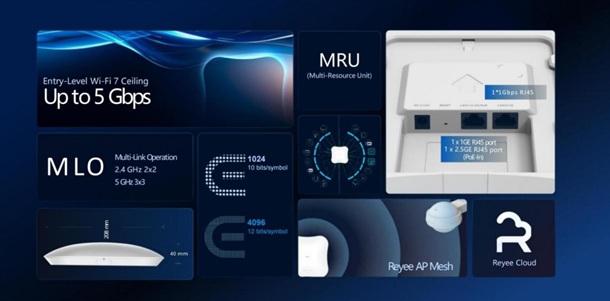

• Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
• Superior streaming with Wi-Fi 7's exclusive MLO feature
• Compact design and easy installation
• Enhanced data transmission with 4K-QAM for faster speeds

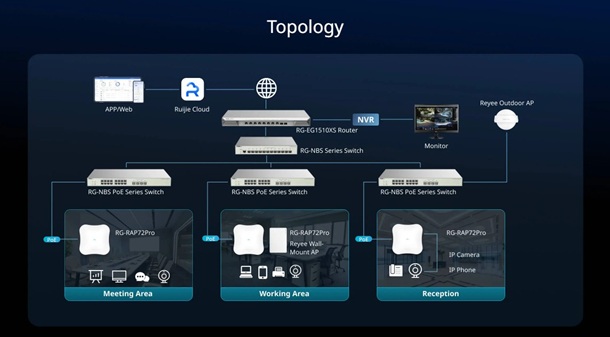

• Ideal for integrating with enterprise switches to create a robust office network
• 3 Year Warranty

Specifications:

• Model: RG-RAP72Pro
• Mounting options: Ceiling/Wall
• Color: White

System Specifications:

• RAM 512 MB DDR3
• Flash memory 256 MB

Port Specifications:

• Number of 10/100/1000BASE-T ports: x1
• Number of 10/100/1000/2500BASE-T ports: x1
• Reset button: x1
• LEDs: 1x System status LED

Wi-Fi Radio:

• 5 GHz:
  Wi-Fi 4 (IEEE 802.11a/n)
  Wi-Fi 5 (IEEE 802.11ac)
  Wi-Fi 6 (IEEE 802.11ax)
  Wi-Fi 7 (IEEE 802.11be)
• 2.4 GHz:
  Wi-Fi 4 (IEEE 802.11b/g/n)
  Wi-Fi 6 (IEEE 802.11ax)
  Wi-Fi 7 (IEEE 802.11be)

Operating Band:

• IEEE 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz
• IEEE 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
• Note: Available bands vary with countries and regions. To use the preceding frequency bands, ensure that your country or region supports them

FEM:

• 2.4 GHz: 2 x eFEM
• 5 GHz: 3 x eFEM

Channel Width:

• 5 GHz: Auto/20/40/80/160 MHz
• 2.4 GHz: Auto/20/40 MHz

Data Rate:

• Maximum wireless data rate: 5011 Mbps
• 5 GHz wireless data rate: 4323 Mbps
• 2.4 GHz wireless data rate: 688 Mbps

Maximum Transmit Power:

• Frequency bands & maximum EIRP:
  Note: Country specific restrictions apply
• European Union & United Kingdom:
  2400–2483.5 MHz, EIRP ≤ 20 dBm
  5150–5350 MHz, EIRP ≤ 23 dBm
  5470–5725 MHz, EIRP ≤ 30 dBm
• Maximum transmit power (5 GHz): Combined power: 29.7 dBm (single-stream power: 25 dBm)
• Maximum transmit power (2.4 GHz): Combined power: 27 dBm (single-stream power: 24 dBm)
• Note: The transmit power varies according to regulations in different countries and regions

Coverage Range:

• 145 ㎡ (1560.77 square ft.)
• Note: The data is obtained in an ideal environment without obstruction.
           The signal coverage radius depends on client

Modulation:

• OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
• DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
• MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM
• OFDMA

Antenna:

• 2.4 GHz: 2 built-in omnidirectional antennas
• 5 GHz: 3 built-in omnidirectional antennas
• Antenna gain (5 GHz): 4.00 dBi
• Antenna gain (2.4 GHz): 3.00 dBi

Basic Configurations:

• AP mode
• Routing mode
• Internet access mode:
• Static IP address
• Static IPv6 address
• Dynamic IP address
• Dynamic IPv6 address
• PPPoE

Interface: IPTV transparent transmission
Ethernet Interface: PPPoE clients
Ethernet Switching: IEEE 802.1Q VLAN

WLAN:

• Maximum number of associated wireless clients:
    64 (2.4 GHz)
  511 (5 GHz)
  511 (2.4 GHz and 5 GHz enabled)
• Recommended number of associated wireless clients:
  - Support for IEEE 802.11ax and 160 MHz:
    16 (2.4 GHz)
    94 (5 GHz)
  110 (2.4 GHz and 5 GHz enabled)
  - Support for IEEE 802.11ax and 80 MHz:
    16 (2.4 GHz)
    84 (5 GHz)
  100 (2.4 GHz and 5 GHz enabled)
  - Support for IEEE 802.11ac:
    16 (2.4 GHz)
    64 (5 GHz)
    80 (2.4 GHz and 5 GHz enabled)
• Maximum number of SSIDs: 8
• Radio-based client limiting
• Layer 2 isolation
• OFDMA, WMM, DFS, MLO, 4K-QAM
• Different SSIDs for the same VLAN
• Enabling/Disabling MLO
• AP load balancing
• Beamforming
• 802.11k/v roaming
• Fast transition (802.11r)
• Layer 2 roaming, Layer 3 roaming, AI roaming
• PSK authentication
• Static allowlist
• Adjusting the transmit power for beacon & probe frames
• Encryption mode (WPA-PSK, WPA2-PSK, WPA/WPA2-PSK)
• OWE (Enhanced Open)
• WPA3-SAE, WPA2-PSK/WPA3-SAE
• Number of blocklists & allowlists based on MAC addresses (single SSID): 256
• Number of global blocklists/allowlists: 256
• Mesh management, AP Mesh, AP portal authentication
• Maximum number of devices that can be managed: 300
• One-Click Network Optimization
• Static blocklist

IP Service:

• ARP binding
• IPv4 ping
• IPv6 ping
• Traceroute
• Static/Dynamic NAT
• DHCP server
• IPv6

Authentication: 802.1X authentication

Network Management & Monitoring:

• Wireless repeater mode
• Web login information:
• Single-device login address: 10.44.77.254
• Network-wide login address: 10.44.77.253
• Default password: admin
• Network-wide configuration & management
• Ruijie Reyee App management
• eWeb management
• Ruijie Cloud management
• SNMP
• Configuration synchronization among the app, eWeb, and Ruijie Cloud
• Displaying device information on Ruijie Cloud

Power Supply & Consumption

• Power supply:
  DC power adapter
  PoE/PoE+
  Note: If both the DC power adapter and PoE/PoE+ are
  available for power supply, the DC power adapter is preferred
• Local power supply: One DC power connector (12V, 2.5A)
• Dimensions of the DC connector:
  Outer diameter: 5.5 mm
  Inner diameter: 2.1 mm
  Length: 10 mm
• PoE In standard:
  IEEE 802.3af (PoE)
  Note: Radio transmission & reception is limited to 1T1R at 2.4 GHz and 5 GHz
• IEEE 802.3at (PoE+)
• Maximum power consumption 30 W

Environment & Reliability:

• Operating temperature 0°C to 40°C (32°F to 104°F)
• Storage temperature –40°C to +70°C (–40°F to +158°F)
• Operating humidity 5% RH to 95% RH (non-condensing)
• Storage humidity 5%RH to 95% RH (non-condensing)
• IP rating: IP41
• Surge protection Ethernet port: ±2 kV for common mode

MTBF: 400.000 hours

Certification & Regulatory Compliance:

• RoHS
• Safety compliance: EN 62368-1
• EMC: EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301489-1, EN 301489-3, EN 301489-17
• RF: EN 300 328, EN 301 893, EN 300 440, Draft EN 303 687
• Certification: CE, FCC, CB, ISED, cTUVus

Dimensions & Weight:

• Unit dimensions (WxDxH): 208 x 208 x 40 mm (excluding the mounting bracket)
• Unit weight: ≤ 0.75 kg (without packaging materials)
• Package weight: ≤ 1.3 kg

 PartnerNet-Ruijie Reyee RG-RAP72Pro Wi-Fi 7 BE5040 Dual-band Ceiling AP Datasheet

Package Contents:

• 1x RG-RAP72Pro AP
• 1x Mounting bracket
• 4x Cross pan head screws (ST4.2 x 20 mm)
• 4x Plastic expansion anchors (φ9 x 25.4 mm)
• 1x User Manual
• 1x Warranty Card
• 1x Key to security lock
• 1x Alignment sticker











































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Indoor WiFi Access Point
Τεχνολογία	802.11be (Wi-Fi 7)
Aggregate Wireless Throughput	5011Mbps
Antenna	Dual-band 3x3 MIMO
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	511
Max. Coverage Range	100m
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
POE	ΝΑΙ
Wireless	ΝΑΙ
Εγγύηση	3 Χρόνια
