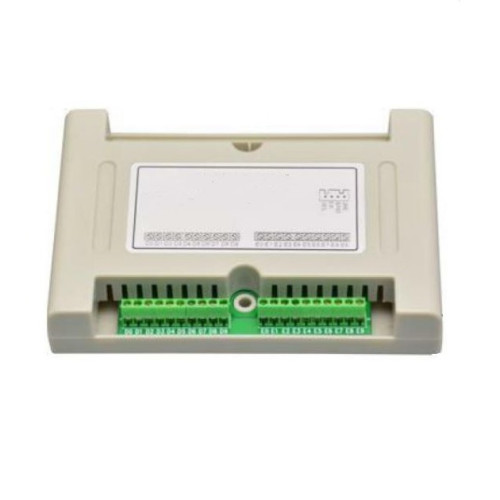

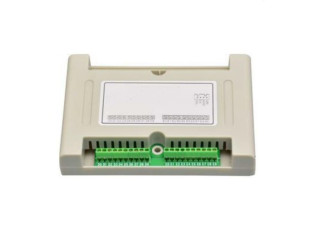

Akuvox IAA-AS11 Analog Switch

Κατασκευαστής: Akuvox
Κωδικός Προϊόντος: AKVX-0153
Διαθεσιμότητα: Please Login

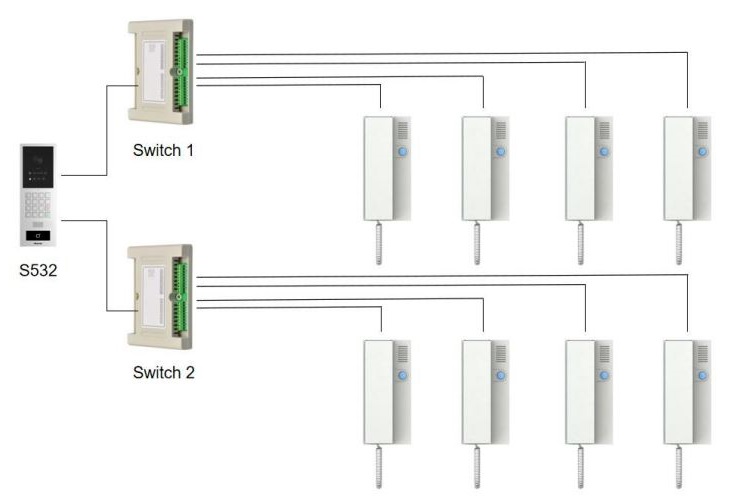

The Akuvox IAA-AS11 is a bridge connecting the S532 IP Door Phone with the IAA-AH11 Indoor Answering Units. Its main functions are to amplify signal, distribute power, isolate fault, expand capacity and increase communication distance from the door phone to the indoor answering units.  The IAA-AS11 works with centralized power from the Akuvox S532 IP Door Phone, supporting up to 100 Akuvox IAA-AH11 answering units.

Specifications:

  • Unit Dimensions: 129 x 90 x 23 mm
  • Max Distance: 100m
  • Power: Centralized power from S532
  • Stand-by Current: ≤50uA
  • Working Current: ≤100mA
  • Working Temperature: -20°C ~ 60°C
  • Installation: Wall-mounted
  • Supports up to 100 answering units

 PartnerNET Akuvox IAA-AS11 Analog Switch Datasheet






























Χαρακτηριστικά
Τεχνολογία IP
Εγγύηση 1 Χρόνο
Χαρακτηριστικά Θυροτηλεφώνων
Κατασκευαστής Akuvox
Τύπος Προϊόντος Analog Switch
Επίτοιχη Tοποθέτηση ΝΑΙ
Προτιμώμενη Τοποθέτηση Indoor
Ετικέτες: Akuvox, IAA-AS11, Analog Switch, IAA-
