Ruijie-Reyee RG-NBS6002 Layer 3 Cloud Managed Modular Switch

The Ruijie-Reyee RG-NBS6002 is a Layer 3 Cloud Managed Modular Switch. Designed to provide scalability & flexibility, offers 2 power slots ensuing service continuity & supports 4 types of line cards, enabling for 11 combinations to meet multiple deployment scenarios.

Highlights:

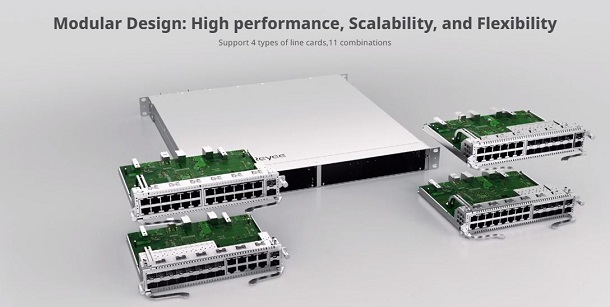

• Modular design provides scalability and flexibility
• Static routing allows traffic to be routed at Layer 3
• Multiple security policies protect your network
• Lifetime management on Ruijie Cloud at anytime anywhere
• 5 Year Warranty

Optionally available Module Cards:

M6000-24GT2XS - 24x Gigabit Ethernet copper ports (RJ45) + 2x 10-Gigabit Ethernet Fiber ports (SFP+,LC), Power Consumption ≤20.6W

M6000-16GT8SFP2XS - 16x Gigabit Ethernet copper ports (RJ45) + 8x Gigabit Ethernet Fiber ports (SFP+,LC) + 2x 10-Gigabit Ethernet Fiber ports (SFP+,LC), Power Consumption ≤28.5W

M6000-24SFP2XS - 24x Gigabit Ethernet Fiber ports (SFP LC) + 2x 10-Gigabit Ethernet Fiber ports (SFP+,LC), Power Consumption ≤44.4W

M6000-16SFP8GT2XS - 16x Gigabit Ethernet Fiber ports (SFP LC) + 8x Gigabit Ethernet copper ports (RJ45) + 2x 10-Gigabit Ethernet Fiber ports (SFP+,LC), Power Consumption ≤36.4W

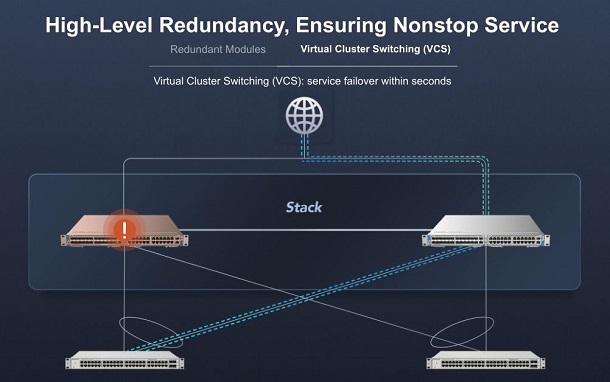

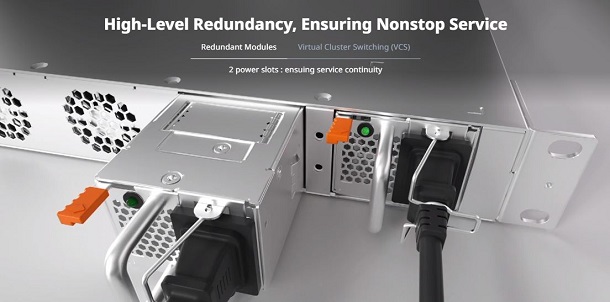

• The RG-NBS6002 also offers High-Level Redundancy, Ensuring Nonstop Service, Redundant Modules Virtual Cluster Switching (VCS) with 2 power supply slots & 3 fans, ensuing service continuity.

Optionally Available Modular Power Supplies 100 - 240V AC, 3A:

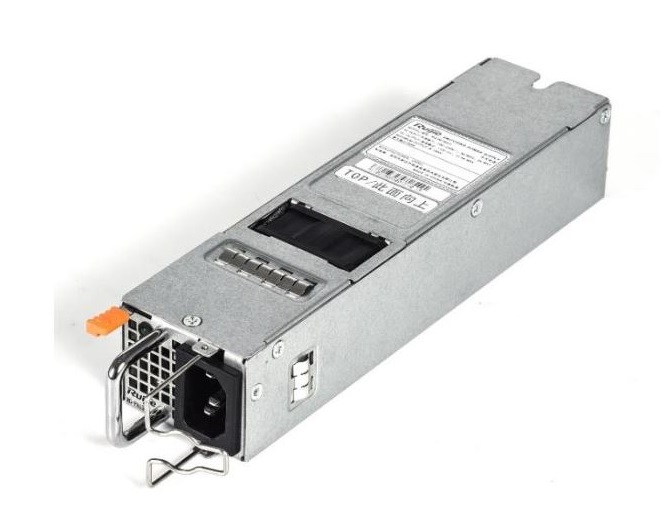

RG-PA150I-FS RG-NBS6002 Power Module (support redundancy, AC, 150W)



Key Features & Benefits:

• Casing: Metal
• Mounting: Rack mountable 1RU chassis (Rack-mount brackets included)
• Product Category: Layer 3
• Service ports:
  - Support for max. 48x 10/100/1000BASE-T ports
  - Support for max. 48x SFP ports
  - Support for max.   4x SFP+ ports
• Switching capacity: 176Gbps
• Forwarding rate: 132Mpps
• Packet Buffer: 16 Mbit
• MAC address table: 32.000
• Maximum VLAN Support: 4094
• MTBF: > 400,000
• Jumbo Frame: 9216
• Flow Control
• STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
• Port Fast, BPDU Guard, Errdisable Recovery
• Max. Aggregation Group: 16
• Max. Member per Group: 8
• Unknown Unicast Storm Suppression
• Multicast/Broadcast Storm Suppression
• Many-to-One Mirroring
• VLAN Range: 1-4094
• Port-based VLAN, MAC-based VLAN, IP-based VLAN, Voice VLAN
• RLDP, LLDP / LLDP-MED
• Cable Testing
• IGMP Snooping v1/v2/v3
• Ping, Traceroute
• ACL Entries: 1900
• Static Routing, IP Standard ACL, MAC-based Extended ACL, IP-based Extended ACL
• Port-based Rate Limit (Ingress/Egress)
• SNMP v1/v2c/v3
• DHCP Server, Web Management
• Management IP: 10.44.77.200
• HTTP/HTTPS
• Cloud Management
• SON (Self-Organizing Network) with IP
• Camera Recognition, Loop Prevention
• Port Protection, IP Source Guard
• Anti-ARP, DHCP Snooping, DHCP Client

Environmental:

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH
• Storage Humidity: 5% to 95% RH
• Port Surge: 6 kV
• Operating Altitude: -500 to 5000 m

Power Supply & Consumption:

• 1x  Reset Button (rear)
• Cable Hot-swappable
• Power Supply Slot:
  - Dual, modular power supply
  - RG-PA150I-FS RG-NBS6002 Power Module (support redundancy, AC, 150W)
• Power Consumption: ≤ 37.2W
• Port Surge Protection: 6 kV
• Cooling:
• 3 Fans, left/right-to-Rear air flow
• Fan Adaptive Speed Adjustment
• Acoustic Noise: < 60dB

Physical Features:

• Unit Dimensions (WxDxH) 460 x 442 x 44mm
• Unit Weight (without modules) 5.4Kg
• Package Dimensions (WxDxH) 596 x 285 x 558mm
• Package Weight 6.2KG

Certification & Compliance: CE, RoHS

Package Contents:

• 1x RG-NBS6002 Layer 3 Cloud Managed Modular Switch
• 2x  Mounting Brackets
• 6x  Screws
• 4x  Foot pads
• 1x RG-PA150I-FS (100-240V, 150W) Power supply
• Quick Start Guide
• Warranty Card





































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Modular Switch
Modular	Ναι
Switching Capacity	176Gbps
POE	Οχι
Management	Smart Managed
CCTV Mode	Ναι
Mounting	Rack Mount
Εγγύηση	5 Years
