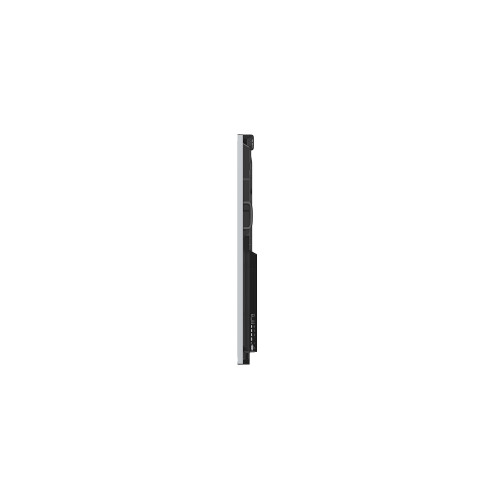

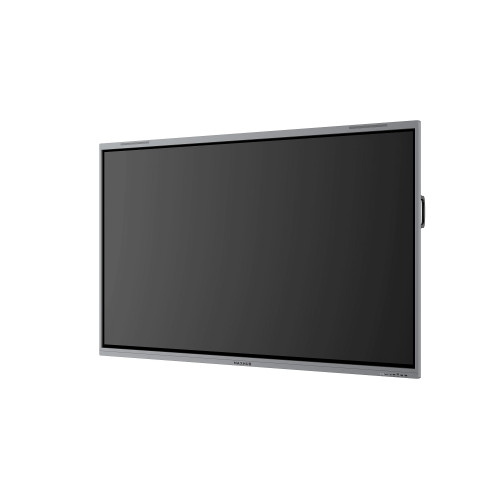

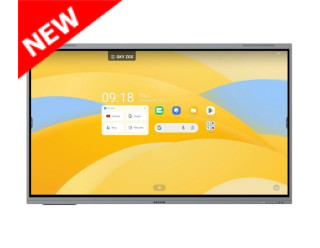

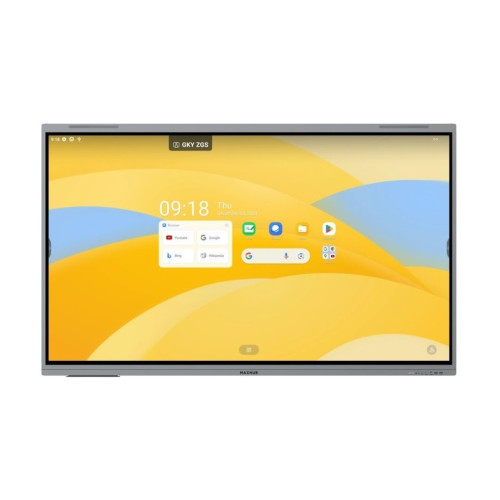

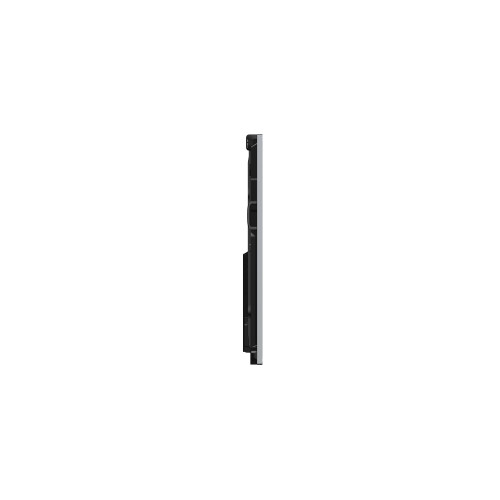

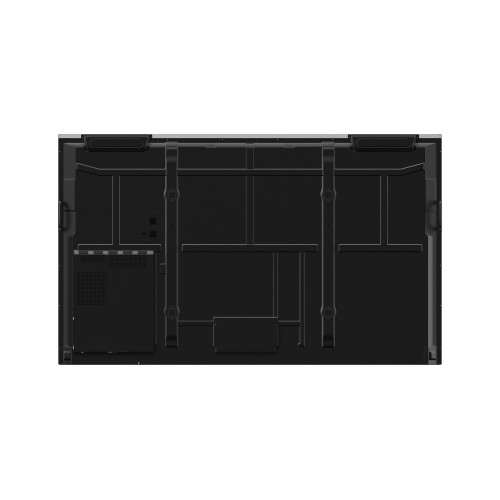

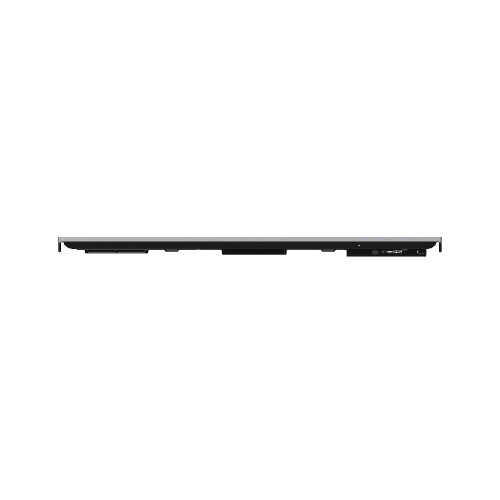

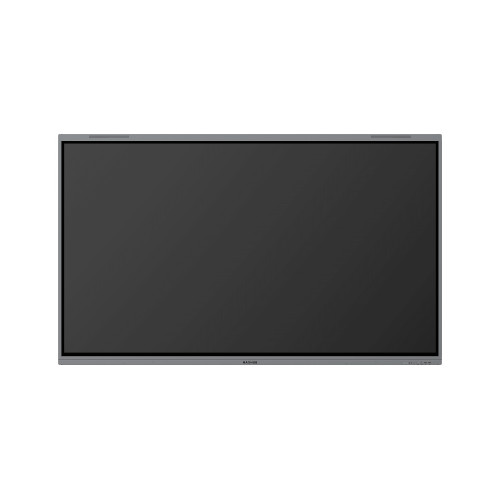

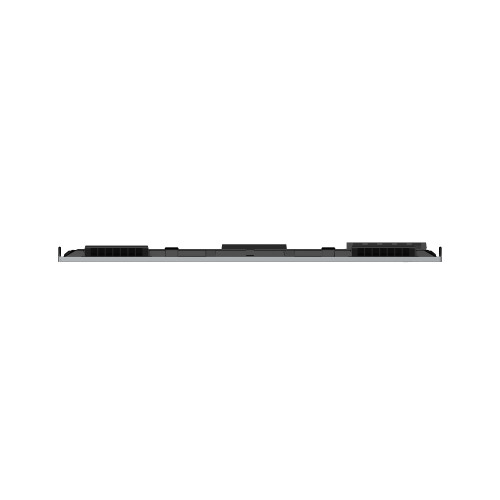

MAXHUB E8630 86" Education E3 Series Interactive Display

MAXHUB E8630 shines as an exceptional choice, tailored specifically for educational environments. It features a secure operating system for seamless integration with Google apps and accounts. The AI-powered SoC ensures smooth performance, while the advanced touchscreen allows for natural and precise writing. With versatile connectivity options, teachers can easily share content from multiple devices. MAXHUB E8630 enhances classroom collaboration and engagement, making it the perfect choice for educators and students.

Key Features & Benefits:

• Prominent 4K display: 10-bit color, high color accuracy, ∆E≤1
• SkyWave Sound System: 2.2 channel speaker, 2× 8W + 2× 18W output
• Peak Performance: Octa-core CPU, independent NPU, 8GB RAM, 128GB ROM
• Precious Touch: MAXHUB Think&Ink Technology, 40 touch points, ±1.5 mm touch accuracy
• Classroom Care: Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification
• Unparalleled Compatibility: Android 14 system, Google EDLA certificated
• Convenient Connectivity: Full function USB-C, integrate, 65W PD, video, audio, touch & internet access features
• Comprehensive Software Suite: MAXHUB EDU OS V4, extensive education-tailored applications

Software:

• System OS: MAXHUB EDU OS V4
• Whiteboard Tool: MAXHUB Class Pro
• Screen Sharing: MAXHUB Connect
• Device Management: MAXHUB Pivot
• Google Apps: Google Play, Google Drive, Google Meet, Google map, YouTube, etc.
• Other Apps: Browser, Cloud Drive, Note, Palette, WPS Office, etc.

Specifications:

• Model: E8630
• Diagonal size: 86 inch
• Display Area: 1895.04 (H) × 1065.96 (V) mm
• Aspect ratio: 16:9
• Resolution: 3840 (H) × 2160 (V)
• Panel type: IPS
• Viewing angle (H/V): 178°
• Screen Level: A-Level
• Panel Brightness: 400 nits (typ.) / 450 nits (max.)
• Contrast Ratio: 3,000:1 (typ.) / 50,000:1 (dynamic)
• Color depth: 1.07B (10bit)
• Color Gamut (typ.): 98% sRGB
• Color Accuracy: ΔE≤1
• Glass: Zero parallax, 3 mm thickness, 9H tempered
• Surface Technology: Anti-glare, 25% haze
• Sensor: Ambient light and color temperature sensor
• Eyes Care: TÜV Flicker Free, TÜV Low Blue Light
• Refresh Rate: 60Hz
• Response Time: 8 ms
• Backlight Unit: DLED
• Backlight Life (typ.): ≥ 60,000 Hours

Touch System:

• Touch Technology: Infrared recognition
• Touch Point: 40 points touch
• Object Recognition Range: 3 mm
• Accuracy: ± 1.5 mm
• Response Time: ≤ 5 ms
• Writing Height: ≤ 2 mm
• MAXHUB Think&Ink
• System (Touch Return):
  - Windows11/Windows10/Windows8/Windows7
  - Android/Linux/Mac OS X/Chrome

Built-in System:

• Operating System: Android 14.0
• Certification: Google EDLA certification
• RAM: 8GB / ROM: 128GB
• SoC Process: 8 nm
• CPU: A72×4+A53×4 octa-core, 2.2GHz
• GPU: Mali G52 MC3
• NPU: 6 TOPS

Connectivity:

Input:

• 3x HDMI IN Up to 4K@60Hz, HDCP 1.4&2.2&2.3, CEC
• 1x USB 2.0 For system upgrades
• 4x USB 3.0 (Front ×2, Rear ×2)
• 2x Touch (2.0 ×1, 3.0 ×1)
• 2x USB Type-C for Video and audio transmission, touch, charging, LAN network sharing (Front: up to 65W PD, Rear: up to 15W PD)
• 1x DP IN 4K@60Hz, HDCP 1.4&2.2&2.3
• 1x AUDIO IN 3.5 mm Jack
• 1x VGA IN Up to 1080P@60Hz
• 1x RS232 Baud rate 9600
• 1x RJ45 IN (10/100/1000Mbps)
• 1x TF Card Port Expandable up to 1TB

Output:

• 1x HDMI OUT Up to 4K@60Hz
• 1x AUDIO OUT 3.5 mm Jack
• 1x SPDIF PCM output format
• 1x RJ45 OUT (10/100/1000Mbps)

OPS & Wireless Connection:

• 1x OPS Module slot
• 1x Wi-Fi Module Slot:
  - Wi-Fi Module (SI07B)
  - Wi-Fi 6 supported 802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz
• Bluetooth: 5.2

Audio:

• Audio System: SkyWave Sound System
• Sound Channel: 2.2
• Speaker Power:
  - 2× 8W + 2× 18W (output)
  - 2× 12W + 2× 25W (maximum)
• Sound Pressure Level: 88 dB (1W, 1m)

Power:

• Power Supply: AC 100-240V~ 50/60 Hz 4.5A
• Power Consumption (standby): ≤ 0.5W
• Power Consumption (typ.): 190W
• Power Saving: Energy Star Certification

Environmental:

• Operating Temperature: 0℃～40℃
• Storage Temperature: -20℃～60℃
• Operating Humidity: 10%-90% RH
• Storage Humidity: 10%-90% RH
• Altitude: Below 5000 meters
• Dust Resistance: IP5X-rated

Physical Specifications:

• Dimension (L×H×D): 1959×1179×100 mm
• Net Weight: 52.45 kg
• Shipping Dimension (L×H×D): 2110×1305×225 mm
• Gross Weight: 69.00 kg
• Thickness of Machine and Wall Mount: 129 mm (WIB9060H)
• Wall-hanging Screw: M4×14 mm

Included Accessories:

• 1x Power Cord (3m)
• 1x HDMI Cable (3m)
• 1x Remote Control
• 2x Stylus
• 2x Display Bracket
• 1x Wall Mount Bracket WIB9060H
• 1x Wi-Fi Module SI07B

Available Optional Modules & Accessories:

• UC W31 USB Camera
• UC S07 Video Bar
• OPS62A/OPS72A PC Modules
• WL10C Sensor Box
• ST33M/ST23G Mobile Stands
