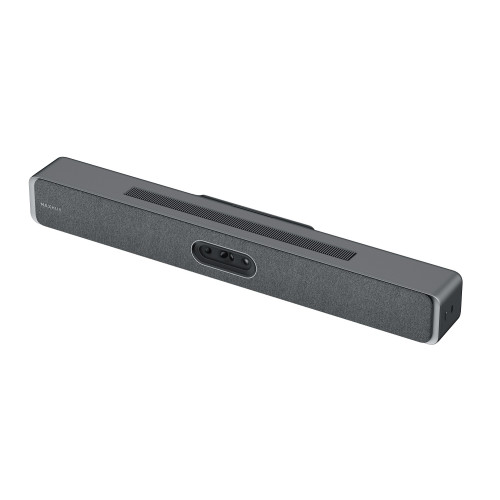

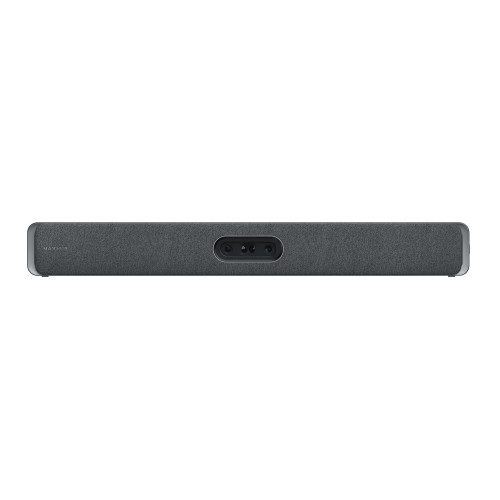

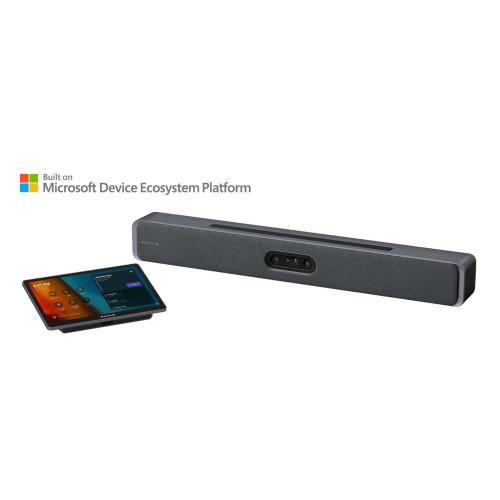

MAXHUB XBar V70 Kit For Microsoft Teams Rooms, includes one XBar V70 MEDP Videobar and one AP30 Touch Panel

The MAXHUB XBar V70 is an all-in-one Android-based videobar designed for premium medium to large meeting rooms. Equipped with a 200MP quad-camera system and studio-grade dual speakers, it delivers exceptional audiovisual performance. Enhanced by AI noise reduction, the built-in 16-microphone array ensures crystal-clear audio experience. It can eliminate background interference like keyboard clicks or air conditioning. Featuring a dedicated AI chipset, the XBar V70 supports advanced functionalities including Auto Framing, Speaker Tracking, Intelligent Focus and Smart Gathering. Its plug-and-play deployment simplifies installation and remote maintenance, while design for Microsoft Device Ecosystem Platform (MDEP) ensures seamless integration.

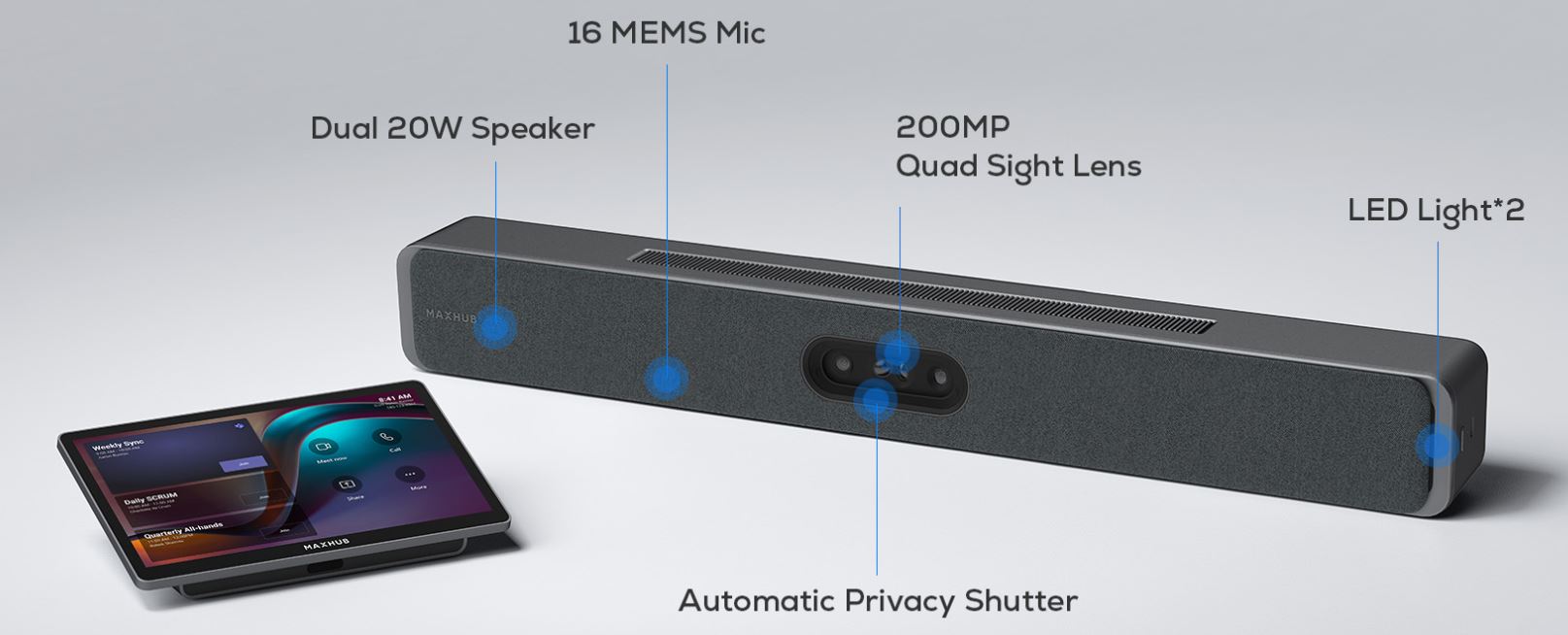

Key Features & Benefits:

• 200MP Camera System: Ultra-high-resolution camera system redefines image clarity and spatial adaptability
• Quad Sight Lens: Ultra-wide 125° HFOV Dual telephoto lens for close-up tracking
• AI-Powered Technology: Auto Framing Speaker Tracking Smart Gathering Intelligent Focus
• AI Noise Reduction: Noise Reduction Echo Cancellation Anti-Reverberation AGC Algorithm
• Extended Capability: Can connect to both third-party device and exclusive MAXHUB device
• Studio-Grade Dual Speakers: Dual 20W Stereo Sound Full Frequency Quad Passive Radiator
• BYOD Mode: Connect to your PC with a single USB cable for BYOD meeting
• Cloud Device Management: Remotely monitor device status through cloud-based service (MAXHUB Pivot) via an internet connection
• 3 Year Warranty

XBar V70 Kit Package Contents:

• XBar V70 (With Accessories) x1
• Panel AP30 (With Accessories) ×1

Content Sharing:

• Teams (In Meeting): 1080p@30
• Local Sharing (Type-C): 4K@30
• Local Sharing (HDMI): 4K@30

Physical Specifications:

• Package Dimension (L×W×H): 985 × 290× 275 mm
• Gross Weight: 11.7 kg

Control and Management:

• Microsoft Device Management Platform (Microsoft Teams Admin Center/Intune/Pro management portal), MAXHUB Pivot

XBar V70 Kit Specifications:

Camera:

• Camera Quantity: 4
• Pixel: 50MP ×4
• Sensor: 1/1.55 inch
• Aperture: F/2.4

Resolution & Frame Rate:

• H.264 / MJPEG: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720, 1024 × 576, 960 × 540, 800 × 600, 640 × 360.
• YUY2: 1920 × 1080, 1280 × 720, 640 × 360
• ZOOM: 8x hybrid Zoom
• Wide Camera: 130° (D), 125° (H), 50° (V)
• Telephoto Camera: 52° (D), 42° (H), 32° (V)
• Privacy Shutter
• Electric and automatical lens shutter
• AI Feature:
  - Auto Framing
  - Speaker Tracking
  - Intelligent Focus
  - Smart Gathering
  - Video Fence

Audio:

• Speaker:
  - Speaker Quantity: 2
  - Sound Channel: 2.0
  - Total Power (Max.): 20W + 20W
  - Sound Pressure (Max.): 88dB (+/-2dB) SPL@1W/ 1/2meter
  - Frequency Range: 80 Hz ~ 20 KHz
• Microphone:
  - Microphone Quantity: 16-mic array
  - Pickup Range: 10 m
  - Frequency Range: 20 Hz ~ 16 KHz
  - Sensitivity: -36 ± 1 dBFS
  - Sampling: 48 KHz
  - Expansion: Supports 2 expansion microphones
• AI Feature:
  - Noise Reduction
  - Echo Cancellation
  - Anti-Reverberation
  - AEC (Acoustic Echo Cancellation)
  - ANS (Automatic Noise Suppression)
  - AGC (Automatic Gain Control)
  - Full-duplex

Operating System:

• MDEP Supported
• OS Andriod 13

Network:

• Wi-Fi: Wi-Fi 6, 2×2 MIMO
• Wi-Fi Protocol: 802.11 a/ b/ g/ n/ ac/ ax
• Working Band: 2.4 GHz + 5 GHz
• Bluetooth: 5.2 + BLE
• Network: 1000 Mbps

Power:

• Power Adapter AC 100-240V Input and DC 19V/4.5A Output

I/O Port:

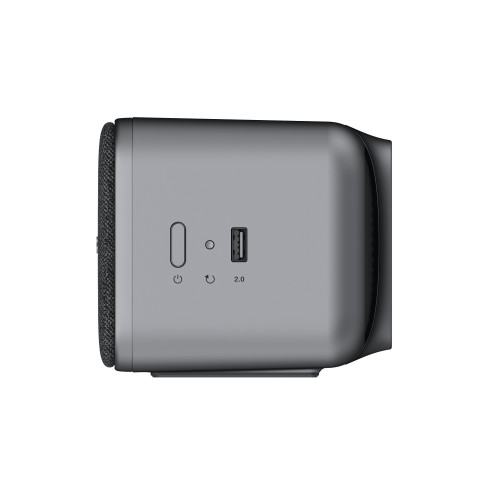

• 1x USB-A (2.0): For firmware update and debug
• 1x HDMI In: Up to 4K@60Hz
• 2x HDMI Out: Up to 4K@60Hz, CEC supported
• 1x USB-B 3.0 (Device): For BYOD Mode
• 1x DC In: For 19V power supply
• 1x Audio In: To connect third-party device for audio input
• 1x RJ45 (Internet): For network connection
• 1x RJ45 (M Link): To connect to the panel
• 1x RJ45 (Ext): To connect MAXHUB exclusive accessories (microphone, camera, etc.)
• 1x USB-A (3.0): For firmware update and debug
• 1x Audio Out: To connect third-party device for audio output

Physical:

• Unit Dimension (L×W×H): 840.6 × 117.6 × 104 mm
• Net Weight: 4.3 kg
• Package Dimension (L×W×H): 962 × 169 × 246 mm
• Gross Weight: 7.0 kg
• Standard Accessories:
• 1x Power Adapter
• 1x AC Cable (1.5 m / 4.9 ft)
• 1x HDMI Cable (3 m / 9.8 ft)
• 1x Ethernet Cable (3 m / 9.8 ft)
• 1x Mounted Components

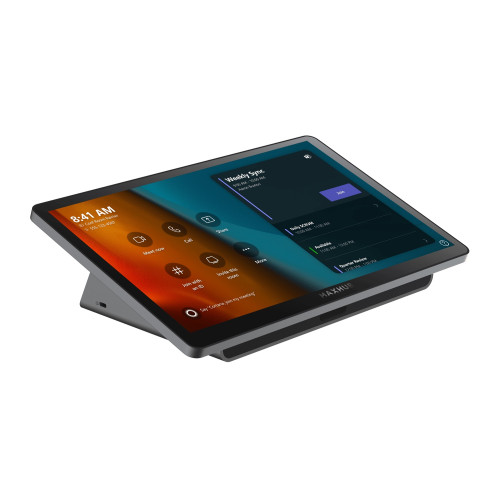

Touch Panel AP30 Specifications:

• Display Size: 11.6 inch Capacitive touch
• Surface Treatment: Anti-fingerprint, Anti-glare
• Resolution: 1920 × 1080
• Frequency Refresh Rate: 60 Hz
• Backlight Unit: ELED
• Brightness With Glass:
• 250 nits (Min.)
• 300 nits (Max.)
• Life Time: ≥ 20000 hours

Operating System:

• MDEP Supported
• OS Andriod 13

Power:

• Power Input: 19V DC 4.5A
• Power Output: Type-C PD 65W (Max.)
• Motion Sensor: PIR sensor for automatic wake-up

I/O Port:

• 1x RJ45 (Internet)
• 1x RJ45 (Ext)
• 1x DC In (Power)
• 1x Type-C (Ingest)
• 1x USB 2.0 (Pairing Wireless Dongle)

Standard Accessories:

• 1x Type-C Cable (1.5 m / 4.92 ft)
• 1x Ethernet Cable (7.5 m / 24.61 ft)
• 1x Screwdriver
• 1x Power Adapter
• 1x AC Cable (1.5 m / 4.9 ft)

Physical:

• Unit Dimensions (L×W×H) 278 × 164 × 82.4 mm
• Unit Weight: 1.16 kg
• Package Dimensions (L×W×H):
• 570 × 246 × 101 mm (1 pcs)
• 590 × 440 × 280 mm (4 pcs)
• Package Weight: 3.12 kg (1 pcs)
