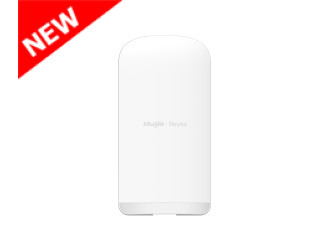

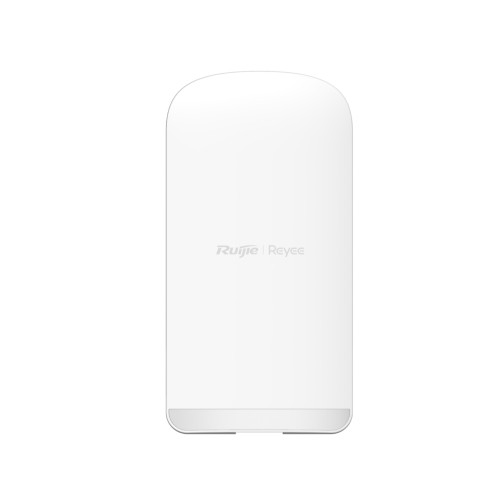

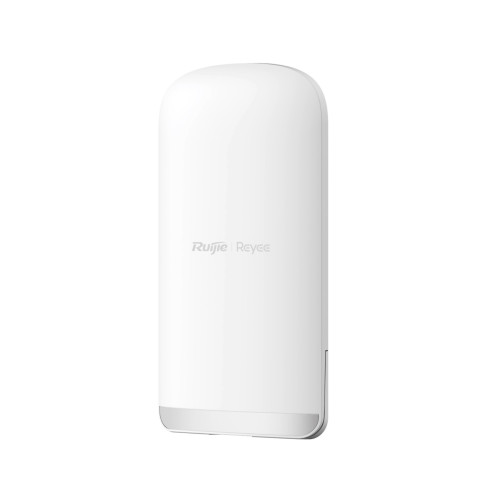

Ruijie-Reyee RG-EST330F-P 5 GHz PTP/PTMP Outdoor Wireless Bridge with 3x 10/100 Mbps Ports, includes Passive PoE Injector

The Ruijie Reyee RG-EST330F-P is a 3 km, 13 dBi IEEE 802.11ac-compliant 5 GHz PTP/PTMP outdoor wireless bridge, ideal for applicationssuch as video surveillance backhaul and remote data transmission in scenarios covering elevators, tower cranes, factories, campuses, and construction sites. This bridge operates on the 5 GHz frequency band and supports 2x2 Multiple Input Multiple Output (MIMO) with two spatial streams, delivering a maximum wireless throughput of 867 Mbps for bridging applications. This meets users' bandwidth demands for data links. Additionally, the RG-EST330F-P supports the IEEE 802.11n standard, offering a maximum data rate of 150 Mbps on the 2.4 GHz band, which is ideal for remote device management. The RG-EST330F-P also supports IEEE 802.3af-compliant PoE and features two PoE-out ports, with a total output power of 15.4 W.

Highlight Features:

• 3x 10/100BASE-T auto-negotiation ports (2 with IEEE 802.3at PoE Out support)
• Supports 3 power supply options: 802.3af/at, Passive PoE, DC
• Supports TDMA
• Supports Self-Organizing Network
• 3 Year Warranty

Hardware Specifications:

• Model: RG-EST330F-P
• Radio Design:
  - 2.4 GHz: single-stream
  - 5 GHz: dual-stream 2x2 MIMO
• Protocol and Standard:
  - 5 GHz: 802.11ac/n/a
  - 2.4 GHz: 802.11b/g/n
• Operating Frequency Bands:
  - 2.4 GHz: 802.11 b/g/n: 2.400 GHz to 2.483 GHz
  - 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
• Antenna Type:
  - Built-in antenna (horizontal/vertical): 30°/30°
• Antena Gain:
  - 2.4 GHz: 2 dBi
  - 5 GHz: 13 dBi

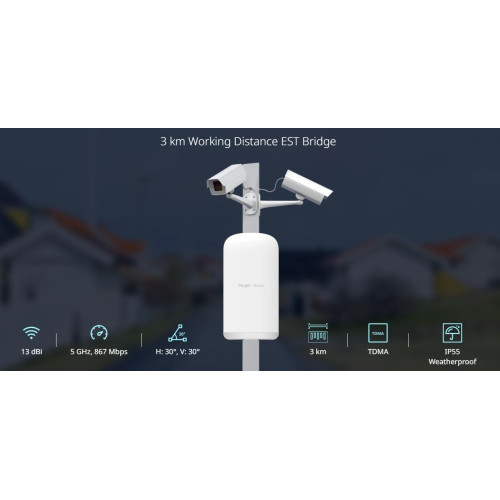

• Working Distance: 3 km (3.11 mi)
• Data Rate:
  - 2.4 GHz: 150 Mbps
  - 5 GHz: 867 Mbps

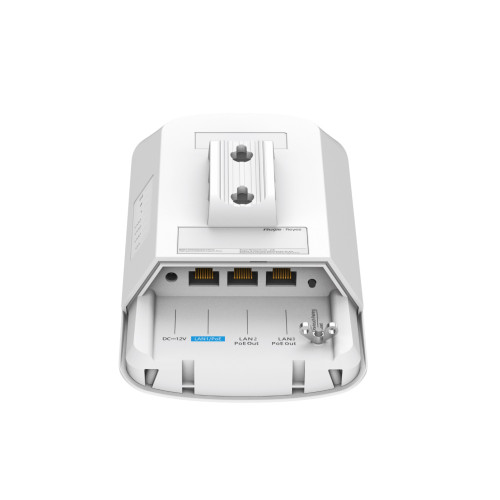

• Service Ports:
  - 3x 10/100BASE-T auto-negotiation ports
  - LAN2 & LAN3 Ports support IEEE 802.3at PoE output
• Buttons: 1x Reset/One-Touch Pairing button

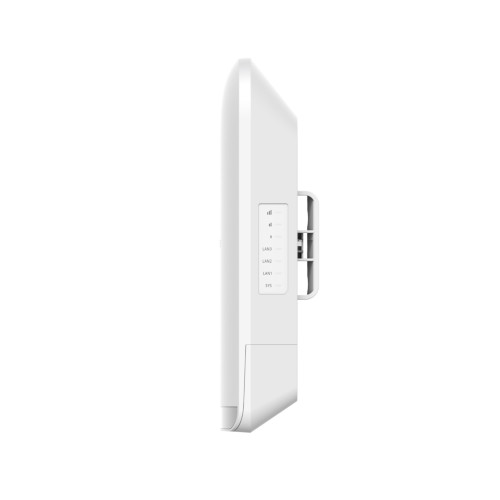

• LED: 1x system LED, 3x port LEDs, and 3x signal LEDs

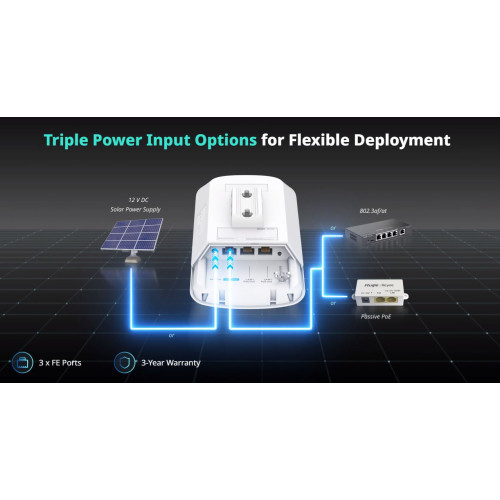

• Power Supply:
  - 24 V passive PoE power supply (A passive PoE injector is delivered with the wireless bridge)
  - 12–24 V DC power supply (supplied with a 24 V DC power adapter)
  - 12 V DC (solar panel)
• Max. Power Consumption: < 9 W (without PoE Out)
• Modulation Technology:
  - OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16-QAM@24 Mbps, 64-QAM@48/54 Mbps
  - DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, [email protected]/11 Mbps
  - OFDM: BPSK, QPSK, 16QAM, 64QAM
• Receive Sensitivity:
  - 11b: –91 dBm (1 Mbps), –88 dBm (5 Mbps), –85 dBm (11 Mbps)
  - 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
  - 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
• Max. Transmit Power:
  - 2.4 GHz: 100 mW
  - 5 GHz: 400 mW (26 dBm) (single stream)
• Power Step: 1 dBm

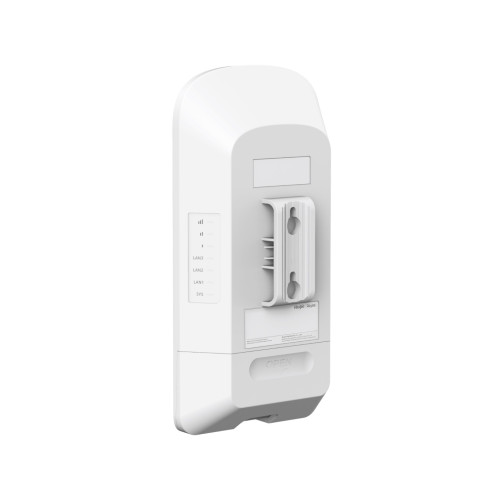

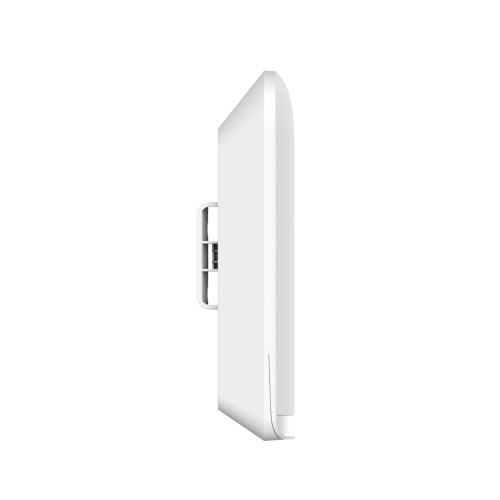

• Mounting:
  - Wall-mount
  - Pole-mount
• IP Rating: IP55
• Certification: CE
• MTBF: > 400.000 hours

Environmental:

• Operating temperature: –30°C to +65°C
• Storage temperature: –40°C to +85°C
• Operating humidity: 5% RH to 95% RH (non-condensing)
• Storage humidity: 5% RH to 95% RH (non-condensing)

Dimensions & Weight:

• Dimensions (WxDxH): 198.8 x 102 x 53.4 mm (excluding the mounting bracket)
• Weight:
  - 0.37 kg (excluding packaging materials)
  - 0.91 kg (including packaging materials)

Package Contents:

• 1x RG-EST330F-P wireless bridge
• 1x DC power adapter 24 V/1.5 A
• 1x Passive PoE Injector
• 2x Band clamps
• 1x Screw kit (including four screws and four wall anchors)
• 1x Mounting template
• 1x Quick Start Guide
• 1x Warranty Card
