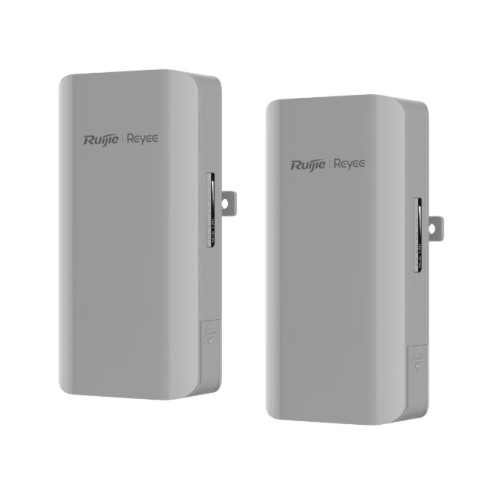

Ruijie-Reyee RG-EST310 V2 5GHz 10dBi Single-band Dual-stream 802.11ac Outdoor Wireless Bridge, includes PoE Adapters

Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services. The RG-EST310 V2 consists of 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end. RG-EST310 V2 can be managed via the app, including viewing the network topology and modifying configurations, which has completely revolutionized the conventional contact-type bridge configuration method. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. With the four-sided curved edges design, RG-EST310 V2 fully utilizes the compact size and offers an exquisite exterior design. Straps are provided for easy equipment installation. The casing of the device is optimized to deliver better dustproof and waterproof performance, providing IP65 protection. The weather-resistant materials enable the casing to stay robust for a long time under harsh conditions such as exposure to the sun, wind, acid and alkali corrosion. Moreover, the wide temperature range of the industrial materials adopted for the device fully guarantee the reliability and durability of the device under various complex environments such as hot and humid weather, dry and cold weather, sun exposure, rain, strong winds, etc.The device is capable of effectively withstanding the impact of bad weather or harsh environments, offering high stability while significantly reducing construction and installation difficulties. The device is built-in with wireless product management software WSP-EST310. Users can view all wireless bridge information and the topology by logging in to any bridge device

Highlights:

• RG-EST310 V2 provides stable traffic transmission from 1 km away
• Factory-paired, auto-rebridge upon power restoration
• IP54 Weatherproof, -30℃~55℃ ensures stable operating
• Cost-effective wireless solution for elevator CCTV to avoid cable loss
• 3 Year Warranty

Key Features & Benefits:

• Product Type: Bridge
• 5 GHz: 2x2 Built-in directional antenna, horizontal: 60°, vertical: 30°
• Antenna gain (5 GHz): 10 dBi
• Antenna horizontal orientation: 60°
• Antenna vertical orientation: 30°

System Specifications:

• CPU: Single-core processor, 575/580 MHz clock frequency
• Flash memory: 8 MB
• RAM: 64 MB DDR2

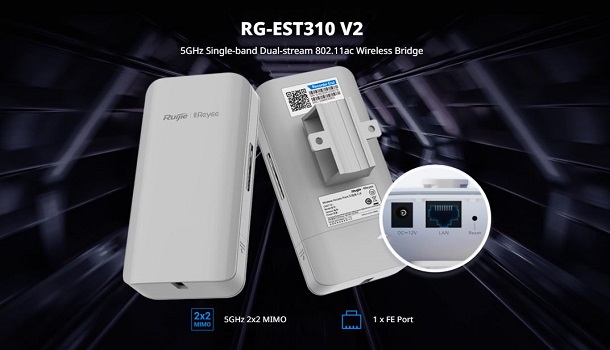

Port Specifications:

• Number of fixed LAN ports: x1
• Number of 10/100BASE-T ports: x1
• Reset button: x1
• Number of PoE In ports: x1
• LEDs:
  1x system status LED
  1x Ethernet port LED
  3x signal status LEDs

Power Supply & Consumption:

• Power supply options: DC power adapter/Passive PoE injector
• Passive PoE injector:
  - Rated input voltage: 100V AC to 240V AC, 50 Hz to 60 Hz
  - Rated input current: 0.5 A Max
  - Rated output voltage: 24 V DC
  - Max. output current: 0.6A
• Local power supply: one DC power connector (12V, 1A)
• Dimensions of the DC connector:
  - Outer Diameter: 5.50 mm ± 0.05 mm
  - Inner Diameter: 2.10 mm ± 0.05 mm
  - Depth: 9 mm
• Max. power consumption: 7W

Radio design:

• Single-radio
• 2 spatial streams
• Radio 1: 5 GHz, 2 spatial streams: 2 x 2, MIMO
• Operating band:
  IEEE 802.11a/n/ac: 5.150 GHz to 5.350 GHz
  IEEE 802.11a/n/ac: 5.470 GHz to 5.725 GHz
  IEEE 802.11a/n/ac: 5.725 GHz to 5.850 GHz
• Wi-Fi standard: Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/n standards
• 5 GHz Wi-Fi: Wi-Fi 5 (IEEE 802.11ac)
• 5 GHz channel width: Auto/20/40/80 MHz
• Transmission rate:
  - Max, wireless data rate: 866 Mbps
  - Radio 1: 5 GHz, 866 Mbps
• Max. transmit power: EU & UK:
  2400 - 2483.5 MHz, EIRP ≤ 20 dBm
  5470 - 5725 MHz, EIRP ≤ 30 dBm
• Max. transmit power (5 GHz): Combined power: 29 dBm (single stream power: 26 dBm)
• Receive sensitivity:
  802.11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
  802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
  802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
  802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9)
  802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
• Modulation:
  802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Highest QAM order: 256

IP Service:

• IPv4 ping
• IPv4 traceroute
• DHCP server
• DHCP client

Ethernet Switching: Interface rate: 10/100 Mbps auto-negotiation, VLAN
Security: Broadcast storm control

Network Management & Monitoring:

• SON
• Network-wide management SSID configuration

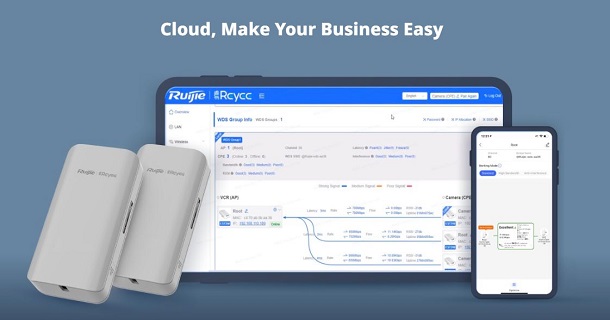

• Ruijie Cloud management
• Restarting devices through Ruijie Reyee App
• Fault diagnosis: support for network tools (ping, traceroute, and nslookup), fault alarms, and fault collection

Basic Configurations:

• eWeb login with the username and password
• Local upgrade
• Configuration backup
• System language
• System time settings

WLAN:

• BaseStation/CPE mode switching
• Bridge SSID hiding
• WPA2-PSK encryption
• Recommended channel
• Bridge speed test
• Configuring a security key for network-wide bridges
• Configuring a security key for a single bridge group
• Configuring a security key for a single bridge
• Bridge SSID, channel, and power configuration
• WMM
• Max. PTMP connections: x5
• Max. bridge distance: 1 km (0.62 miles)
• One-touch pairing
• Max. effective distance of one-touch pairing: 20 m (65.62 ft.)
• Bridge performance:
  90 Mbps/100 m (328.08 ft.) (HT40)
  80 Mbps/500 m (0.31 miles) (HT40)
  80 Mbps/1 km (0.62 miles) (HT40)
  40 Mbps/2 km (1.24 miles) (HT40)
• RSSI:
  -52 dBm/100 m (328.08 ft.)
  -65 dBm/500 m (0.31 miles)
• Recommended number of connected cameras (3 Mbps):
  16/100 m (328.08 ft.)
  16/500 m (0.31 miles)
  16/1 km (0.62 miles)
    6/2 km (1.24 miles)
• Recommended number of connected cameras (4-5 Mbps):
  10/100 m (328.08 ft.)
  10/500 m (0.31 miles)
  10/1 km (0.62 miles)
    4/2 km (1.24 miles)
• Recommended number of connected cameras (6-7 Mbps):
  7/100 m (328.08 ft.)
  7/500 m (0.31 miles)
  7/1 km (0.62 miles)
  3/2 km (1.24 miles)
• Recommended number of connected cameras (7-8 Mbps code streams):
  5/100 m (328.08 ft.)
  5/500 m (0.31 miles)
  5/1 km (0.62 miles)
  2/2 km (1.24 miles)
• Real-time signal strength
• Optimal signal strength
• Active/Standby channel
• Restoring to the active channel
• Max. number of devices on the SON: 200

Environment & Reliability

• Device Color: Gray
• Mounting options: Wall/Pole
• Operating temperature: -30°C to 55°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 5% to 95% (non condensing)
• Storage humidity: 5% to 95% (non condensing)
• Operating altitude: -500 m to +5,000 m
• Storage altitude: -500 m to +5,000 m
• MTBF: 400,000 hours (about 45 years)
• ESD protection: Standard test: contact discharge=8 kV, air discharge=15 kV, Class B
• Surge protection:
  - Service port: ±6 kV for common mode
  - Power connector: ±4 kV for common mode and ±2 kV differential mode
• Cooling: Natural cooling
• IP rating: IP54

Dimensions & Weight:

• Unit Dimensions (DxWxH): 147 × 76 × 37mm (excluding mounting bracket)
• Unit Weight: 0.20 kg
• Package Dimensions (Wx DxH): 251 x 268 x 68mm
• Package Weight: 1.08 kg

Certification & Regulatory Compliance:

• Safety compliance: EN62368-1
• EMC: EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1, EN 301489-3, EN 301489-17
• Certification: CE, FCC, CB, ISED, cTUVus

 PartnerNet-Ruijie Reyee RG-EST310 V2 5GHz Dual-stream 802.11ac 1km Wireless Bridge Datasheet

Package Contents:

• 1x RG-EST310 V2 Wireless Bridge (Devices x2)
• 2x 24V Passive PoE adapters
• 2x Power cords
• 4x Cable ties
• 2x Mounting brackets
• 8x Phillips pan head screws (self-tapping screws 4.2 mm x 19 mm)
• 1x User Manual
• 1x Warranty Card













































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Wireless Bridge
Τεχνολογία	802.11ac
Aggregate Wireless Throughput	867Mbps
Antenna	Single-band 2x2 MIMO
Bridging Distance	1 Km
Embedded Controller	ΝΑΙ
Ethernet Port	10/100
POE	ΝΑΙ
Wireless	ΝΑΙ
Εγγύηση	3 Χρόνια
