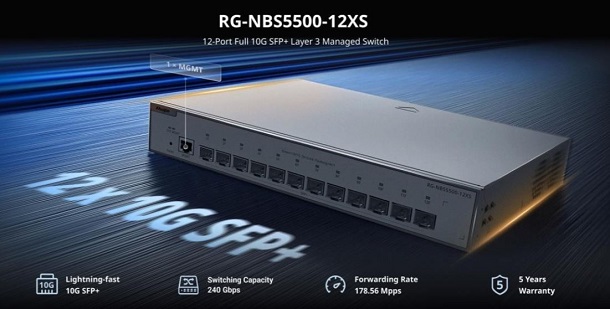

Ruijie RG-NBS5500-12XS 12-Port Full 10G SFP+ Layer 3 Managed Switch

The RG-NBS5500-12XS is a high-performance and high-capacity Ethernet switch featuring an enhanced MAC table size, faster hardware processing speeds, and a user-friendly experience. With 12x 10G SFP+ ports, this switch delivers high-density, high-performance connectivity suitable for both access and aggregation purposes. The RG-NBS5500-12XS offers exceptional value for small to medium-sized networks, providing high performance and comprehensive end-to-end service quality for high-throughput Wi-Fi 7 access points (APs). Additionally, supports flexible security settings to meet the demands for speed, security, and intelligence. This switch is ideal as the central network core for small to medium-sized enterprises in campus or office environments.

Highlights:

• 12-port full-10G SPF+ Layer 3 managed switch

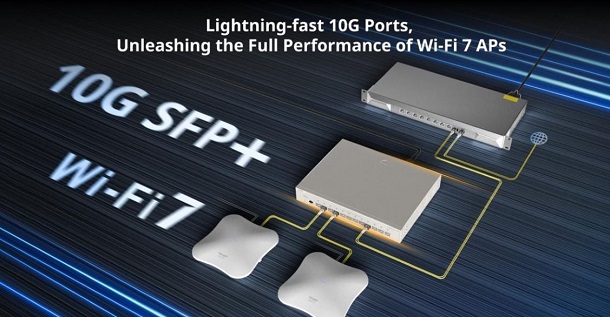

• Lightning-fast 10G ports, unleashing the full potential of Wi-Fi 7 APs

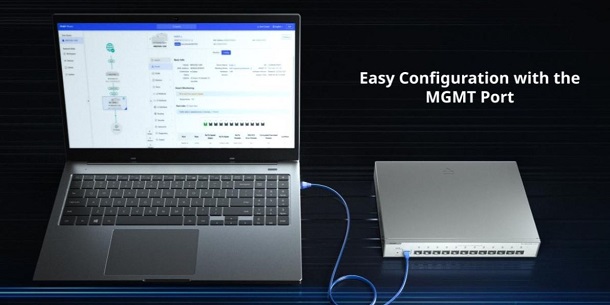

• Easy configuration with the MGMT port
• Rich Layer 3 features: VCS, static routing, RIP, OSPF, DHCP server, and so on
• Multiple security policies protect your network

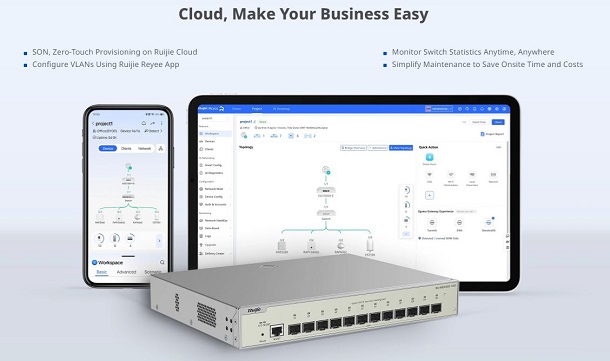

• Easy cloud management anytime, anywhere
• 5 Year Warranty

Hardware Specifications:

• 12x 10Gbps Optical Ports (SFP+)
•   1x 10/100/1000BASE-T MGMT Port
• Switching Capacity: 240 Gbps
• Forwarding Rate: 178.56 Mpps
• MAC Address Table Size: 32000
• ARP Table Size: 2000
• IPv4 Hardware Routing Table Size (Host Routing): 12000
• Static IPv4 Routing Table Size: 500
• IPv6 Hardware Routing Table Size (Required to Learn All Routes Under the Full Mesh Testing Model): 500
• Static IPv6 Routing Table Size: 500
• Number of ACEs:
  - Inbound: 1900
  - Outbound: 0
• Number of VCS Members: 2
• Single fixed power supply:
  - Rated voltage range: 100–240 V AC
  - Maximum voltage range: 90–264 V AC
  - Frequency: 50/60 Hz
  - Rated current: 2 A
• Power Consumption: 44 W
• Port Surge Protection: Common mode 6 kV
• Power Supply Surge Protection:
  - Common mode 6 kV
  - Differential mode 6 kV
• Number of Fans: 2 (Left to right airflow)
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Temperature: -40°C to 70°C
• Storage Humidity: 5% to 95% RH (non-condensing)
• Unit Dimensions (WxDxH): 300 x 232 x 44 mm
• Unit Weight: 2.26 kg
• Package Dimensions (WxDxH): 400 x 340 x 44 mm
• Package Weight: 3.04 kg
• Certification: CE, FCC, IC, CTUVUS

Software Specifications:

Ethernet Switching:

• Jumbo Frame: 9216 Bytes (Per-port MTU)
• VLAN:
  - 802.1Q VLAN
  - Port-based VLAN
  - Voice VLAN
• STP:
  - STP (IEEE 802.1D)
  - RSTP (IEEE 802.1W)
• LLDP:
  - LLDP
  - LLDP-MED

IP Service:

• ARP
• DHCP:
  - DHCP Relay
  - DHCP Snooping
  - DHCP Server
  - DHCP Client

IP Routing:

• Static Routing
• RIP:
  - RIP
  - RIPng
• OSPF:
  - OSPFv2
  - OSPFv3

Multicast:

• IGMP:
  - IGMP Snooping
  - IGMPv1 Snooping
  - IGMPv2 Snooping
  - IGMPv3 Snooping (Basic)
  - MVR Mode (MVR receiver ports can only be access ports)
  - IGMP Filtering
  - IGMP Fast Leave
• PIM-SM

ACL and QoS:

• ACL:
  - IP Standard ACL
  - MAC Extended ACL
  - IP Extended ACL
  - IPv6 ACL
• QoS: Port-Level Rate Limiting (Ingress/Egress)

Security:

• 802.1X:
  - IEEE 802.1X Authentication
  - Port-based Authentication
  - MAC-based Authentication
  - Global IEEE 802.1X Authentication Control
  - Force Authorized
  - Force Unauthorized
  - Port-based Single-Host Mode
  - PEAP Authentication for Windows 7/8/10/11 Clients
  - PEAP Authentication for macOS Clients
  - PEAP Authentication for Linux OS Clients
• Management via Web Interface:
  - Web Authentication
  - HTTP
  - HTTPS
• IP-MAC-Port Binding
• IP Source Guard
• CPU Protection Policy (CPP): Hardware CPP

Reliability:

• RLDP
• Smart Temperature Control: Fan Speed Auto-Adjustment

Device virtualization:

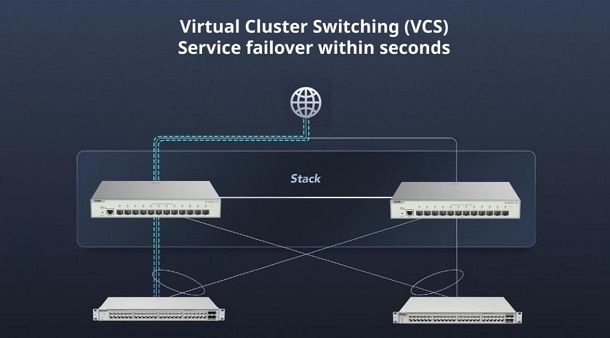

• Virtual Cluster Switching (VCS):
  - Support Inter-Chassis Hot Standby
  - Configuring 10G Ports for VCLS
  - Dual-Active Detection (DAD)

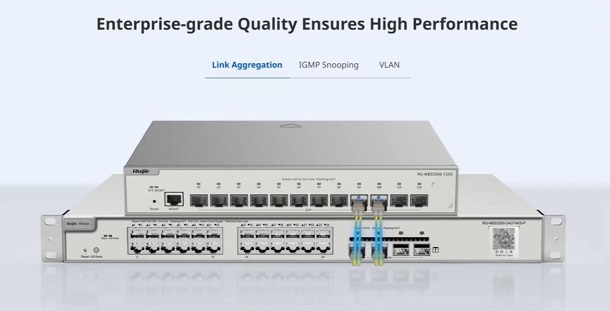

  - Cross-device Link Aggregation for Load Balancing

NMS and Maintenance:

• SPAN
• NTP Client
• SNMP v1
• SNMP v2c
• SNMP v3
• MQTT
• Self-Organizing Network
• Network Management via Ruijie Cloud
• Ruijie Cloud: View Device Details on Ruijie Cloud

Package Contents:

• 1x RG-NBS5500-12XS switch
• 2x Rack-mount brackets
• 8x M3x6 mm Phillips countersunk screws
• 1x User Manual
• 4x Rubber pads
• 1x Warranty Card
• 1x Power cord
• 1x Yellow/green ground wire
• 1x Power cord retention clip
