Ruijie-Reyee RG-NBS5100-24GT4SFP 24-Port Gigabit Layer 3 Cloud Managed Switch with 4 (1G) SFP Uplink Ports

Ruijie-Reyee RG-NBS5100-24GT4SFP is a 24-Port Gigabit Layer 3 Cloud Managed non-PoE Switch with 4x (1G) SFP Uplink Ports. The Ruijie-Reyee RG-NBS5100 series switches are a new generation of L3 access switches that integrate safety, intelligence, and Gigabit interfaces, particularly suitable for the convergence or access of campus networks. The flexible Gigabit port configuration and continuous software upgrade capability can be developed according to changes in network and application requirements to protect user investment.

Benefits:

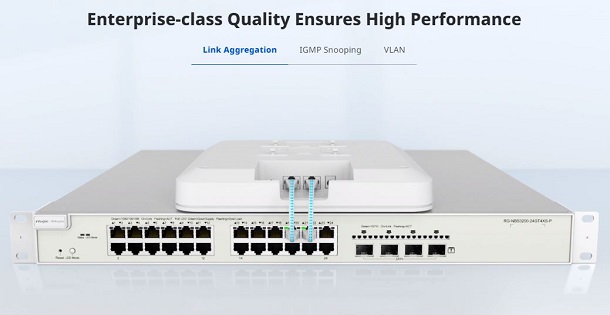

• Enterprise-class Quality Ensures High Performance
• Dynamic routing allows traffic to be routed at Layer 3
• 6KV surge protection reduces the possibility of port damage
• Multiple Security Policies Protect Your Network
• Lifetime management on Ruijie Cloud, monitor switch statistics at anytime anywhere
• SON, zero touch provisioning to Cloud

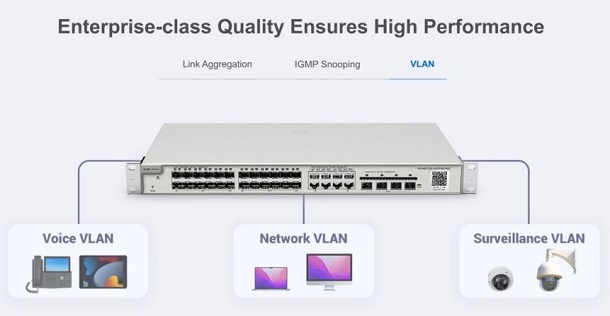

• Configure VLANs on Ruijie Cloud APP
• Easy maintainance, save onsite time and cost

Key Features:

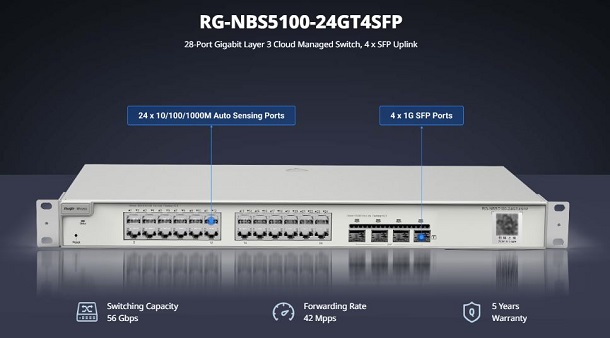

• 24x 10/100/1000Base-T Ports
• 4x SFP (1G) Uplink ports
• Layer Type: Layer 3
• Switching capacity: 56 Gbps
• MAC address table: 16000
• Forwarding rate: 42 Mpps
• Packet Buffer 12 Mbit
• Flash Memory: 256MB
• MTBF:  > 200,000
• Maximum VLAN Support 4094
• Port surge 6 kV
• Jumbo Frame (MTU): 9216
• Flow Control
• STP (IEEE 802.1d) / RSTP (IEEE 802.1w) / MSTP (IEEE 802.1s)
• Port Fast / BPDU Guard
• Auto Errdisable Recovery
• Link Aggregation Group 16
• Max. Member per Group 8
• Unknow Unicast Storm Suppression
• Multicast / Broadcast Storm Suppression
• Many-to-One Mirroring
• VLAN Range 1-4094
• Port-based VLAN / MAC-based VLAN / IP-based VLAN / Voice VLAN
• RLDP / LLDP / LLDP-MED
• Cable Testing / IGMP Snooping v1/v2/v3
• Ping / Traceroute
• ACL Entries 1900
• Static Routing
• IP Standard ACL / MAC-based Extended ACL / IP-based Extended ACL
• Port-based Rate Limit (Ingress/Egress)
• SNMP v1/v2c/v3
• OSPF / RIP / 802.1X / IPV6
• DHCP Server
• Web Management
• Management IP 10.44.77.200
• HTTP/HTTPS
• Cloud Management
• SON (Self-Organizing Network) with IP
• Camera Recognition
• Loop Prevention / Loop Notification
• Protection Port / IP Source Guard
• Anti-ARP Spoofing
• DHCP Snooping / DHCP Client
• Reset Button
• Single fixed power supply, 100-240V AC, 1.5A
• Power Consumption ≤ 28W
• Single Fan: Left-to-Rear airflow / Fan Adaptive Speed Adjustment
• Acoustic Noise < 45dB
• EEE Compliant
• CE, RoHS Certified
• Dimensions (WxDxH) 440mm x 207.5mm x 43.6mm
• Weight (With package) 3kg
• Operating temperature 0°C to 50°C
• Operating humidity 10% to 90% RH
• Operating Altitude -500 to 5000m
• 19-inch Rack-mountable Steel Case
• 5 Year Warranty

​ PartnerNet-Ruijie Reyee RG-NBS5000 Series L3 Cloud Managed Switches Datasheet

Package Contents:

• RG-NBS5100-24GT4SFP
• 2x Mounting Bracket
• 8x Screws
• 4x Foot pad
• Power cord
• Quick Start Guide
• Warranty Card
