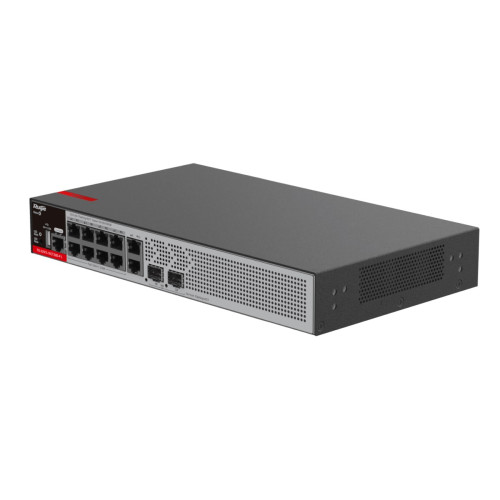

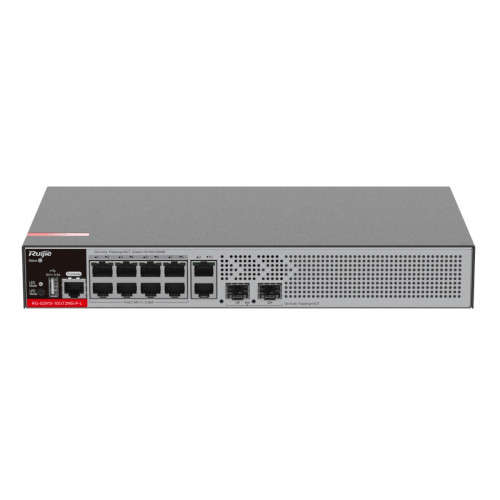

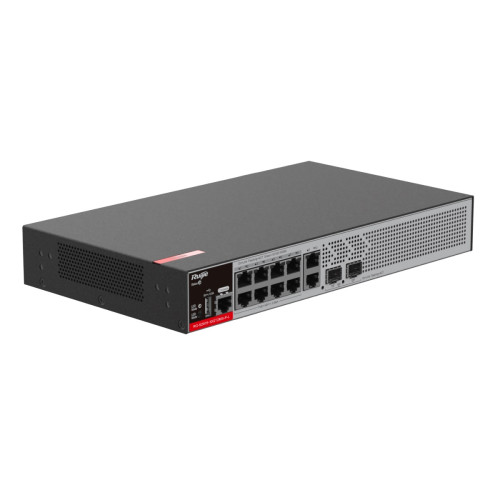

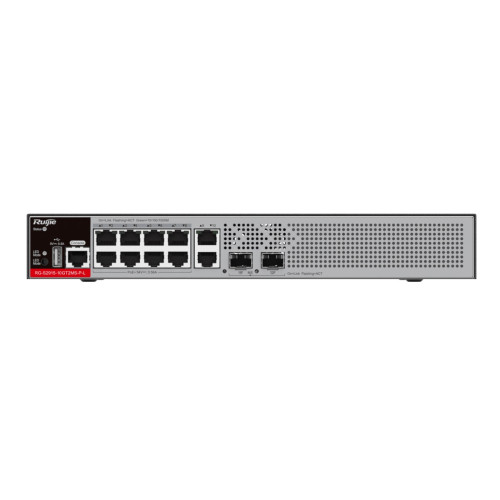

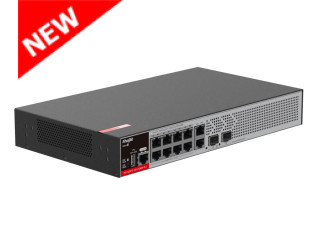

Ruijie RG-S2915-10GT2MS-P-L 10-Port 1GE RJ45 Layer 2+ Managed PoE/PoE+ Switch with 2-Port 2.5GE Uplink and 125W PoE Power budget

The Ruijie RG-S2915-L series offers next-generation cost-effective L2+ access switches specially released for campus access, ideal for commercial real estate customers, hotels and small to medium-sized enterprises. With a brand-new hardware architecture and Ruijie RGOS11.X modular operating system, they provide more resource entries, faster hardware processing performance and better user experience. The series includes PoE and non-PoE models that can meet requirements in wired networks, wireless networks, monitoring and other deployment scenarios. The RG-S2915-10GT2MS-P-L Ethernet PoE/PoE+ switch provides 1x RJ45 console port, 1x USB port, 10x RJ45 10/100/1000Base-T adaptive Ethernet ports, 2x SFP ports, 30 Gbps Switching capacity and 125W PoE Power budget

Highlights:

• 2.5GE uplinks, overcoming GE limitations, supporting diverse access types, and enabling integration into 10GE networks
• Unique CPU protection policy, ensuring stability of the switch and nonstop services

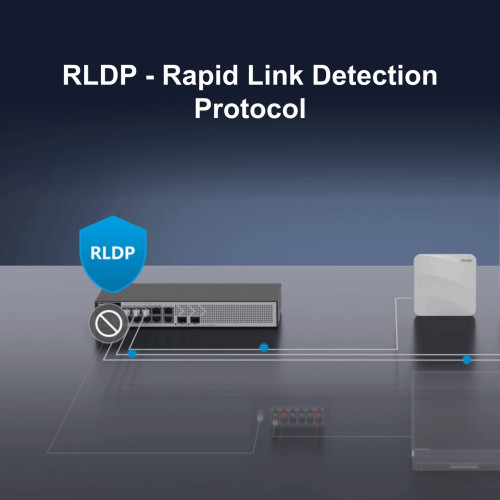

• RLDP used to provide smooth network connections

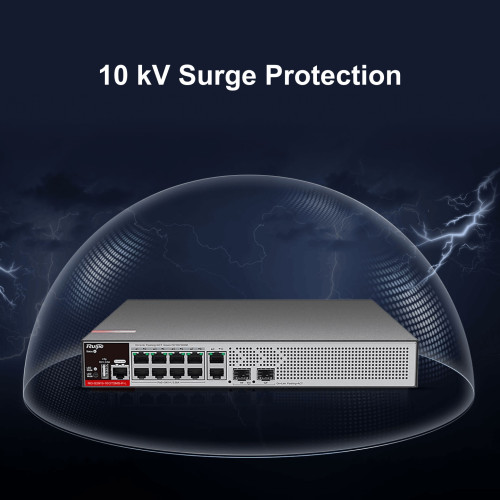

• 10 kV surge protection for ports and high reliability
• Compliance with standard protocols and application in various scenarios

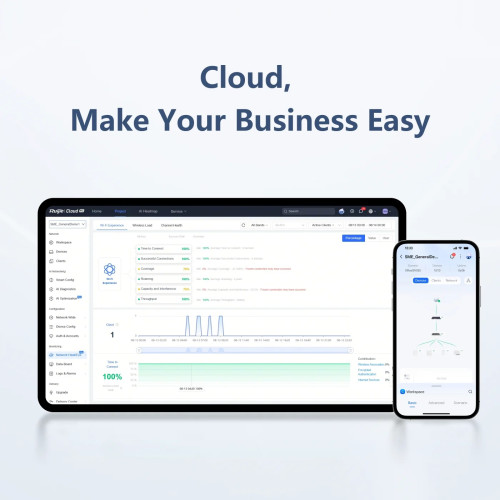

• Ease of use through Ruijie Cloud for management and remote O&M
• 3 Year Warranty

Hardware Specifications:

• Model: RG-S2915-10GT2MS-P-L
• CPU: Built-in single-core CPU, with the clock speed of 1.2 GHz
• Flash memory: 64 MB
• Memory: DDR4 512 MB
• Switch buffer: 512 KB

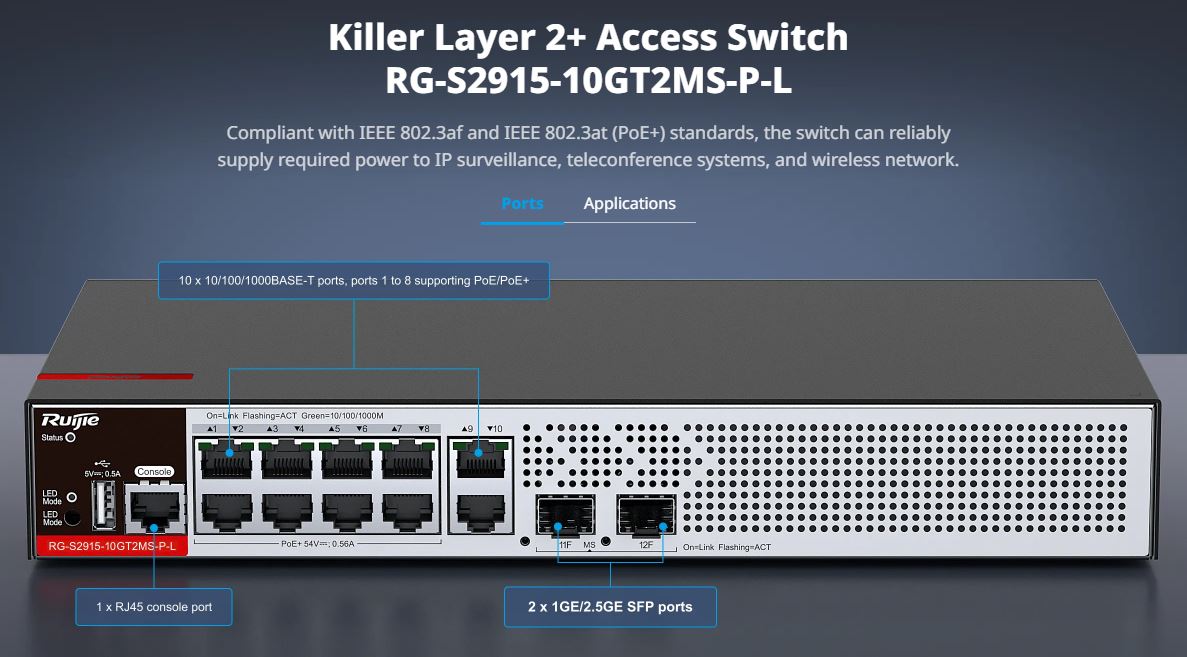

• Fixed service ports:
  10x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+ (IEEE802.3af/at)
  PoE power cable pairs: Mode A (1-2, 3-6 pairs)
  Each PoE port provides power up to 30W
  2x 1GE/2.5GE SFP ports
• Switching capacity: 30 Gbps
• Forwarding rate: 22.5 Mpps
• Capacity of MAC address table: 16000
• Transmission medium:
  1000BASE-SX (850 nm)
  1000BASE-LX (1310 nm)
  1000BASE-LH (1310 nm)
  1000BASE-ZX (1550 nm)
  1000BASE-LX (1310 nm, 1550 nm)
  1000BASE-LH (1310 nm, 1550 nm)
  2.5GBASE-LX (1310 nm, 1550 nm)
• Fixed management port: 1x RJ45 console port
• USB: 1x USB port
• Button: 1x LED mode button
• Status LEDs:
  1x system status LED
  1x LED mode indicator
  10x 10/100/1000BASE-T port LEDs
  2x 1GE/2.5GE SFP port LEDs
• Power supply: 1x fixed power supply
• Power input, AC input:
  Rated input voltage: 100V AC to 240V AC, 50 Hz to 60 Hz
  Maximum input voltage: 90V AC to 264 V AC, 47 Hz to 63 Hz
  Maximum input current: 3A
• Power cord: 10A power cord
• Maximum power consumption:
  16 W (non-PoE)
  141 W (full PoE load)
• Leakage current: ≤ 3.5 mA
• Cable hot swapping for all ports
• Energy saving:  Energy Efficient Ethernet (EEE)
• Mean time between failure (MTBF): 200,000 hours (about 22 years)
• Cooling: 1x fixed fan module
• Acoustic noise: ≤ 37 dB

Software Specifications:

• Ethernet switching:
  Jumbo frame (maximum length: 9216 bytes)
  802.3az EEE
  IEEE 802.1Q (4,094 VLANs)
  Voice VLAN
  Port based VLAN
  Basic QinQ
  Selective QinQ
  STP (IEEE 802.1.d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
  ERPS (G.8032)
  LLDP/LLDP-MED
  LACP (IEEE 802.3ad)
• IP service:
  ARP
  DHCP client, DHCP relay, and DHCP server
  DHCP snooping
  DNS
• IP routing:
  Static routing
  RIP, RIPng
  OSPFv2
• ACL and QoS:
  Standard IP ACLs
  Extended IP ACLs
  Extended MAC ACLs
  Expert-level ACLs
  ACL 80
  IPv6 ACL
  ACL redirection
  Port traffic rate limiting
  802.1p, DSCP, IP precedence traffic prioritization (IEEE 802.1p) for real-time classification
  Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
  Congestion avoidance: tail drop
  Eight priority queues per interface
• Security:
  RADIUS and TACACS+
  Port-based and MAC-based 802.1x authentication
  Web authentication
  HTTPS
  SSHv1, SSHv2
  IGMP V1,V2 snooping
  IP Source Guard
  Securitya: CPP and NFPP
• Reliability:
  RLDP
  Hot swapping of power modules and cables
  Temperature Monitoring
  Temperature Alarm
  Overtemperature Protection
• NMS and maintenance:
  RSPAN
  sFlow
  NTP
  TFTP client
  SNMP v1/v2c/v3
  CLI (telnet/console), syslog/debug, Web, MACC public cloud
  CWMP (TR-069) standard protocol
  gRPC
• PoE:
  IEEE 802.3af and 802.3at
  Uninterruptible power supply upon hot start
  Port priority
• Safety regulation: IEC 62368-1
• EMC regulation:
  EN 300386, EN 55032 Class A, EN 55035,
  EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,
  EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
• RoHS: RoHS, SJ/T 11363/11364/11365
• Dimensions & Weight:
  Unit dimensions (WxDxH): 297 x 170 x 44.5mm
  Unit weight: 2.5 kg
  Gift box dimensions (WxDxH): 580 x 450 x 50mm
  Gift box weight: 2.8 kg
  Shipping dimensions (WxDxH): 580 x 450 x 380mm
  Shipping weight: 15.98 kg
  Shipping Qty: 5pcs
• Environmental:
  Operating temperature: 0°C to 45°C
  Storage temperature: -40°C to 70°C
  Operating humidity: 10% to 90% RH (non-condensing)
  Storage humidity: 5% to 95% RH (non-condensing)
  Altitude: 0 to 5,000m
• Package Contents:
  RG-S2915-10GT2MS-P-L
  1x Power cord
  1x Grounding wire
  1x Nylon buckle
  2x Mounting bracket
  1x Mounting Bracket Installation Guide
  8x Cross recessed countersunk head screw, M4x8, GB819-85
  1x Warranty Manual and Network Product Hazardous Substance Statement
  1x Pre-installed Ruijie Networks Access Product Management Software

Typical Applications of the RG-ES2915 Series:

Serving as Access Devices on Medium- and Small-sized Networks.

The RG-S2915-L series switches feature universal adaptability and can be applied in various scenarios, including but not limited to offices of small- and medium-sized enterprises, small- and medium-sized hotels, primary and middle schools, and governments. In these scenarios, RG-S2915-L functions as an access switch to provide high-performance and large-capacity switching services. It also provides 2.5GE uplink ports and provide greater bandwidth for terminals.
