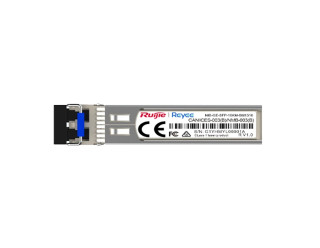

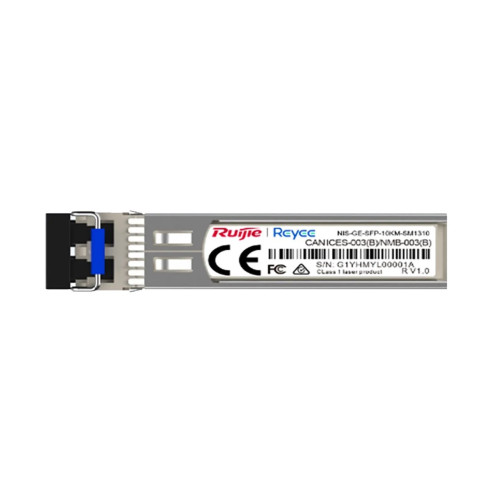

Ruijie-Reyee NIS-GE-SFP-10KM-SM1310 1000BASE-LX mini GBIC (1310nm), 10km Optical Transceiver Module

Κατασκευαστής: Ruijie
Κωδικός Προϊόντος: REYE-0167
Διαθεσιμότητα: Please Login

Ruijie-Reyee NIS-GE-SFP-10KM-SM1310 1000BASE-LX mini GBIC (1310nm), 10km Optical Transceiver Module

General Highlights:

  • Small Form-Factor Pluggable (SFP) transceiver module
  • An SFP module is an input/output (I/O) device that supports hot swapping
  • When inserted into an Ethernet interface, the SFP module can connect the port to an optical network
  • An SFP module can be considered as a small Gigabit Interface Converter (GBIC), which is why it is also called a mini-GBIC module

Specifications:

  • Product: RG-NIS-GE-SFP-10KM-SM1310
  • Standard: Long wavelength/Long distance
  • Rate: 1000 Mbps
  • Wavelength (nm): 1310
  • Fiber Type: SMF
  • DDM (Yes/No): Yes
  • Transmitter Power (dBm): Min. -9.5 / Max. -3
  • Receiver Power (dBm): Min. -20 / Max. -3
  • Connector Type: LC
  • Core Size (μm): 9/125
  • Max. Cabling Distance: 10 km
  • Operating Temperature: -40 to 85°C
  • Storage Temperature: -40 to 85°C
  • Relative Humidity: 10% RH to 90% RH (non-condensing)
  • Compatibility Brand: Ruijie-Reyee
Χαρακτηριστικά
Κατασκευαστής Ruijie
Τύπος Προϊόντος Optical Transceiver
Form Factor SFP
Fiber Type Single Mode
Transmission Distance 10Km
Connector Type Duplex LC
Compatibility Brand Ruijie
Wave Length (nm) 1310
Εγγύηση 5 Years
