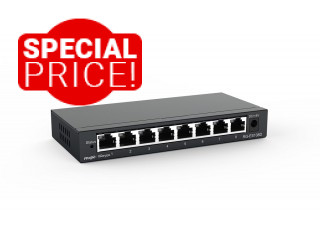

Ruijie-Reyee RG-ES108D 8-Port 10/100Mbps Unmanaged Switch

The Ruijie-Reyee RG-ES108D is an 8-Port Unmanaged Switch that offers 8x 10/100BASE-TX Downlink Ports. Video surveillance has been widely popularized, and more and higher requirements are raised for surveillance security switches that are indispensable for video data transmission. Ruijie launches the Reyee RG ES100 Series to provide customers with next-generation unmanaged surveillance security switches that feature diversified specifications, stable quality, and high-cost performance.

Key Features of the Ruijie-Reyee RG-ES108D 8-Port 10/100Mbps Unmanaged Switch:

• 8x 10/100BASE-TX Downlink Ports
• Layer Type: Unmanaged
• Switching capacity 1.6 Gbps
• Forwarding rate 1.19 Mpps
• MAC address table 2000
• Auto/Full/Half Duplex Negotiation
• Auto MDI/MDIX
• Switching model: Store-and-forward
• Cloud Management: Cloud monitoring
• Power Consumption ≤ 5W
• Surge Protection 6kV
• Fanless operation
• Power Supply 5V DC / 1A
• Operating Temperature 0°C to 40°C
• Storage Temperature -40°C to 70°C
• Operating Humidity 10% RH to 90% RH
• Storage Humidity 5% RH to 95% RH
• Dimensions (WxDxH) 160x75x24mm
• Weight (With package) 0.35kg
• 3 Year Warranty

​ PartnerNet-Ruijie Reyee RG-ES100 Series Unmanaged Switches Datasheet

Benefits of the RG-ES100 Series:

The Plug and Play (PnP) feature allows you to set up a video surveillance transmission network by only powering on the RG-ES100 Series switches and correctly connecting the switches to IP cameras and digital video recorders (DVRs).

Easy Addition to Topology. If the Ruijie Cloud management platform is available, you can add the RG-ES100 Series to the topology manually or by scanning the QR code to conveniently output a complete topology.

High Selection Standards for Excellent Quality and Stability. The RG-ES100 Series is composed of key components selected based on strict requirements, such as the power supply, capacitors, and resistors. In addition, specifications related to lightning protection of the power supply, surge protection of ports, and lifespans of capacitors and resistors are strictly controlled and tested to provide reliable and easy-to-use products for customers.

Large Cache for Smooth HD Videos. Based on characteristics of video transmission, the RG-ES100 Series employs a large cache to properly handle traffic bursts in video surveillance and avoid video freezing.

The RG-ES100 Series unmanaged switches support switching among the flow control, port isolation, and normal modes, and support smart PoE and PoE+.

The RG-ES100 Series supports diversified product forms like desktop or rack-mounting installation and 6 to 26 port PoE/non-PoE switches, helping customers cope with the stringent requirements of different projects.

Wide Application Scenarios. The RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments.
