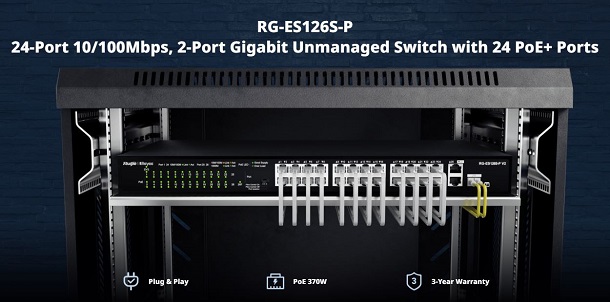

Ruijie-Reyee RG-ES126S-P V2, 24-Port 10/100Mbps Unmanaged PoE Switch with 2 Gigabit Uplink Ports - 370W

Κατασκευαστής: Ruijie
Κωδικός Προϊόντος: REYE-0068
Διαθεσιμότητα: Please Login

The Ruijie-Reyee RG-ES126S-P V2 is a cloud visible even unmanaged PoE+ switch that offers 24x 10/100BASE-TX downlink ports, 2x 10/100/1000Base-T Uplink ports with 1 Combo port and 370W Max. PoE power budjet. Video surveillance has been widely popularized, and more and higher requirements are raised for surveillance security switches that are indispensable for video data transmission. Ruijie Reyee launches the RG-ES100 Series of Unmanaged Switches to provide customers with next-generation unmanaged surveillance security switches that feature diversified specifications, stable quality, and high-cost performance. The RG-ES100 Series supports diversified product forms like desktop or rack-mounting installation and 6 to 26 port PoE/non-PoE switches helping customers cope with the stringent requirements of different projects.

Key Features of the Ruijie-Reyee RG-ES126S-P V2, 24-Port Gigabit Unmanaged Switch:

  • Cloud visible even unmanaged switch
  • Large buffer for smooth data transmission
  • Intelligent PoE management
  • High-quality makes network reliable
  • Better quality design
  • Designed for various scenarios
  • 24x 10/100BASE-TX Downlink Ports wit PoE/PoE+ support
  • 2x 10/100/1000Base-T Uplink ports with 1 Combo port
  • Max. PoE budget 370W
  • Layer Type: Unmanaged
  • Switching capacity 8.8 Gbps
  • Forwarding rate 6.55 Mpps
  • MAC address table 16000
  • Dimensions (W x D x H) 440 × 208 × 44mm
  • Weight (With package) 3kg
  • Auto/Full/Half Duplex Negotiation
  • Auto MDI/MDIX
  • Switching model: Store-and-forward
  • Cloud Management: Cloud monitoring
  • Flow Control, Port Isolation
  • Power Consumption <432W
  • Surge Protection 6kV
  • Power Supply 100V AC to 240V AC, 4A
  • Operating Temperature 0°C to 45°C
  • Storage Temperature -40°C to 70°C
  • Operating Humidity 10% RH to 90% RH
  • Storage Humidity 5% RH to 95% RH
  • 3 Year Warranty

Benefits of the RG-ES100 Series:

The Plug and Play (PnP) feature allows you to set up a video surveillance transmission network by only powering on the RG-ES100 Series switches and correctly connecting the switches to IP cameras and digital video recorders (DVRs).

Easy Addition to Topology. If the Ruijie Cloud management platform is available, you can add the RG-ES100 Series to the topology manually or by scanning the QR code to conveniently output a complete topology.

High Selection Standards for Excellent Quality and Stability. The RG-ES100 Series is composed of key components selected based on strict requirements, such as the power supply, capacitors, and resistors. In addition, specifications related to lightning protection of the power supply, surge protection of ports, and lifespans of capacitors and resistors are strictly controlled and tested to provide reliable and easy-to-use products for customers.

Large Cache for Smooth HD Videos. Based on characteristics of video transmission, the RG-ES100 Series employs a large cache to properly handle traffic bursts in video surveillance and avoid video freezing.

The RG-ES100 Series unmanaged switches support switching among the flow control, port isolation, and normal modes, and support smart PoE and PoE+.

The RG-ES100 Series supports diversified product forms like desktop or rack-mounting installation and 6 to 26 port PoE/non-PoE switches helping customers cope with the stringent requirements of different projects.

Wide Application Scenarios. The RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments.

Wide Application Scenarios. The RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments.

Χαρακτηριστικά
Κατασκευαστής Ruijie
Τύπος Προϊόντος POE Switch
Switching Capacity 8.8Gbps
POE Ναι
Downlink Ports 24
Network Speed 10/100
Management Unmanaged
PoE Power Budget 370W
CCTV Mode Ναι
Mounting Rack Mount
Εγγύηση 3 Χρόνια
