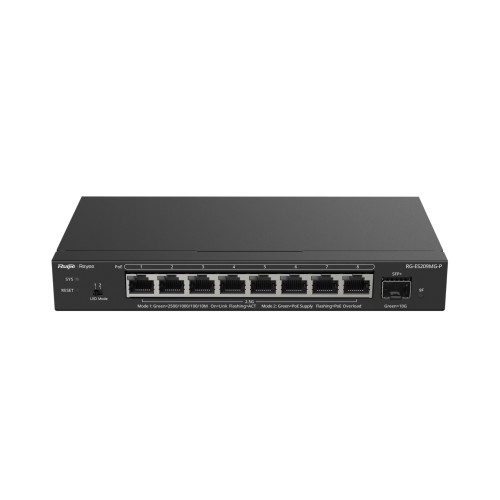

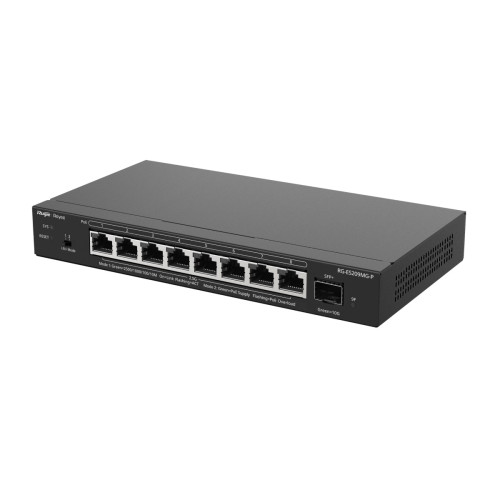

Ruijie-Reyee RG-ES209MG-P 8-Port 2.5G Cloud Managed PoE+ Switch with 1x 10G SFP+ Uplink Port

The Ruijie-Reyee RG-ES209MG-P is an 8-Port 2.5G PoE/PoE+ Cloud Mananged, Layer 2, Switch with 1x 10GE SFP+ Uplink Port, offering 60 Gbps (bit/s) Switching Capacity and 130W PoE power budget.
The ES200 Series offers cost-effective smart cloud managed switches. Adopts a light-weighted cloud management design, providing faster response to support richer features.

Key Features & Benefits:

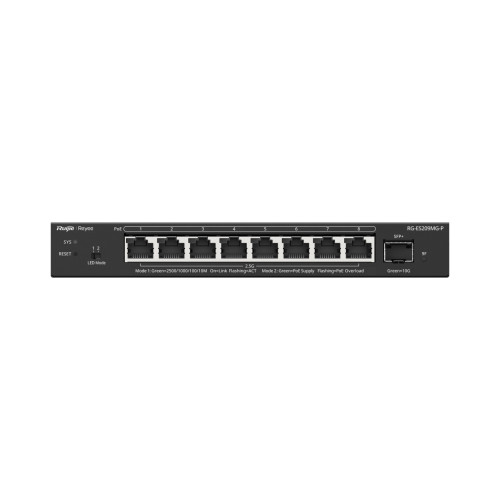

• 8x 2.5G ports and 1x 10GE SFP+ port for higher network performance
• 8x PoE Out ports supporting IEEE 802.3 af/at standards, 130 W PoE budget
• Aggregation of up to 4 ports, unlocking higher network speed
• Cost-effective smart cloud managed switches
• Lifetime free cloud management on Ruijie Cloud anytime, anywhere
• 3 Year Warranty

Specifications:

• 8x 10/100/1000/2500BASE-T PoE/PoE+ Dounlink Ports
• 1x 10G SFP+ Optical Uplink Port
• PoE standard: PoE/PoE+ (IEEE 802.3af/at)
• Max. PoE Power budget: 130 W
• Forwarding rate 45 Mpps
• PoE power pins: 1–2 (+), 3–6 (-)
• Switching capacity 60 Gbps
• Product category: Layer 2
• MAC address table 2000
• PoE watchdog, Port isolation
• Max. Power consumption:
  8.5 W (with no PoE load)
  138.5 W (with PoE full load)
• 1x Reset button

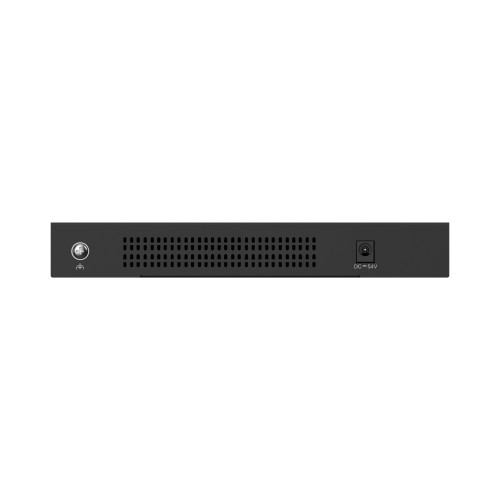

• DC power adapter: 100V-240V AC, 2.5A 50-60 Hz

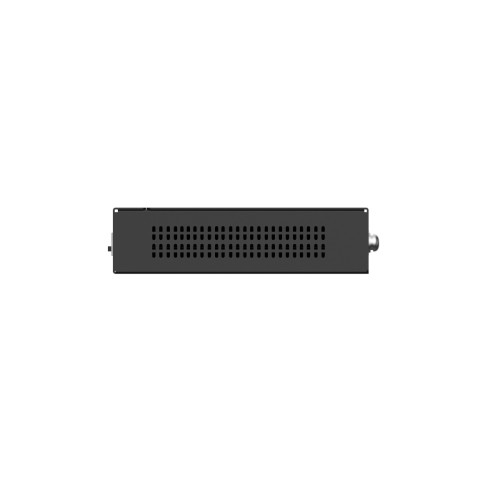

• Fanless operation
• CPU: MAC chip, single-core processor, 62.5 MHz clock frequency
• Flash memory: 4 MB
• Unit Dimensions (WxDxH): 202 mm x 108 mm x 28 mm
• Unit Weight 0.66 kg

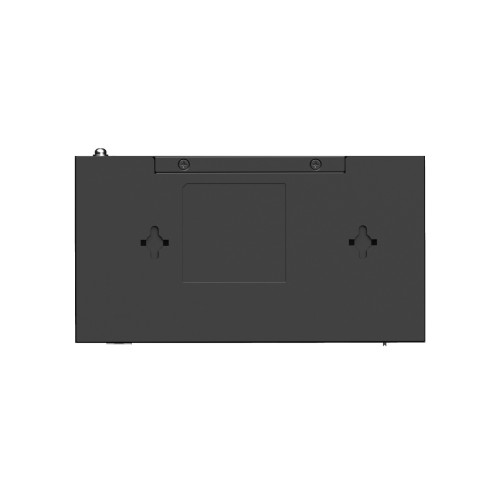

• Mounting options: Wall/Desk
• Hot swappable
• MTBF >200,000
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Storage temperature: -40°C to70°C
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Operating altitude: -500m to 5,000 m (-1,640.42 ft. to 16,404.20 ft.)
• ESD protection:
  Air discharge: 8 kV
  Contact discharge: 6 kV
• Surge protection:
  Service port: ±4 kV for common mode
  Power connector: ±4 kV for common mode and ±4kV for differential mode
• EMC: EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386
• Safety compliance: EN 62638-1
• Certification: CE

Software Specifications:

• System Performance Capacity:
  - Recommended camera limit:
  200W H265: 90
  400W H265: 45
• Basic Configurations: PoE watchdog, Online upgrade
• Interface:
  - Jumbo frame length (MTU): 9216 bytes
  - EEE, Cable test
• Ethernet Switching:
  - Max. number of VLANs: 16
  - Max. number of MAC address entries: 4000
  - Interface flow control
  - IEEE 802.1Q VLAN, Port-based VLAN
  - Static MAC address, Static aggregation
  - Inbound or outbound rate limiting based on interface traffic
• IP Service: DNS client, DHCP client
• Network Management & Monitoring:
  - Mirroring
  - HTTP login
  - Self Organizing Network (SON)
  - Camera detection
  - eWeb management
  - Ruijie Cloud management
  - Ruijie Reyee App management
• Security:
  - Port isolation
  - Broadcast storm control
  - Multicast storm control
  - Unknown unicast storm control
  - DHCP snooping
  - CPU Protection Policy

Package Contents:

• RG-ES209MG-P
• User Manual
• Warranty Card
