Ruijie-Reyee RG-EST100-E 2.4GHz Dual-stream 500m Outdoor Wireless Bridge

The Ruijie-Reyee RG-EST100-E is a dual-stream wireless bridge for surveillance video backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Compliant with the IEEE 802.11n standard, the wireless bridge operates at 2.4 GHz supporting two spatial streams (2x2 MIMO technology) and provides a maximum data rate of 300Mbps which can fully meet the data link bandwidth requirements of various services. The RG-EST100-E consists of 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without  requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end. RG-EST100-E can be managed via the app, including viewing the network topology and modifying configurations, which has completely revolutionized the conventional contact-type bridge configuration method. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level. With the four-sided curved edges design, RG-EST100-E fully utilizes the compact size and offers an exquisite exterior design.The casing of the device is optimized to deliver better dustproof and waterproof performance providing IP55 protection.

Highlights:

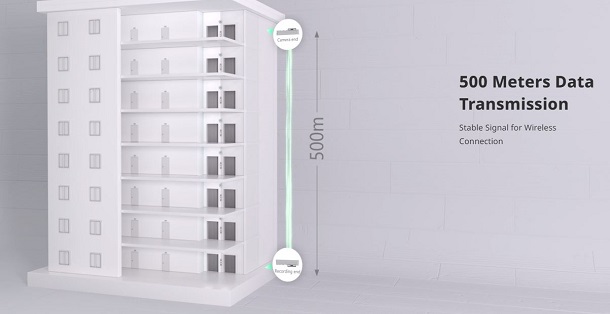

• RG-EST100-E can easily transmit data from 500 m away in real time
• Factory-free configuration, without complex alignment
• IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
• Support maximum 10 x 3MP cameras loading at 100 m, 5 x 3MP cameras loading at 500 m

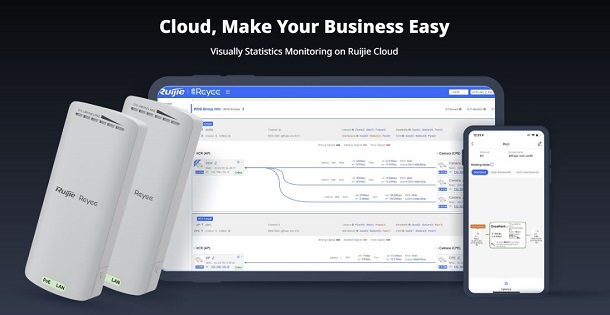

• Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
• 3 Year Warranty

Key Features & Benefits:

• Product Type: Bridge
• Antenna: 2.4 GHz: 2 x 2 Built-in directional antenna, horizontal: 70°, vertical: 70°
• Antenna gain (2.4 GHz): 8 dBi
• Antenna horizontal orientation: 70°
• Antenna vertical orientation: 70°

System Specifications:

• CPU: Single-core processor, 575/580 MHz clock frequency
• Flash memory: 8 MB
• RAM: 64 MB DDR2

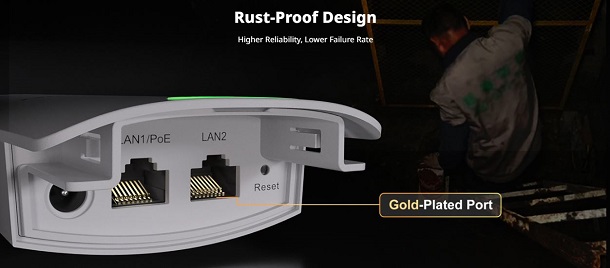

Port Specifications:

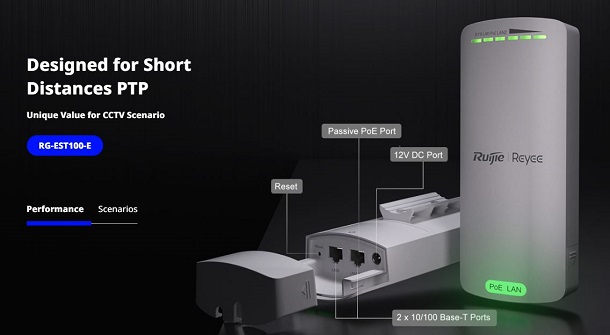

• Number of fixed LAN ports: x2
• Number of 10/100BASE-T ports: x2
• Number of PoE In ports: x1

Power Supply & Consumption:

• Power supply options: DC power adapter/Passive PoE injector
• DC power adapter:
  - Rated input voltage: 100V AC to 240V AC, 50 Hz to 60 Hz
  - Rated input current: 0.3 A
  - Rated output voltage: 12V DC
  - Maximum output current: 1A
• Passive PoE injector:
  - Rated input voltage: 12V DC
  - Rated input current: 1A
  - Rated output voltage: 12V DC
  - Maximum output current: 1A
• Local power supply: one DC power connector (12V, 1A)
• Dimensions of the DC connector:
  - Outer Diameter: 5.50 mm ± 0.05 mm
  - Inner Diameter: 2.10 mm ± 0.05 mm
  - Depth: 9 mm
• Max. power consumption: 5W

Radio design:

• Single-radio
• 2 spatial streams
• Radio 1: 2.4 GHz, 2 spatial streams: 2 x 2, MIMO
• Operating band: IEEE 802.11b/g/n: 2.400 GHz to 2.483 GHz
• Wi-Fi standard: Wi-Fi 4 (IEEE 802.11n) standard, compatible with IEEE 802.11b/g standards
• 2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
• 2.4 GHz channel width: Auto/20/40 MHz
• Transmission rate:
  - Max, wireless data rate: 300 Mbps
  - Radio 1: 2.4 GHz, 300 Mbps
• Max. transmit power: EU & UK, 2400–2483.5 MHz, EIRP ≤ 20 dBm
• Max. transmit power (2.4 GHz): Combined power: 23 dBm (single stream power: 20 dBm)
• Receive sensitivity:
  802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps)
  802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
• Modulation:
  802.11b: BPSK, QPSK, CCK
  802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM
• Highest QAM order: 64

IP Service:

• IPv4 ping
• IPv4 traceroute
• DHCP server
• DHCP client

Ethernet Switching: Interface rate: 10/100 Mbps auto-negotiation, VLAN
Security: Broadcast storm control

Network Management & Monitoring:

• SON
• Network-wide management SSID configuration
• Ruijie Cloud management
• Restarting devices through Ruijie Reyee App
• Fault diagnosis: support for network tools (ping, traceroute, and nslookup), fault alarms, and fault collection
• Restart cause prompt

Basic Configurations:

• eWeb login with the username and password
• Local upgrade
• Configuration backup
• System language
• System time settings

WLAN:

• BaseStation/CPE mode switching
• Bridge SSID hiding
• WPA2-PSK encryption
• Recommended channel
• Configuring a security key for network-wide bridgesBridge speed test
• Configuring a security key for a single bridge group
• Configuring a security key for a single bridge
• Bridge SSID, channel, and power configuration
• WMM
• Recommended PTMP connections: x1
• Max. bridge distance: 0.5 km (0.31 miles)
• One-touch pairing
• Max. effective distance of one-touch pairing: 20 m (65.62 ft.)
• Bridge performance:
  60 Mbps/100 m (328.08 ft.) (HT20)
  30 Mbps/500 m (0.31 miles) (HT20)
• RSSI:
  - 58 dBm/100 m
  - 68 dBm/500 m
• Recommended number of connected cameras (3 Mbps):
  10/100 m
    5/500 m
• Recommended number of connected cameras (4-5 Mbps):
  6/100 m
  3/500 m
• Recommended number of connected cameras (6-7 Mbps):
  3/100 m
  1/500 m
• Recommended number of connected cameras (7-8 Mbps code streams):
  3/100 m
  1/500 m
• Real-time signal strength
• Optimal signal strength
• Maximum number of devices on the SON: 200

Environment & Reliability

• Device Color: Elegant white
• Mounting options: Wall/Pole
• Operating temperature: -30°C to 60°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 5% to 95% (non condensing)
• Storage humidity: 5% to 95% (non condensing)
• Operating altitude: -500 m to +5,000 m
• Storage altitude: -500 m to +5,000 m
• MTBF: 400,000 hours (about 45 years)
• ESD protection: Standard test: contact discharge=8 kV, air discharge=15 kV, Class B
• Surge protection:
  - Service port: ±6 kV for common mode
  - Power connector: ±4 kV for common mode and ±2 kV differential mode
• Cooling: Natural cooling
• IP rating: IP55

Dimensions & Weight:

• Unit Dimensions (DxWxH): 165.5 × 68.7 × 42mm
• Unit Weight: 0.3kg
• Package Dimensions (Wx DxH): 220 x 202 x 87mm
• Package Weight: 0.852kg

Certification & Regulatory Compliance:

• Safety compliance: EN62368-1
• EMC: EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1, EN 301489-3, EN 301489-17
• Certification: CE, FCC, CB, ISED, cTUVus

 PartnerNet-Ruijie Reyee RG-EST100-E Wireless Bridge Datasheet

Package Contents:

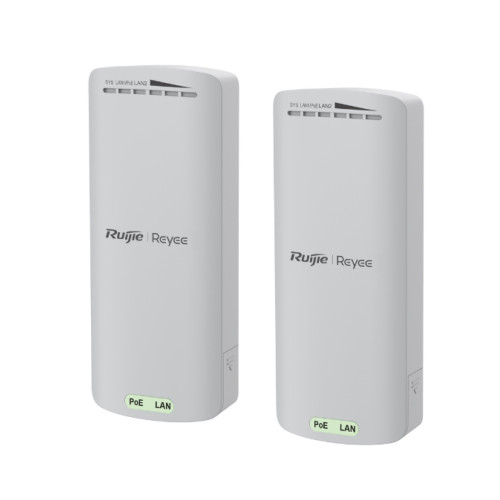

• 1x RG-EST100-E Wireless Bridge (Network Video Recorder End)
• 1x RG-EST100-E (Camera End)
• 2x 12 VDC/1 A Power Adapters
• 2x Passive PoE Adapters
• 4x Hole Clamps
• 2x Mounting Templates
• 1x User Manual
• 1x Warranty Card















































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Wireless Bridge
Τεχνολογία	802.11b/g/n
Aggregate Wireless Throughput	300Mbps
Antenna	Single-band 2x2 MIMO
Bridging Distance	500m
Embedded Controller	ΝΑΙ
Ethernet Port	10/100
POE	ΝΑΙ
Wireless	ΝΑΙ
Εγγύηση	3 Χρόνια
