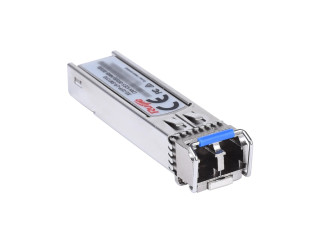

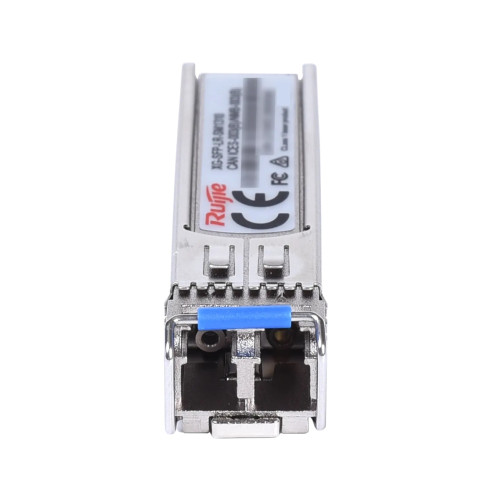

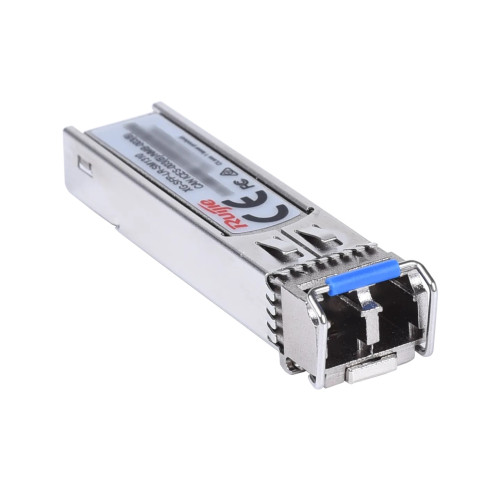

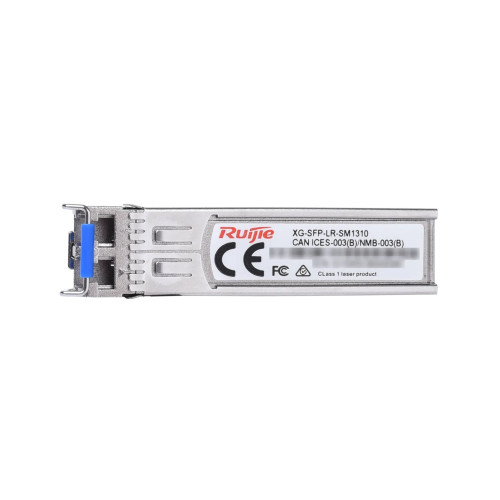

Ruijie XG-SFP-LR-SM1310 10GBASE-LR SFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
Ruijie XG-SFP-LR-SM1310 10GBASE-LR SFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
The Ruijie XG-SFP-LR-SM1310 is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards.
Highlight Features:
- Max. power consumption: 1.5 W
- Hot pluggable SFP+ MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
Specifications:
- Product: XG-SFP-LR-SM1310
- Data rate: 10.3125 Gbps
- Form factor: SFP+
- Connector type: Duplex LC
- Cable type: SMF
- Fiber end face finish type: Ultra Physical Contact (UPC)
- Transmitter type: DFB
- Receiver type: PIN
- Reach: 10 km (32,808.40 ft.)
- Bit error ratio (BER): 1.00E-12
- Data diagnosis-capable (DDM/DOM): Yes
- Power consumption: ≤ 1.5 W
- Wavelength: 1310 nm
- Max. transmit power (AVG): 0.5 dBm
- Min. transmit power (AVG): -8.2 dBm
- Min. extinction ratio: ≥ 3.5 dB
- Receive sensitivity (OMA): < -12.6 dBm
- Overload optical power (AVG): 0.5 dBm
- Operating temperature: 0°C to 70°C
- Operating humidity: 10% RH to 90% RH
- Storage temperature: 40°C to +85°C
- Storage humidity: 10% RH to 90% RH
- Dimensions (W x D x H): 56.5 x 13.5 x 8.5 mm
- Weight: 0.035 kg
Χαρακτηριστικά | |
Κατασκευαστής | Ruijie |
Τύπος Προϊόντος | Optical Transceiver |
Form Factor | SFP+ |
Fiber Type | Single Mode |
Transmission Distance | 10Km |
Connector Type | Duplex LC |
Compatibility Brand | Ruijie |
Wave Length (nm) | 1310 |
Εγγύηση | 5 Years |
