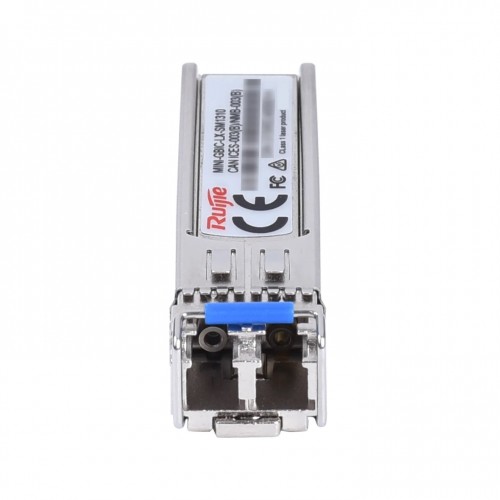

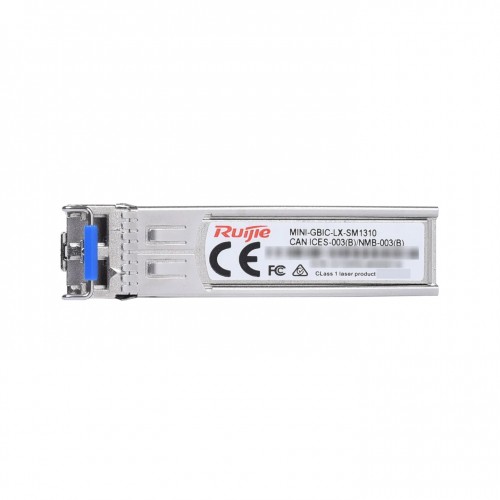

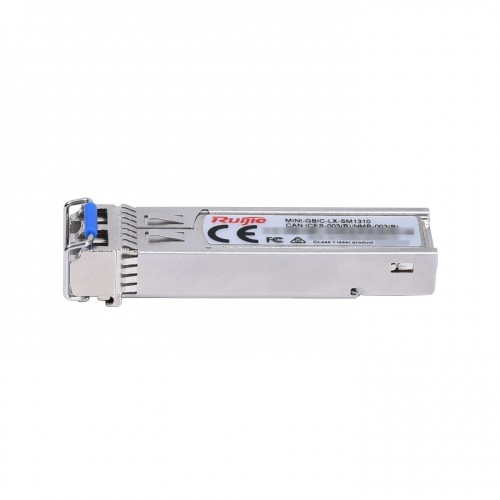

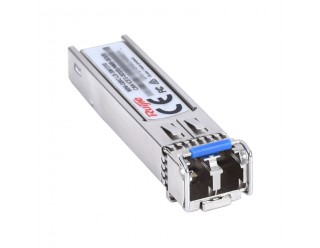

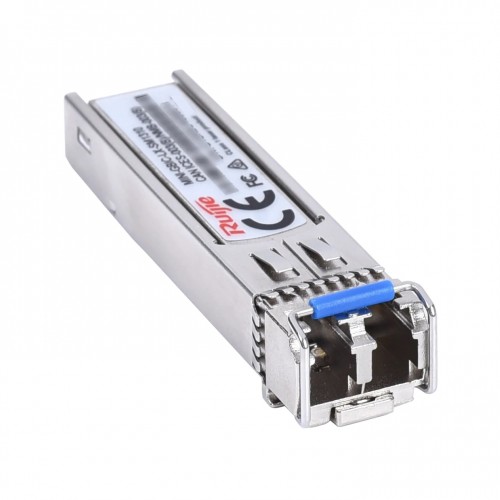

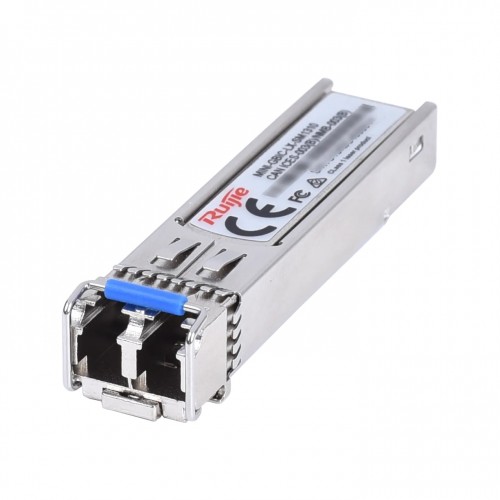

Ruijie MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module

The Ruijie MINI-GBIC-LX-SM1310 is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards. Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

Highlight Features:

• Max. power consumption 1.5 W
• Hot pluggable SFP MSA compliant
• Digital optical monitoring capability for strong diagnostic capabilities
• Compliant with IEEE 802.3z Gigabit Ethernet
• Class 1 Laser safety and RoHS compliant
• 5 Year Warranty

Specifications:

• Operating Data Rate: up to 1.25Gbps
• Form Factor: SFP
• Fiber Type: Single Mode
• Wavelength: 1310nm
• Transmission Distance: up to 10km
• Max. transmit power (AVG): -3dBm
• Min. transmit power (AVG): -11dBm
• Min. extinction ratio: ≥ 9dB
• Receive sensitivity (OMA): < -19dBm
• Overload optical power (AVG): -3dBm

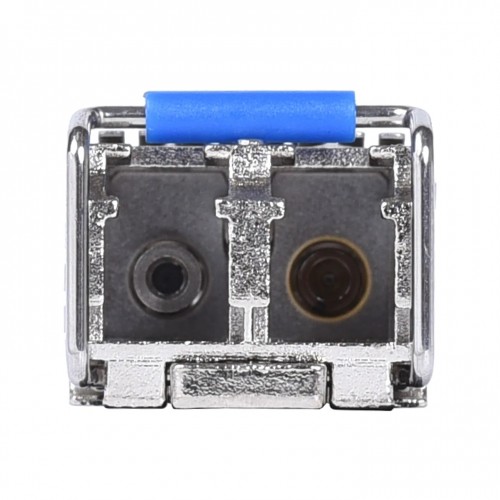

• Connector Type: Duplex LC
• Cable Type: SMF
• Fiber end face finish: Ultra Physical Contact (UPC)
• Laser Type: DFB
• Receiver type: PIN
• Bit error ratio (BER): 1.00E-12
• Data diagnosis-capable (DDM/DOM): Yes
• Power consumption: ≤ 1.5W
• Operating temperature: 0°C to 70°C
• Operating humidity: 10% RH to 90% RH
• Storage temperature: -40°C to 85°C
• Storage humidity: 10% RH to 90% RH
• Unit Dimensions (WxDxH): 56.5 x 13.5 x 8.5mm
• Unit weight: 0.035kg
• Compatibility Brand: Ruijie-Reyee
