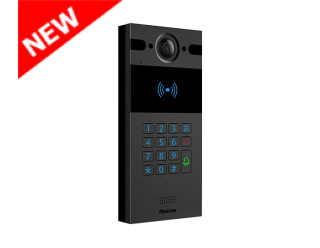

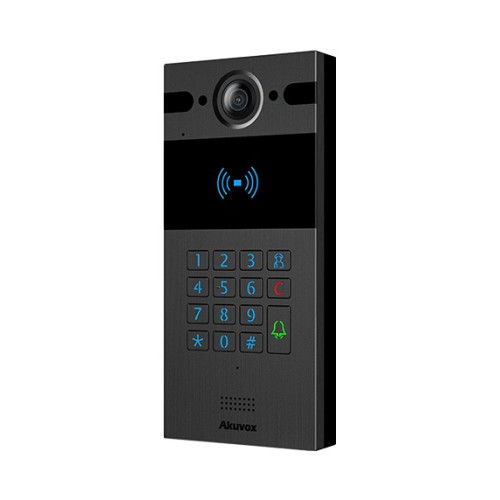

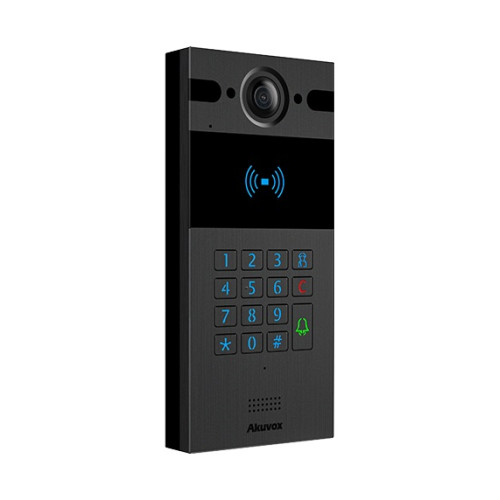

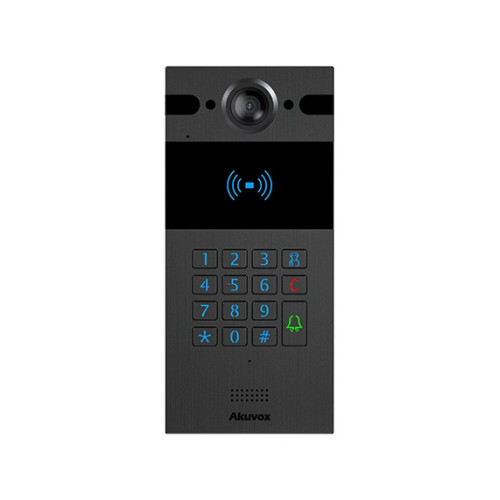

Akuvox R25K IP Video Door Phone with Keypad, 4Mp Ultra Wide-angle Camera with WDR technology and RFID Card Reader

The Akuvox R25K IP Video Door Phone featuring a high-resolution camera with WDR, an ultra wide-angle coverage, IP65-rated weatherproof protection, as well as multiple access methods, delivers a secure, flexible and stylish door entry experience. The security that comes with being able to control who comes into your building, along with the ability to verbally and visually confirm their identity, is immeasurable. The R25K IP Video Door Phone enables you to easily monitor an entrance door or gate, and gives you the peace of mind knowing that your facility is more secure. Akuvox R25K is a perfect doorphone choice for daily life.

Highlights:

• Aluminum panel with numeric keypad
• Linux OS
• Wide-angle camera: 150º (H), 150º (V)
• Two-way audio communication over IP networks with Echo Cancellation feature

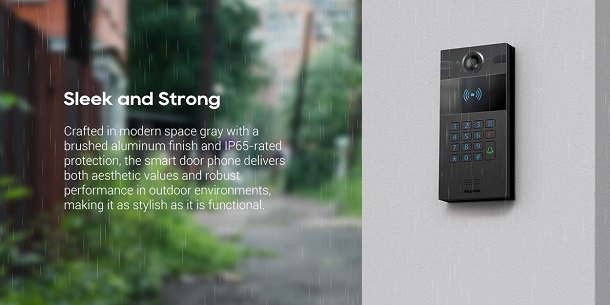

• IP65 weatherproof protection
• Flush-mounted & surface-mounted
• Complies with SIP & ONVIF
• 2 Year Warranty

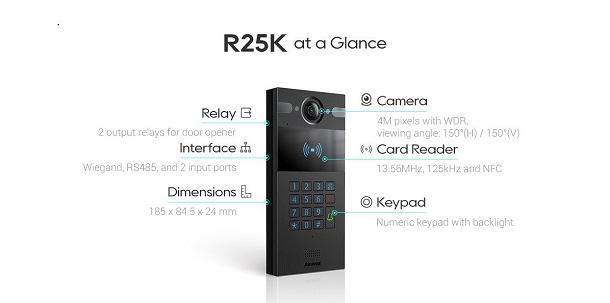

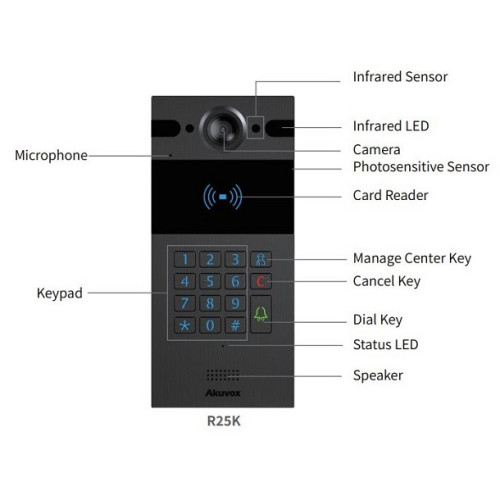

Physical & Power:

• Model: R25K
• Front panel: Aluminum
• Camera: 4M pixels, automatic lighting
• Numeric keypad with extra buttons
• Light sensor
• Motion sensor
• Wiegand port: 1ch input/output (selectable)
• RS485 port
• RF reader: 13.56MHz&125kHz, NFC (only Android)
• Relays out: 2
• Inputs: 2
• Microphone: 1
• Speaker: 1
• Tamper Alarm
• Ethernet port: RJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• IP Rating: IP65
• Installation: Flush-mounted or Wall-mounted
• Unit dimensions (HxWxD): 185 x 84.5 x 24mm
• Working Humidity: 10~90%
• Working Temperature: -30°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

Door Entry Feature:

• Relays controlled individually by DTMF tones
• Multi-way Unlock: EM/Mifare Card and PIN
• Camera permanently operational
• White balance: auto
• Minimum illumination: 0.1LUX

Capacity:

• User: 5,000
• Card: 25,000
• PIN: 5,000

Card Type:

• EM card
• Mifare card
• DesFire card (EV1/EV2/EV3)

Audio:

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ
• Wideband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video:

• Sensor: 1/3.2”, CMOS
• Pixels: CIF, VGA, 4CIF, 720p, 1080p, 2K
• Video codec: H.264
• Video resolution: up to 2000x2000
• Max. image transfer rate: 2K – 30fps
• Viewing angle: 150°(H) / 150°(V)
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Compatible to 3rd-Party-Video components, e.g. NVRs

Networking & Protocol:

• Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance:

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Entry log export
• Access table export / import
• Firmware upgrade
• System logs (include door access logs)

 PartnerNET Akuvox R25K IP Door Phone Datasheet

Package Contents:

• 1x R25K
• 1x Wiring cover
• 1x Sealing pressing plate
• 1x Rope
• 3x Rubber plug (S,M,L)
• 6x M2.5x6 crosshead screw
• 1x RJ45 coupler ethernet extension connector
• 1x RJ45 cable
• 3x Diode

Wall-mounting Accessories:

• 1x Wall-mounting bracket
• 2x M4x30 crosshead screw
• 4x ST4x20 crosshead screw
• 1x Allen wrench
• 4x Plastic wall anchor
• 2x M3x6 hex socket screw
• 4x Wall-mounting screw
• 1x Wall-mounting template

Accessories (Optional):

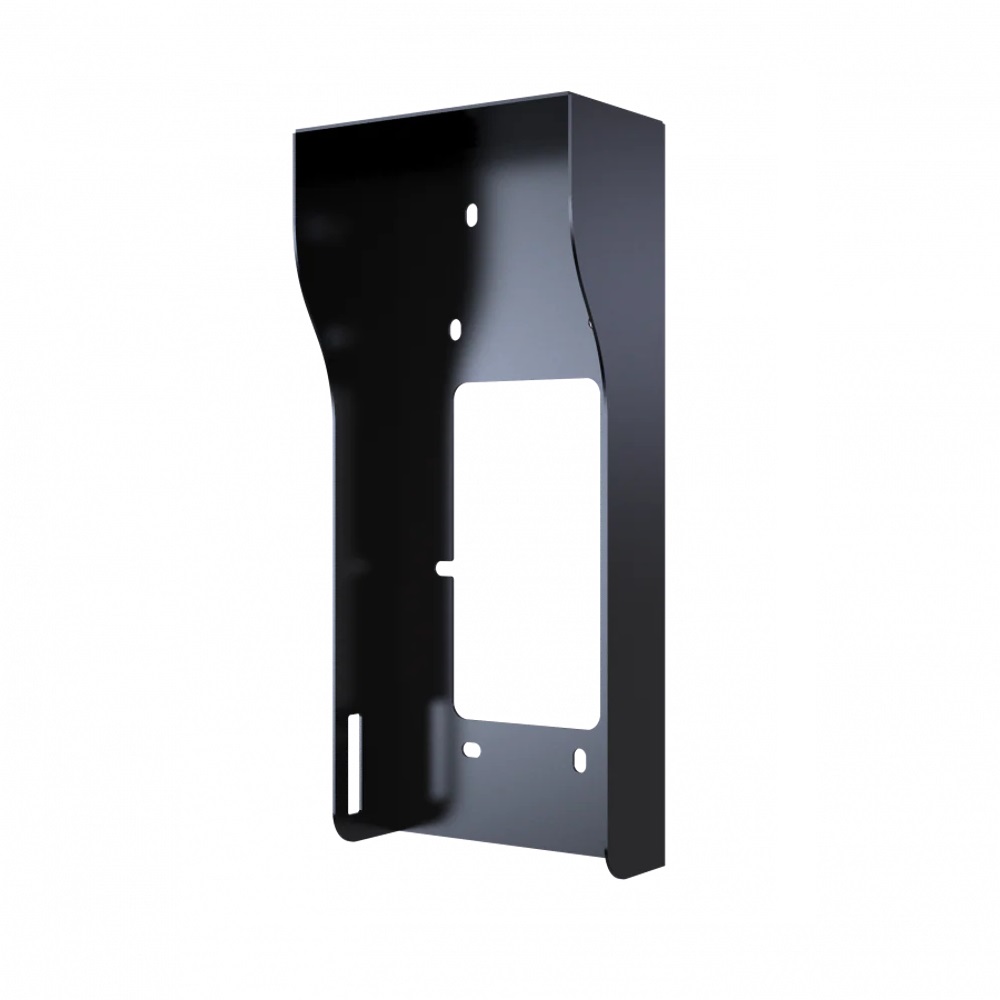

Akuvox R25K On-wall Rain Cover - Black

















































































































Χαρακτηριστικά
Βίντεο ανάλυση	FHD
Τεχνολογία	IP
HD Audio	ΝΑΙ
Εγγύηση	2 Χρόνια
Χαρακτηριστικά Θυροτηλεφώνων
Κατασκευαστής	Akuvox
Τύπος Προϊόντος	Door Phone
Κάμερα	ΝΑΙ
RFID	ΝΑΙ
Πληκτρολόγιο	ΝΑΙ
Εντοιχισμένο	ΝΑΙ
POE	ΝΑΙ
Relays	2
Επίτοιχη Tοποθέτηση	ΝΑΙ
Προτιμώμενη Τοποθέτηση	Indoor/Outdoor
