Akuvox R20A On-Wall Mounted IP Door Phone with one Button, Video & RFID Card reader

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox Video Doorphone R20A enables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

Key Features & Benefits:

• Vandal resistant body, with a flush button
• Wide angle camera: 110º (H), 58º (V)
• PoE (IEEE802.3af, Power over Ethernet)
• Two way audio communication over IP networks with Echo Cancellation feature
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Com plies with ONVIF standard for easy integration with any network surveillance system

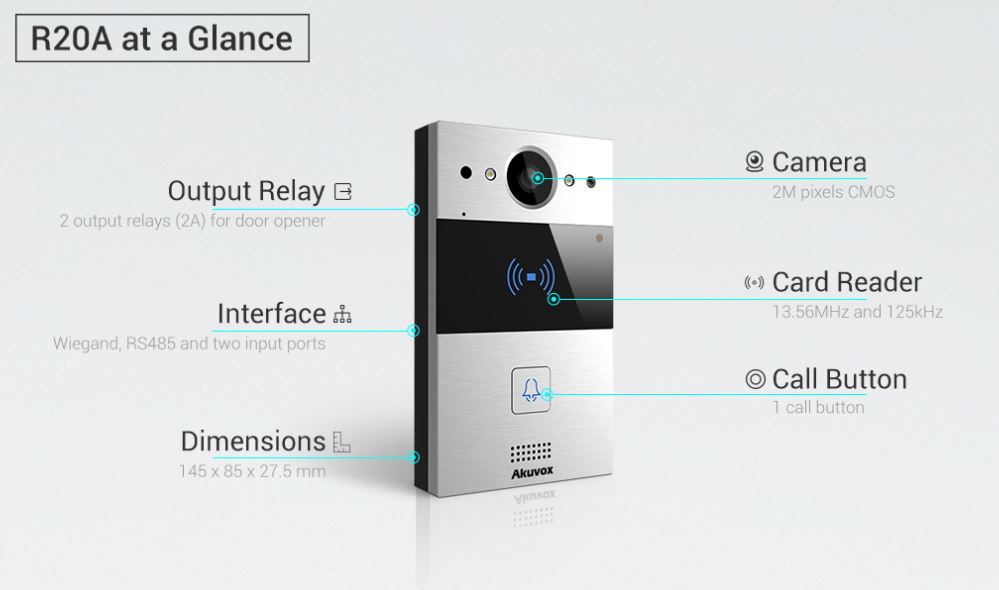

Physical & Power:

• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• Button: 1 call button
• Light sensor: Support
• Infrared sensor: Support
• Wiegand port: Support
• RS485 port Support
• RF card reader: 13.56MHz (with NFC) & 125kHz
• Relays out: 2
• Inputs: 2
• Microphone: 1
• Speaker: 1
• Ethernet port: RJ45, 10/100Mbps adaptive
• 802.3af Power over Ethernet
• 12V DC connector (if not using PoE)
• Water proof & Dust proof: IP 65
• On-Wall mounted (installation bracket Included)
• Wall mounted DIM: 145 x 85 x 27.5 mm
• Working Humidity: 10 ~ 90%
• Working Temperature: -30 °C ~ + 60 °C
• Storage Temperature: -40 °C ~ +70 °C

Audio:

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ
• Wide band audio codec: G.722
• DTMF: In band, out of band DTMF (RFC2833), SIP Info
• Echo Cancellation, Voice Activation Detection, Comfort Noise Generator

Video:

• Sensor: 1/2.7 ” CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264
• Video resolution: up to 1920 x 1080
• Max. image transfer rate: 1080p - 30fps
• Viewing angle : 110°(H) / 58°(V)
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Compatible to 3rd Party Video components, e.g. NVRs

Door Entry Feature:

• Relays controlled individually by DTMF tones
• Camera permanently operational
• Auto night mode with LED illumination
• White balance: auto
• Minimum illumination: 0.1LUX

Networking & Protocol:

• IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance:

• Auto Provisioning
• Web management portal
• Web based packet dump
• Configuration backup / restore
• Entry log export
• Access table export / import
• Firmware upgrade
• System logs (include door access logs)

Application Scenario:

• Office door phone with on site or hosted IP PBX
• Remote site entry over Internet
• Apartment/flat intercom with door access control

 PartnerNET Akuvox R20A IP Door Phone Datasheet

Package Contents:

• R20A IP Door Phone
• 1x Wiring cover
• 6x M2.5x6 crosshead screw
• 2x Diode
• 4x Plastic wall-anchor
• 4x ST4x20 crosshead screw
• 1x Allen wrench
• 1x Sealing pressing plate
• 2x M3x6 hex socket screw
• 1x Rope
• 1x Wall-mounting bracket
• 2x M4x30 crosshead screw
• 3x Rubber plug (S,M,L)
• 4x Wall-mounting screw
