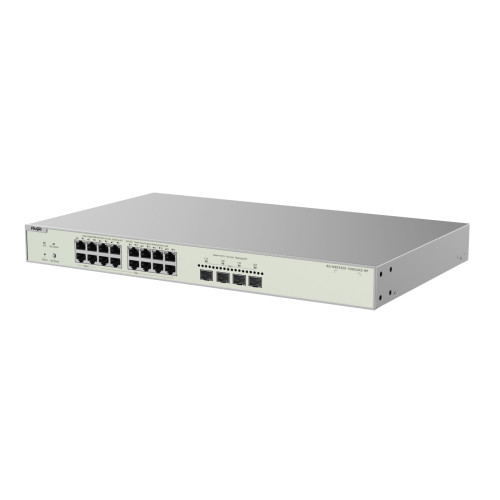

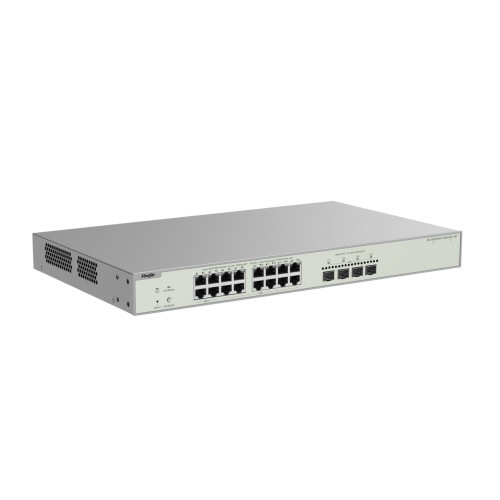

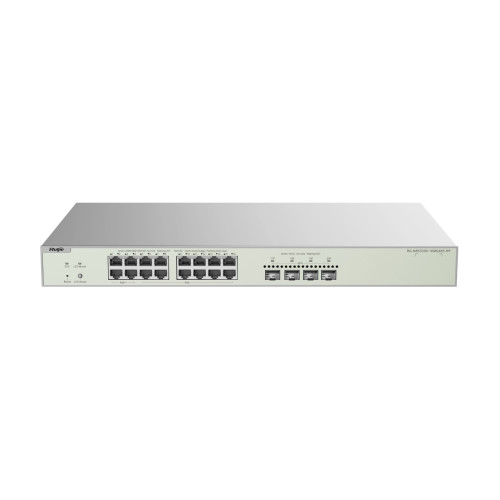

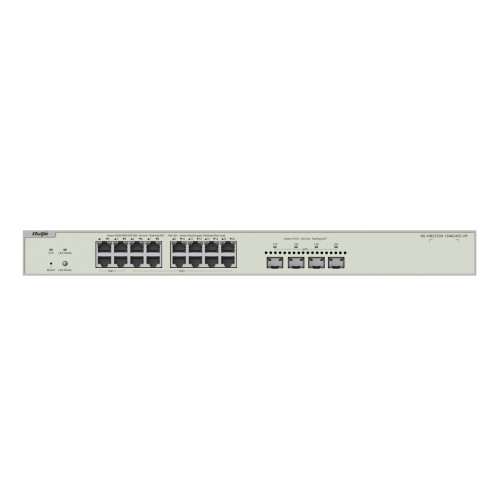

Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

  • Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

  • Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

  • Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

  • Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

  • Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

  • Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

  • Ruijie-Reyee RG-NBS3300-16MG4XS-HP 16-Port Muti-Gigabit, Layer 2 Managed Switch with 4x PoE++ Ports, 12x PoE+ Ports and 4x SFP+ Uplink Ports

Κατασκευαστής: Ruijie
Κωδικός Προϊόντος: REYE-0168
Διαθεσιμότητα: Please Login
The Ruijie-Reyee RG-NBS3300 series of switches are next-generation multi-gigabit access switches that provide cost-effective and high-speed connectivity. This series delivers both 1G and 2.5G access capabilities, along with 10G uplink ports to meet the demands of high-density environments. The RG-NBS3300 series is designed for small and medium-sized enterprises, making it ideal for large-scale, high-density settings such as campuses, offices, and stadiums.

Highlights:
  • 2.5G ports smash the gigabit barrier, unlocking the full potential of Wi-Fi 6 and 7 access points
  • IEEE 802.3bt/at/af-compliant PoE ports provide a power budget of 370 W
  • The CPU Protect Policy (CPP) safeguards the CPU against attacks, ensuring CPU performance and stability
  • Enterprise-grade quality ensures high performance
  • Multiple security policies protect your network
  • Ruijie Cloud enables easy management anytime, anywhere

Hardware Specifications:
  • Model: RG-NBS3300-16MG4XS-HP
  • 16x 10/100/1000/2500BASE-T Ports
  •   4x 10 Gbps Optical Ports (SFP+)
  • 12x PoE/PoE+ Ports
  •   4x PoE/PoE+/PoE++ Ports
  • Number of Fans: 2 (Left to back airflow)
  • Single fixed power supply
  • Forwarding Rate: 119.04 Mpps
  • Switching Capacity: 160 Gbps
  • MAC Address Table Size: 16000
  • ARP Table Size: 1000
  • Number of ACEs: Inbound: 1900, Outbound: 0
  • Max. PoE Power Budget: 370 W
  • Output Power: 54 V/7.6 A, P = 409W
  • Power Consumption:
    - No PoE load: < 40W
    - Full PoE load: < 460W
  • Power Supply:
    - Rated voltage range: 100–240 V
    - Maximum voltage range: 90–264 V
    - Frequency: 50/60 Hz
    - Rated current: 6 A
  • Port Surge Protection: Common mode: 6 kV
  • Power Supply Surge Protection:
    - Common mode: 6 kV
    - Differential mode: 6 kV
  • Unit Dimensions (WxDxH): 440 x 267.5 x 43.6 mm
  • Net Weight: 3.6 kg
  • Gross Weight: 5.24 kg
  • Certification: CE, FCC
Software Specifications:
  • Multicast/IGMP:
    - IGMP Filtering
    - IGMP Fast Leave
  • ACL:
    - IP Standard ACL
    - MAC Extended ACL
    - IP Extended ACL
    - IPv6 ACL
  • QoS: Port-Level Rate Limiting (Ingress/Egress)
Security:
  • 802.1X:
    - IEEE 802.1X Authentication
    - Port-based Authentication
    - MAC-based Authentication
    - Global IEEE 802.1X Authentication Control
    - Force Authorized
    - Force Unauthorized
    - Port-based Single-Host Mode
    - PEAP Authentication for Windows 7/8/10/11 Clients
    - PEAP Authentication for macOS Clients
    - PEAP Authentication for Linux OS Clients
  • Management via Web Interface:
    - Web Authentication
    - HTTP
    - HTTPS
  • IP-MAC-Port Binding
  • ARP Anti-Spoofing
  • IP Source Guard
  • CPU Protection Policy (CPP): Hardware CPP
  • Reliability: RLDP
NMS & Maintenance:
  • RLDP
  • SPAN
  • NTP Client
  • SNMP:
    - SNMP v1
    - SNMP v2c
    - SNMP v3
  • MQTT
  • Self-Organizing Network
  • Network Management: Management via Ruijie Cloud
  • Ruijie Cloud: View Device Details on Ruijie Cloud
Environmental:
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -40°C to 70°C
  • Operating Humidity: 10% to 90% RH (non-condensing)
  • Storage Humidity: 5% to 95% RH (non-condensing)
Package Contents:
  • RG-NBS3300-16MG4XS-HP switch
  • 2x Rack-mount brackets
  • 8x M4x8 mm Philips countersunk screws
  • 4x Rubber pads
  • 1x Power cord
  • 1x Yellow/green ground wire
  • 1x Power cord retention clip
  • User Manual
  • Warranty Card
Χαρακτηριστικά
Κατασκευαστής Ruijie
Τύπος Προϊόντος POE Switch
Switching Capacity 160Gbps
POE Ναι
Downlink Ports 16
Uplink Ports 4
Network Speed Gigabit
SFP Ports Ναι
Management Smart Managed
PoE Power Budget 370W
CCTV Mode Ναι
Mounting Rack Mount
Εγγύηση 5 Years
Ετικέτες: Ruijie-Reyee, RG-NBS3300-16MG4XS-HP, 16-Port, L2, Managed, PoE, Switch, RG-NBS3
