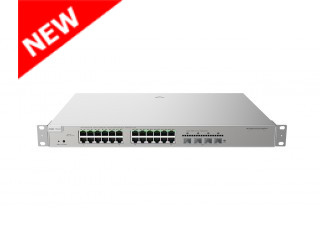

Ruijie-Reyee RG-NBS5200-24GT4XS-P-V2 24-port Gigabit Layer 3 Cloud Managed PoE/PoE+ Switch with 4 SFP+ (10G) Uplink Ports

The Ruijie-Reyee RG-NBS5200-24GT4XS-P-V2 is a next-generation Ethernet Layer 3 Cloud Managed PoE switch developed featuring high performance, high security, and multi-service integration. Offers 24x 10/100/1000BASE-T ports, 4x (10GE) SFP+ Uplink Ports, Switching capacity 128 Gbps(bit/s) and 370W Max. PoE Power Budget. It adopts an efficient hardware architecture design for more table entries, higher hardware performance, and more convenient experience. The RG-NBS5200-24GT4XS-P-V2 provides sound end-to-end service quality and rich security settings for the medium- and small-sized networks in an extremely cost-effective manner. The switch can meet requirements of enterprise networks for high speed, security, and intelligence.

Key Features & Benefits:

• 24-Port Gigabit Layer 3 Cloud Managed PoE Switch with 4 (10GE) SFP+ Uplink Ports
• Enterprise-Class Quality and Features, Delivering Exceptional Performance
• 6 kV Surge Protection, Reducing the Possibility of Port Damage
• Multiple Security Policies, Protecting Your Network
• Lifetime Management on Ruijie Cloud Anytime, Anywhere
• 5 Year Warranty

Specifications:

• Model: RG-NBS5200-24GT4XS-P-V2
• Casing: 19-inch Rack-mountable Steel Case
• Product Category: Layer 3
• 24x 10/100/1000Base-T PoE/PoE+ ports
• 4x (10GE) SFP+ uplink ports
• Service ports support hot swapping of cables
• 1x Reset Button
• Switching capacity: 128 Gbps
• Forwarding rate: 96 Mpps
• PoE(802.3af)/PoE+(802.3at)
• Max. PoE budget: 370W
• PoE power pins: 1–2 (+), 3–6 (-)
• Power supply: Fixed power supply 100 to 240V AC - 6A, 50/60 Hz
• Max. power consumption: 30W (with no PoE load), 430W (with full PoE load)
• LED:
  1x SYS status LED
  1x LED Mode LED
  24x 10/100/1000BASE-T port status LEDs
  4x SFP+ port status LEDs

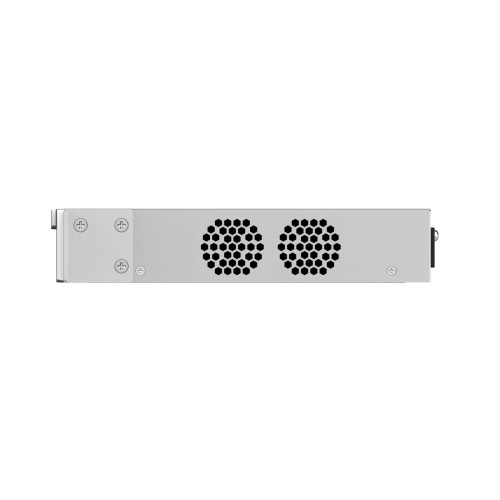

• Cooling: 2x Fixed Fans, side-to-rear airflow
• Fan speed adjustment: Intelligent speed adjustment
• Acoustic noise:
  23℃ (73.4°F)：32 dB (with half PoE load)
  50℃ (122°F)：49 dB (with full PoE load)
• CPU: MAC chip, single-core processor, 800 MHz clock frequency
• RAM: 512 MB, Flash 256 MB
• Port surge 6 kV
• Certification & Regulatory Compliance:
  EMC: EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386
  Safety compliance: IEC 62368-1
  Certification: CE

Software Specifications:

• Authentication:
  RADIUS
  802.1X authentication
  Port-based 802.1X authentication
  MAC address-based 802.1X authentication
  Guest VLAN
• Basic Configurations:
  PoE watchdog
  Online upgrade
  Ethernet Switching:
  Maximum No. of VLANs: 4094
  Maximum No. of MAC address entries: 16000
  Interface flow control
  IEEE 802.1Q VLAN
  VLAN configuration supported on LAN ports
  Voice VLAN
  STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
  LLDP, LLDP-MED
  Static MAC address, MAC address filtering
  Static aggregation, LACP
  Inbound or outbound rate limiting based on interface traffic
• Gateway Features:
  802.1p priority-based traffic classification
  DSCP priority-based traffic classification
  Egress queues based on 802.1p and DSCP priorities
  SP, WRR, SP+WRR, Global QoS
• Interface:
  Jumbo frame length (MTU): 9216 bytes (interface configuration mode)
  EEE, Cable test
• IP Service:
  Max. No. of ARP entries: 2000
  IPv4 routing table size (host route): 6000
  ARP, IPv4 ping, IPv4 traceroute
  ICMPv6, IPv6 ping, IPv6 traceroute
  DNS client, DNSv6 client
  DHCP relay, DHCP server, DHCP client
• IP Routing:
  Max. No. of IPv4 static routes: 500
  IPv6 routing table size (network route): 128
  Max. No. of IPv6 static routes: 128
  IPv4 static route, IPv6 static route
  OSPFv2, OSPFv3
• Multicast:
  IGMPv1 snooping, IGMPv2 snooping
  Basic IGMPv3 snooping, Full IGMPv3 snooping, IGMP filtering
  IGMPv1, v2, and v3
• Network Management & Monitoring:
  Port mirroring, Mirroring
  HTTP login, HTTPS login
  RLOG, SON, Syslog
  Client auto-discovery
  PoE service failure
  PoE power overload
  Camera detection
  Loop alarm
  MAC address entries
  IP address pool conflicts
  Full ARP table
  eWeb management
  Ruijie Cloud management
  Ruijie Reyee App management
  SNMPv1, v2c, and v3
• Reliability:
  Number of VCS members: 2
  System dual backup
  Enabling dual backup for the partition Uboot (based on a single flash memory)
• Security:
  Maximum number of ACEs:
  No. of ACEs in the inbound direction of an interface: 1900
  No. of ACEs in the outbound direction of an interface: 0
  Port isolation
  Broadcast storm control
  Multicast storm control
  Unknown unicast storm control
  DHCP snooping
  Standard ACL, Extended MAC ACL, Extended IP ACL, IPv6 ACL
  IP-MAC-port binding
  ARP anti-spoofing
  IP source guard
  CPU Protection Policy
• System Performance:
  Recommended camera limit:
  200 W H265: 350
  400 W H265: 170

Dimensions & Weight:

• Unit Dimensions (WxDxH): 440mm x 226.6mm x 44mm
• Unit Weight: 2.88 kg
• Package Dimensions (WxDxH): 573 x 468 x 165mm
• Weight (With package) 4 kg
• Operating temperature 0°C to 40°C
• Operating humidity 10% to 90% RH
• MTBF: 400,000 hours
• Operating altitude: 0m to +5,000 m (0 ft. to +16,404.20 ft.)

Package Contents:

• RG-NBS5200-24GT4XS-P-V2
• Rubber pad x4
• Power cord 1x 1.5 m (4.92 ft.)
• Power cord retention clip x1
• M4x8 mm cross recessed countersunk head screws x6
• Grounding cable 1x 1m (3.28 ft.)
• Rack-mount bracket: x2
• User Manual
• Warranty Card
