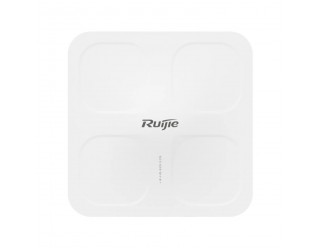

Ruijie RG-AP680P-L Wi-Fi 6 Dual-Radio 5.951 Gbps Outdoor Access Point with built-in Omnidirectional Antennas, 4x4 MU-MIMO and OFDMA Technology

The Ruijie RG-AP680P-L is an 802.11ax-compliant dual-radio wireless access point (AP) fit for outdoor scenarios in general education, SME, energy, business, government, healthcare sectors, plaza scenarios and more. It complies with 802.11ax, 802.11ac Wave2, 802.11ac Wave1, and 802.11n. With a hardware-independent dual-radio design, the RG-AP680P-L can provide a data rate of up to 5.951 Gbps. The ultra-fast wireless rate eliminates the performance bottleneck. The design of the RG-AP680P-L considers factors such as wireless network security, radio control, mobile access, QoS, seamless roaming, and Internet of Things (IoT) scalability. With Ruijie's access controller (AC) and Ruijie Cloud servers, the RG-AP680P-L can implement wireless client data forwarding, security features, access control, and IoT application extension. The RG-AP680P-L adopts IP68 rated housing. It is applicable to harsh outdoor environments and easy to install and maintain.

Highlights:

• Wi-Fi 6 certification
• 10G optical port for flexible networking
• Built-in smart omnidirectional antenna, wide Wi-Fi coverage
• 5.951 Gbps high speed and concurrent dual-radio design
• OFDMA, MU-MIMO technologies for minimal wireless signal interference
• Up to 1024 client connections
• Industrial-grade product design
• Excellent environmental adaptability: IP68, -40°C to +65°C, and 6 kV surge protection
• Hybrid management: support for thousands of standalone APs, and AC management and public cloud deployment options
• Mobile management: free mobile applications for Ruijie Cloud customers
• 3 Year Warranty

Key Specification:

• Wireless Protocols: 802.11a/b/g/n/ac/ax
• Radio Design: Dual-radio: 2.4 GHz (4x4), 5 GHz (4x4) up to 8 spatial streams
• Built-in omnidirectional antennas:
  - 4x 2.4 GHz antennas
  - 4x 5 GHz antennas
  - 1x Bluetooth antenna
  - 1x GPS antenna
• Antenna gain:
  - 2.4 GHz: 5 dBi
  - 5 GHz: 5.5 dBi
• Data Rate: Combined peak data rate: 2.4 GHz + 5 GHz, 5.951 Gbps
• Bluetooth 5.1
• 1x 100/1000/2.5G/5GBASE-T port, 1x 10GE SFP+ port
• - Auto MDI/MDIX crossover
  - NBASE-T/IEEE802.3bz-compliant 5 Gbps
  - PoE-PD: 48 V DC (nominal value) 802.3af/at/bt (Class 3 or higher)
  - 802.3az EEE
• 1x 100/1000BASE-T port
  - Supplying 48 V/12.95 W power to an IoT unit
  - Auto MDI/MDIX crossover
  - 802.3az EEE
• Fixed management port: 1x RJ45 console port (serial console port)
• Status LED:
  - 1x multi-color system status LED
  - 3x single-color RSSI LEDs
• 1x Reset button
• Input Power Supply: PoE/PoE+/PoE++ (802.3af/at/bt)
• Max. Power Consumption: 40 W
• External Power Supply support
• IP Rating: IP68
• Operating Temperature: -40°C to +65°C
• Mounting: Wall/Pole-mount

Software Specifications:

• Recommended maximum number of active devices per AP: 200
• Max. number of associated clients: 1024
• Max. number of BSSIDs: 32 (up to 16 BSSIDs per radio)
• STA management:
  - SSID hiding
  - Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.
  - Remote intelligent perception technology (RIPT)
  - Intelligent client identification technology
  - Intelligent load balancing based on the STA quantity or traffic
• STA limiting:
  - SSID-based STA limiting
  - Radio-based STA limiting
• Bandwidth limiting: STA/SSID/AP-based rate limiting
• Wireless roaming: Layer 2 and Layer 3 roaming

Security:

• Authentication & encryption:
  - Remote Authentication Dial-In User Service (RADIUS)
  - PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication
  - SMS authentication (used with the RG-WS series wireless access controller)
  - MAB authentication (used with the RG-WS series wireless access controller)
  - WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-Enterprise (GCMP), WPA3-OWE
• Data frame filtering: Allowlist, static blocklist, and dynamic blocklist
• Dynamic ACL assignment, CPP, NFPP

Routing & Switching:

• Static IPv4 address and DHCP-assigned IPv4 address
• NAT, FTP ALG, DNS ALG
• Multicast-to-unicast conversion
• IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping
• IPv6 DHCP client
• IPv4/IPv6 static routing
• PPPoE client, IPsec VPN

Management:

• Network management:
  - Fault inspection and alarm
  - Information statistics and logging
  - SNMPv1/v2c/v3
  - NTP Server and NTP Client
• Network management platform:
  - Ruijie Cloud
  - Web-based management (Eweb)
• User access management: Console, Telnet, SSH, SNMP and TFTP-based management
• Fat/Fit/Cloud mode switchover:
  - When the AP works in Fit mode, it can be switched to Fat mode through an AC
  - When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet
  - When the AP works in Cloud mode, it can be managed through Ruijie Cloud

Environment & Reliability:

• Operating temperature: -40°C to +65°C
• Storage temperature: -40°C to +85°C
• Operating humidity: 0% RH to 100% RH (non-condensing)
• Storage humidity: 0% RH to 100% RH (non-condensing)
• Anti-corrosion rating: EN300 0019 Class C
• IP rating: IP68
• MTBF: 200,000 hours (22 years) at the operating temperature of 25°C

Dimensions & Weight:

• Unit dimensions (WxDxH): 300 x 300 x 94 mm
• Unit weight:  4.5 kg (Main unit: 3.3 kg - Mounting bracket: 1.2 kg)
• Package dimensions (WxDxH): 477 x 417 x 184 mm
• Package weight: 6.5 kg

Package Contents:

• RG-AP680P-L
• 1x Mounting plate assembly
• 1x Wall/Pole-mount bracket
• 4x M5x10 machine screw
• 2x M6×16 machine screw
• 2x M8×20 machine screw
• 4x M6x40 mm expansion anchor
• 2x Hose clamp
• 2x power cord
• 1x Watertight cable gland for the optical cable
• 4x Dust cap
• 1x Grounding cable
• Warranty Card
• Quick Start Guide
