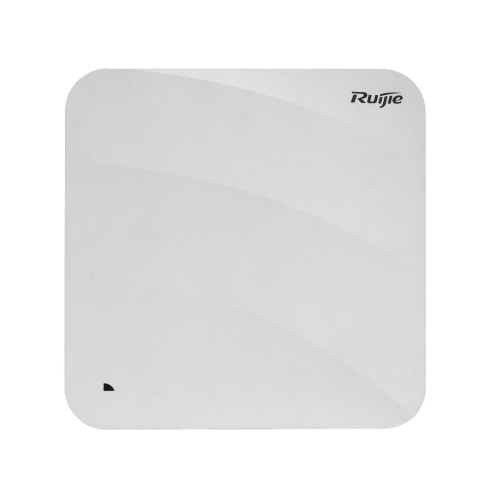

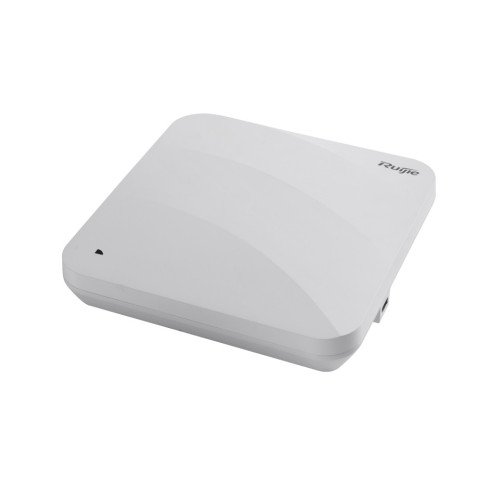

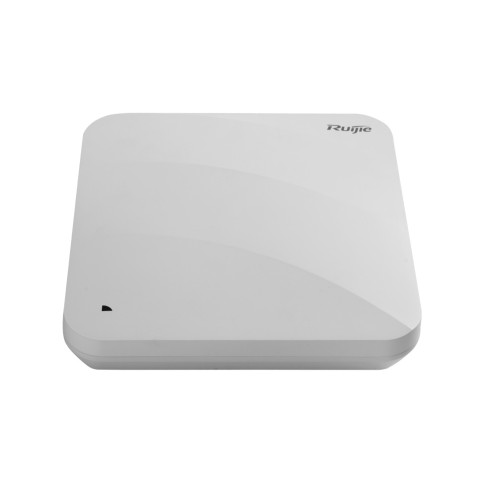

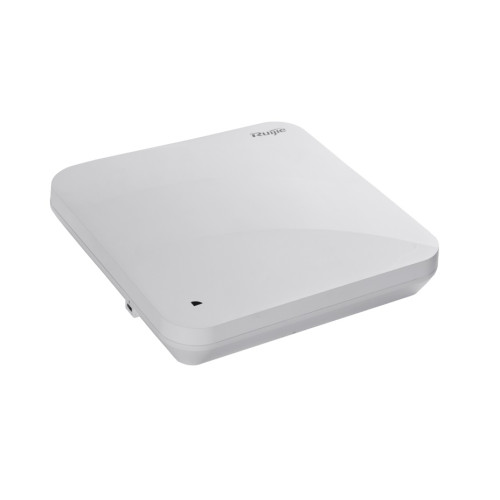

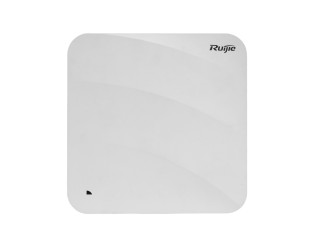

Ruijie RG-AP840-L Wi-Fi 6 Dual-Radio 5.378 Gbps Indoor High-density Access Point

The RG-AP840-L is an 802.11ax-compliant dual-radio wireless access point (AP) provided by Ruijie Networks for general education, higher education, government, finance, business, and other indoor scenarios. It complies with 802.11ax, 802.11ac Wave2, 802.11ac Wave1, and 802.11n. With a hardware-independent dual-radio design, the RG-AP840-L can provide a data rate of up to 5.378 Gbps. The ultra-fast wireless rate eliminates the performance bottleneck. The design of the RG-AP840-L considers factors such as wireless network security, radio control, mobile access, QoS, seamless roaming, and Internet of Things (IoT) scalability. With Ruijie's wireless access controller (AC), the RG-AP840-L can implement wireless client data forwarding, security features, access control, and IoT application extension. The RG-AP840-L supports both local power supply and Power over Ethernet (PoE), so customers can flexibly select the power supply. It can be installed against a wall or ceiling, which is suitable for deployment in scenarios such as large campuses, conference centers, plazas, enterprise offices, and operational hotspots.

Highlights:

• Dual-band design (2.4 GHz + 5 GHz), six spatial streams, and up to 5.378 Gbps peak data rate
• 5 Gbps wired data rate to achieve high-speed wireless data backhaul, and access through optical and Ethernet cables for flexible networking
• OFDMA and MU-MIMO, optimizing multi-user access experience
• IEEE 802.11k/v/r support, roaming stickiness optimization, and remote association for better user experience
• WPA3, Enhanced Open Security, 802.1X, MSCHAPv2, and other encryption authentication to enhance data security
• Local and cloud management (free for life) modes, and intelligent wireless network optimization, reducing TCO and maximizing ROI
• Rich IoT features: PoE output, Bluetooth 5.1, and wireless locating
• 3 Year Warranty

Key Specifications:

• Wireless Protocols: 802.11a/b/g/n/ac/ax
• Radio Design Dual-radio: 2.4 GHz (2x2), 5 GHz (4x4) up to 6 spatial streams
• Antenna Type: Built-in omnidirectional antennas
• Data Rate: Combined peak data rate: 2.4 GHz + 5 GHz, 5.378 Gbps

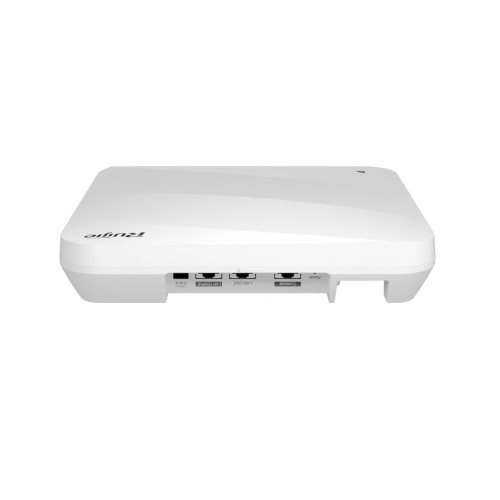

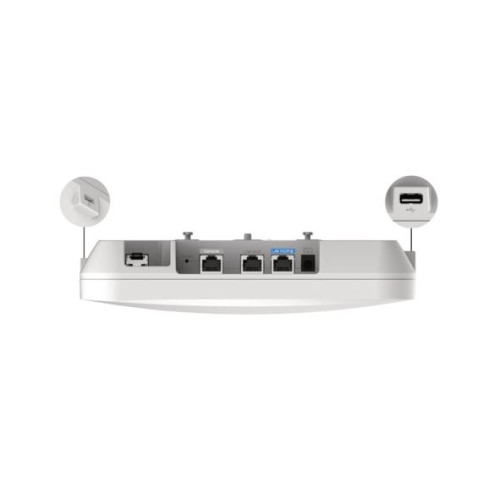

• Fixed Service Ports:
  - 1x 100/1000/2.5G/5GBASE-T port

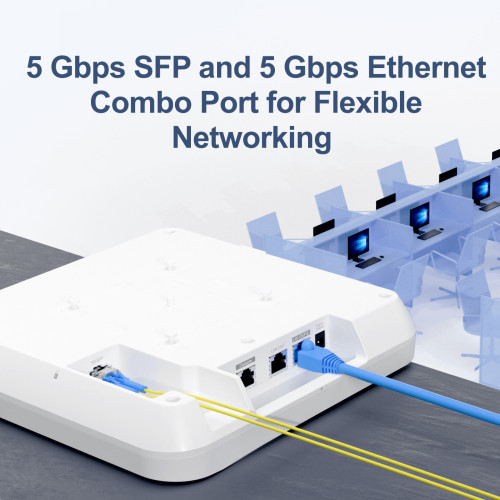

  - 1x 5GE SFP/RJ45 combo port
  - 1x 10/100/1000BASE-T port
• Fixed management port: 1x RJ45 console port (serial console port)
• USB:  USB 3.0 (Type-A connector)
• 1x Reset button
• Lock option: Kensington lock & securing latch
• Status LED: 1x multi-color system status LED
• Bluetooth 5.1
• Input Power Supply:
  - 54V DC/1.1 A power supply
  - PoE/PoE+/PoE++ (802.3af/at/bt)
• Max. Power Consumption: 40 W
• External Power Supply support: Yes

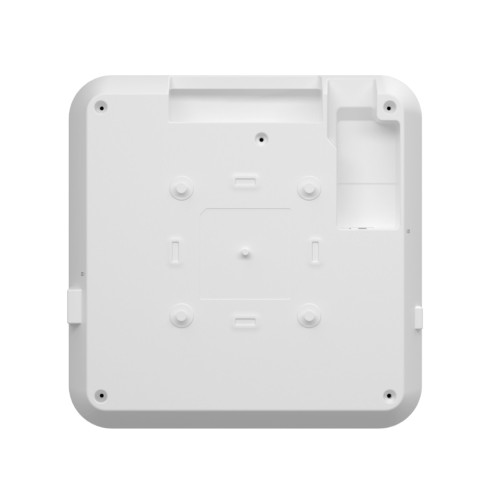

• Mounting: Wall/Ceiling-mount (mounting bracket included)

Radio Design:

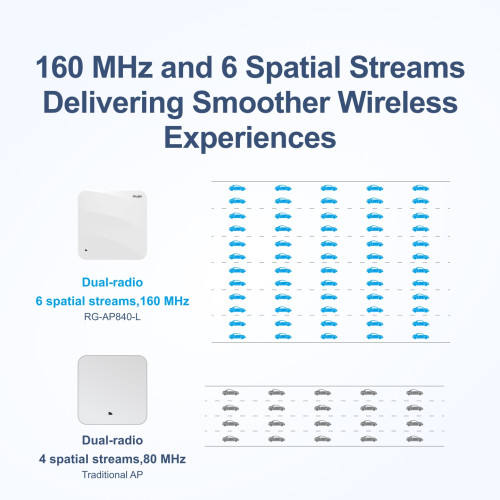

• Dual-radio and up to six spatial streams:
  - Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO
  - Radio 2: 5 GHz, four spatial streams, 4x4 MU-MIMO
• Built-in omnidirectional antennas (two 2.4 GHz antennas and four 5 GHz antennas)
• Antenna gain: 2.4 GHz: 5 dBi - 5 GHz: 6 dBi

Software Specifications:

• Applicable software version RGOS11.9(6)W3B3 or higher

WLAN:

• Recommended maximum number of active devices per AP: 150
• Maximum number of associated clients: 1024
• Maximum number of BSSIDs: 32 (up to 16 BSSIDs per radio)
• STA management:
  - SSID hiding
  - Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently
• STA management:
  - Remote intelligent perception technology (RIPT)
  - Intelligent client identification technology
  - Intelligent load balancing based on the STA quantity or traffic
• STA limiting:
  - SSID-based STA limiting
  - Radio-based STA limiting
• Bandwidth limiting: STA/SSID/AP-based rate limiting
• Wireless roaming: Layer 2 and Layer 3 roaming

Security:

• Authentication & encryption:
  - Remote Authentication Dial-In User Service (RADIUS)
  - PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication
  - SMS authentication (used with the RG-WS series wireless access controller)
  - MAB authentication (used with the RG-WS series wireless access controller)
  - WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal
  - (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-Enterprise (GCMP), WPA3-OWE
• Data frame filtering: Allowlist, static blocklist, and dynamic blocklist
• Dynamic ACL assignment
• CPP: Supported
• NFPP: Supported

Routing & Switching:

• IP service:
  - Static IPv4 address and DHCP-assigned IPv4 address
  - NAT, FTP ALG, DNS ALG
• Multicast-to-unicast conversion
• IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping
• IPv6 DHCP Client
• IP routing: IPv4/IPv6 static routing
• VPN: PPPoE Client, IPsec VPN

Management:

• Network management:
  - Fault inspection and alarm
  - Information statistics and logging
  - SNMPv1/v2c/v3
  - NTP Server and NTP Client
• Network management platform:
  - Ruijie Cloud
  - Web-based management (Eweb)
• User access management: Console, Telnet, SSH, SNMP, and TFTP-based management
• Fat/Fit/Cloud mode switchover:
  - When the AP works in Fit mode, it can be switched to Fat mode through an AC
  - When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet
  - When the AP works in Cloud mode, it can be managed through Ruijie Cloud

Environment & Reliability:

• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 5% RH to 95% RH (non-condensing)
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Altitude range: 3.000 - 5.000 m
• Mean Time Between Failure (MTBF): 394,941 hours (45 years)

Dimensions & Weight:

• Unit dimensions (WxDxH): 230 x 230 x 51 mm
• Unit weight: 1.0 kg, mounting bracket: 0.1 kg
• Package dimentions (LxWxH): 256 x 240 x 77 mm
• Package weight: 1.25 kg
• Shipping dimensions (LxWxH): 535 x 406 x 269 mm
• Shipping weight: 13.67 kg
• Shipping Qty: 10 pcs
