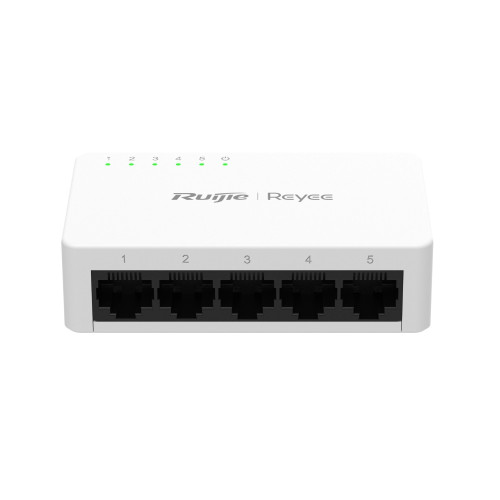

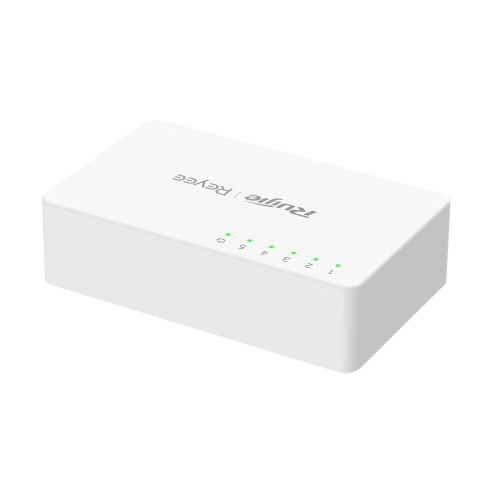

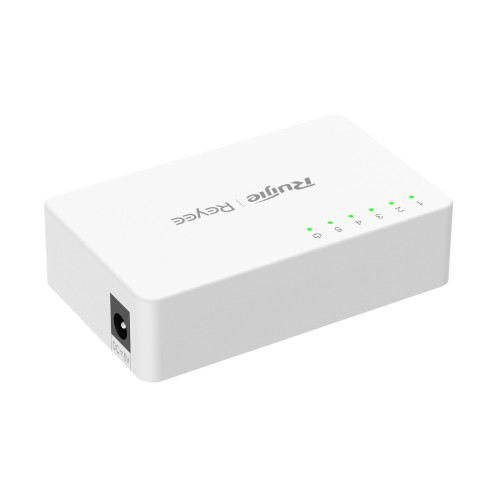

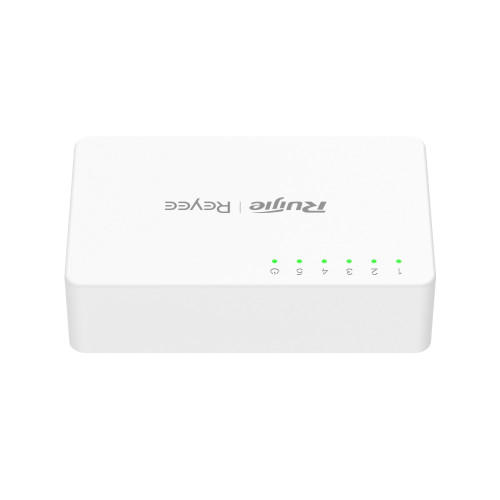

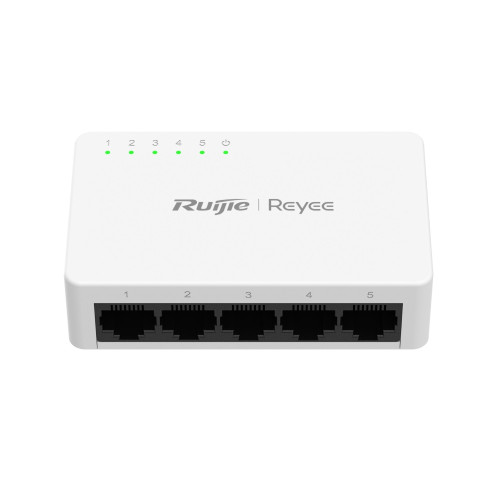

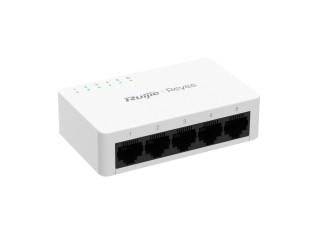

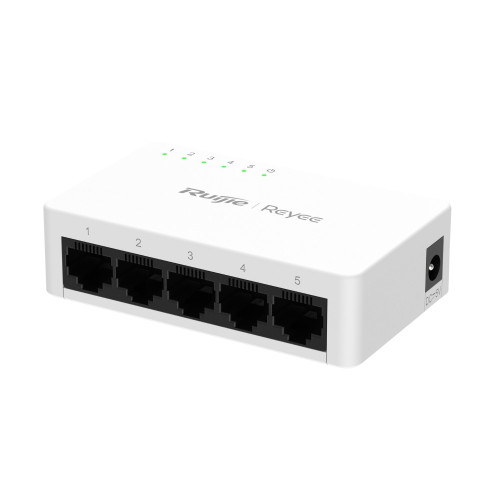

Ruijie-Reyee RG-ES05F 5-Port 10/100 Mbps Unmanaged Switch

The Ruijie-Reyee real-easy RG-ES0 series of unmanaged switches offers desktop switches tailored for small enterprises, small-scale surveillance and SOHO, which consists of a total of 4 different models to meet the network needs of small enterprise customers. The switches feature plug & play, zero configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc. to offer fast deployment experience.

Highlights:

• 5-port 10/100 Mbps unmanaged non-PoE switch
• Unmanaged switch, which is visible on Ruijie Cloud
• High network reliability
• Applicable to various scenarios

Key Features & Benefits of the RG-ES05F 5-Port unmanaged Non-PoE Switch:

• Casing: Plastic
• Color: White

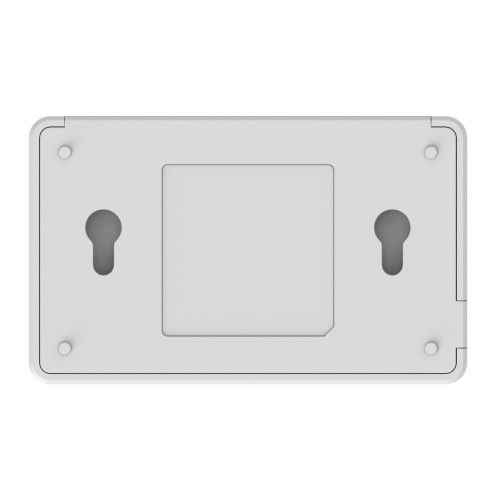

• Mounting: Wall-mount & Desktop
• Layer Type: L2

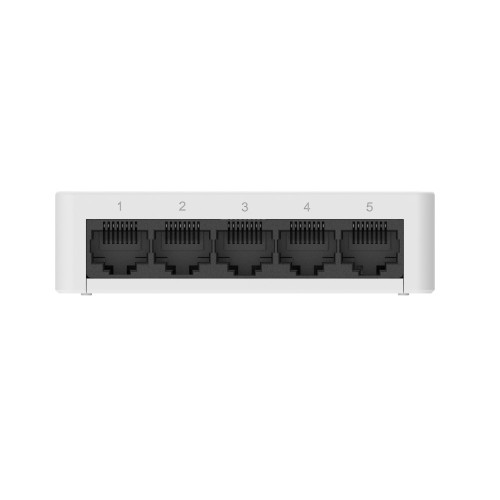

• 5x 10/100 Base-T ports
• Switching Capacity: 1 Gbps
• Forwarding Rate: 0.744Mpps
• Auto/Full/Half Duplex Negotiation
• Auto MDI/MDIX
• Fanless operation
• Acoustic Noise Level: Noiseless
• Buffer Size: 768Kbits
• Flash Memory: 1MB
• Mean Time Between Failure (MTBF): >200K
• Safety Compliance: EN 62638-1
• Cable Hot-Swappable: Supported by all ports
• Power Supply:
  - AC input Rated voltage range: 100V to 240V
  - Maximum voltage range: 90V to 264V
  - Frequency: 50/60 Hz
  - Rated current: 0.3A

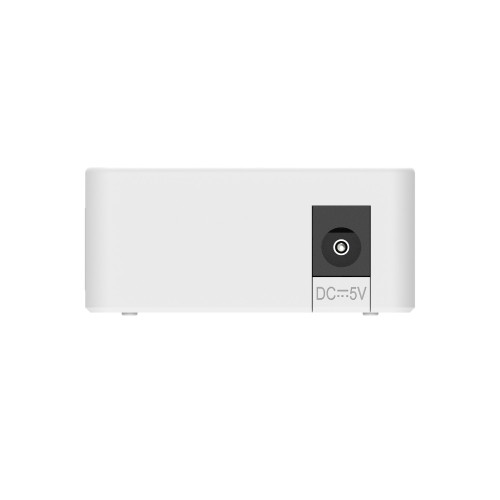

  - Adapter output Rated voltage range: 5V DC
  - Rated current range: 1A
• Maximum power consumption: ≤1.4W
• Port Surge Protection: Common Mode 4KV
• Power Supply Surge Protection:
  - Common Mode：2KV
  - Differential mode: 1KV
• Operating Temperature: 0 to 45°C
• Storage Temperature: -40℃ to 75℃
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Humidity: 5% to 95% RH (non-condensing)
• Electrostatic Discharge (ESD) Protection:
  - Air Discharge: 8KV
  - Contact Discharge: 6KV

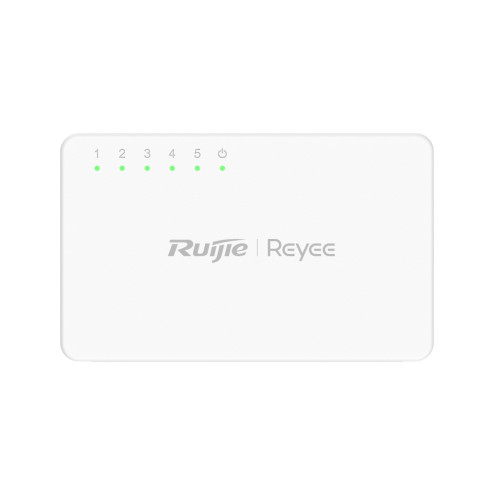

• LEDs: SYS (Green), Per RJ45 Port LINK/ACT (Green)
• Operating Altitude: -500~5000M
• Unit Dimensions (LxWxH): 85 x 52 x 23.5mm
• Unit Weight: 0.049kg
• Package Dimensions (LxWxH): 168 x 82.2 x 58mm
• Package Weight: 0.14kg
• Carton Box Dimensions (LxWxH): 524 x 326 x 206mm
• Carton Box Weight: 6.72kg
• Carton Box Qty: 30pcs
• Certification: CE, RoHS
• 3 Year Warranty

Package Contents:

• RG-ES05F
• User Manual
• Power adapter
• Warranty Card

​

​
