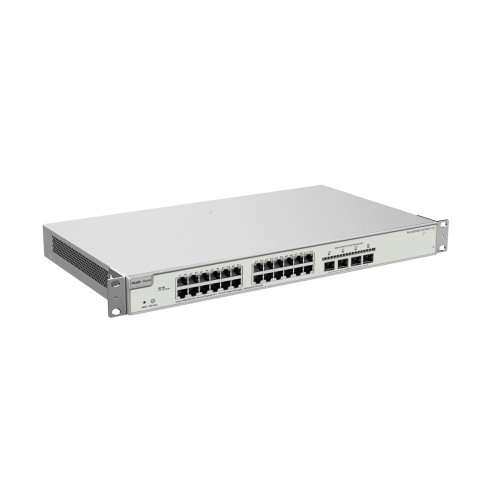

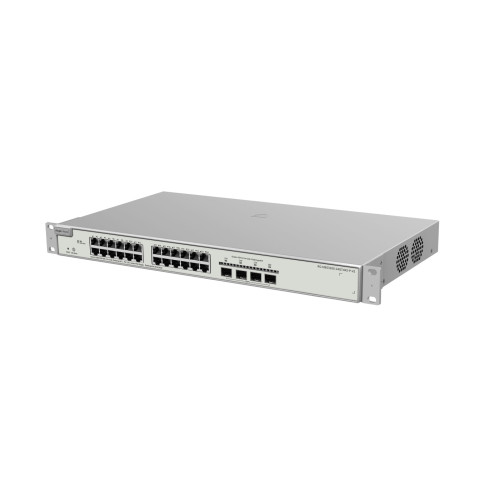

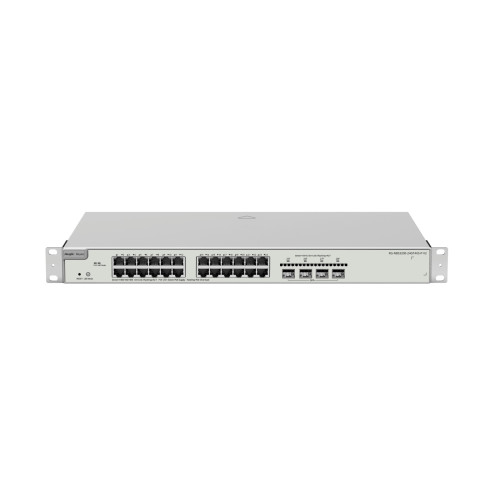

Ruijie-Reyee RG-NBS3200-24GT4XS-P-V2 24-Port Gigabit L2+ Cloud Managed PoE Switch with 24 Gigabit PoE/PoE+ Ports and 4 (10GE) SFP+ Uplink Ports

The Ruijie-Reyee RG-NBS3200-24GT4XS-P-V2 is a next-generation Ethernet switch featuring high performance, high security, and multi-service integration. Adopts an efficient hardware architecture design for more table entries, higher hardware performance, and more convenient experience. The RG-NBS3200-24GT4XS-P-V2 provides 24 Gigabit Ethernet Ports and 4 fixed (10G) SFP+ access uplink ports, ensuring high-performance upstream data transmission. By offering sound end-to-end service quality, plus rich security settings for the medium- and small-sized networks in an extremely cost-effective manner, the switch can meet the requirements of enterprise networks for high speed, security, and intelligence.

Key Features & Benefits:

• 24-Port Gigabit Layer 2+ Cloud Managed PoE Switch with 4 SFP+ Uplinks
• Enterprise-Class Quality and Features, Delivering Exceptional Performance
• Multiple Security Policies, Protecting Your Network
• IP Camera Recognition, Unique Value for CCTV Network
• Lifetime Free Cloud Management on Ruijie Cloud at Anytime, Anywhere
• 5 Year Warranty

Specifications:

• Model: RG-NBS3200-24GT4XS-P-V2
• Casing: 19-inch Rack-mountable Steel Case
• Product Category: Layer 2+
• 24x 10/100/1000Base-T PoE/PoE+ ports
• 4x (10GE) SFP+ uplink ports
• Service ports support hot swapping of cables
• 1x Reset Button
• Switching capacity: 128 Gbps
• Forwarding rate: 96 Mpps
• PoE(802.3af)/PoE+(802.3at)
• Max. PoE budget: 370W
• PoE power pins: 1–2 (+), 3–6 (-)
• Power supply: Fixed power supply 100 to 240V AC - 6A, 50/60 Hz
• Max. power consumption: 30W (with no PoE load), 430W (with full PoE load)
• LED:
  1x SYS status LED
  1x LED Mode LED
  24x 10/100/1000BASE-T port status LEDs
  4x SFP+ port status LEDs

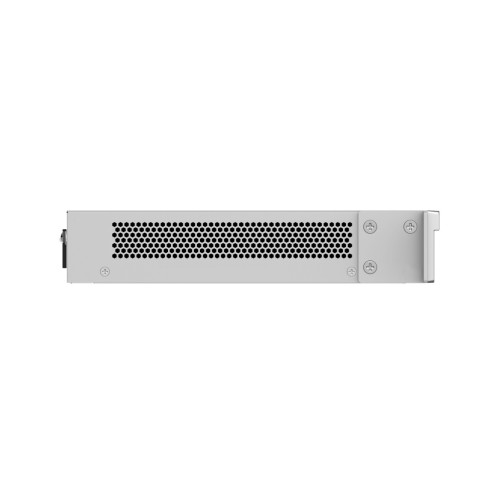

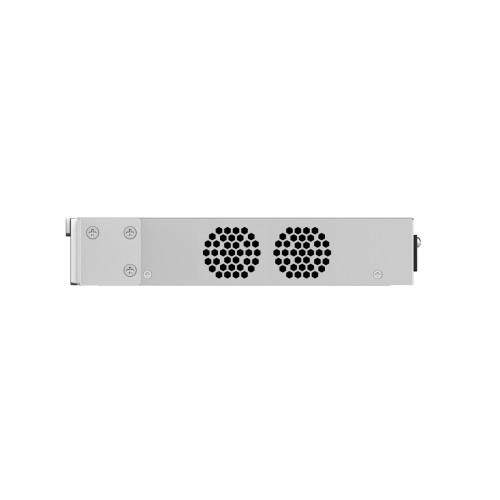

• Cooling: 2x Fixed Fans, side-to-rear airflow
• Fan speed adjustment: Intelligent speed adjustment
• Acoustic noise:
  23℃ (73.4°F)：32 dB (with half PoE load)
  50℃ (122°F)：49 dB (with full PoE load)
• CPU: MAC chip, single-core processor, 800 MHz clock frequency per core
• RAM: 512 MB, Flash 256 MB
• Port surge 6 kV
• Certification & Regulatory Compliance:
  EMC: EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 300 386
  Safety compliance: IEC 62368-1
  Certification: CE

Software Specifications:

• Authentication:
  RADIUS
  802.1X authentication
  Port-based 802.1X authentication
  MAC address-based 802.1X authentication
  Guest VLAN
• Basic Configurations:
  PoE watchdog
  Online upgrade
• Ethernet Switching:
  Maximum No. of VLANs: 4094
  Maximum No. of MAC address entries: 16000
  Interface flow control
  IEEE 802.1Q VLAN
  VLAN configuration supported on LAN ports
  Voice VLAN
  STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
  LLDP, LLDP-MED
  Static MAC address, MAC address filtering
  Static aggregation, LACP
  Inbound or outbound rate limiting based on interface traffic
• Gateway Features:
  802.1p priority-based traffic classification
  DSCP priority-based traffic classification
  Egress queues based on 802.1p and DSCP priorities
  SP, WRR, SP+WRR, Global QoS
• Interface:
  Jumbo frame length (MTU): 9216 bytes (interface configuration mode)
  EEE, Cable test
• IP Service:
  Max. No. of ARP entries: 1000
  IPv4 routing table size (host route): 6000
  ARP, IPv4 ping, IPv4 traceroute
  ICMPv6, IPv6 ping, IPv6 traceroute
  DNS client, DNSv6 client
  DHCP relay, DHCP client
• IP Routing:
  Max. No. of IPv4 static routes: 64
  IPv6 routing table size (network route): 128
  Max. No. of IPv6 static routes: 64
  IPv4 static route, IPv6 static route
• Multicast:
  IGMPv1 snooping, IGMPv2 snooping
  Basic IGMPv3 snooping, Full IGMPv3 snooping, IGMP filtering
• Network Management & Monitoring:
  Port mirroring, Mirroring
  HTTP login, HTTPS login
  RLOG, SON, Syslog
  Client auto-discovery
  Camera detection
  Loop alarm
  MAC address entries
  IP address pool conflicts
  Full ARP table
  eWeb management
  Ruijie Cloud management
  Ruijie Reyee App management
  SNMPv1, v2c, and v3
• Reliability:
  System dual backup
  Enabling dual backup for the partition Uboot (based on a single flash memory)
  ERPS
• Security:
  Maximum number of ACEs:
  No. of ACEs in the inbound direction of an interface: 1900
  No. of ACEs in the outbound direction of an interface: 0
  Port isolation Broadcast storm control
  Multicast storm control
  Unknown unicast storm control
  DHCP snooping
  Standard ACL, Extended MAC ACL, Extended IP ACL, IPv6 ACL
  IP-MAC-port binding
  ARP anti-spoofing
  IP source guard
  CPU Protection Policy
• System Performance:
  Recommended camera limit:
  - 200 W H265: 280
  - 400 W H265: 140

Dimensions & Weight:

• Unit Dimensions (WxDxH): 440mm x 222.6mm x 44mm
• Unit Weight: 2.88 kg
• Package Dimensions (WxDxH): 573 x 468 x 165mm
• Weight (With package) 4 kg
• Operating temperature 0°C to 40°C
• Operating humidity 10% to 90% RH
• MTBF: 400,000 hours
• Operating altitude: 0m to +5,000 m (0 ft. to +16,404.20 ft.)

Package Contents:

• RG-NBS3200-24GT4XS-P-V2
• Rubber pad x4
• Power cord 1x 1.5 m (4.92 ft.)
• Power cord retention clip x1
• M4x8 mm cross recessed countersunk head screws x6
• Grounding cable 1x 1m (3.28 ft.)
• Rack-mount bracket: x2
• User Manual
• Warranty Card
