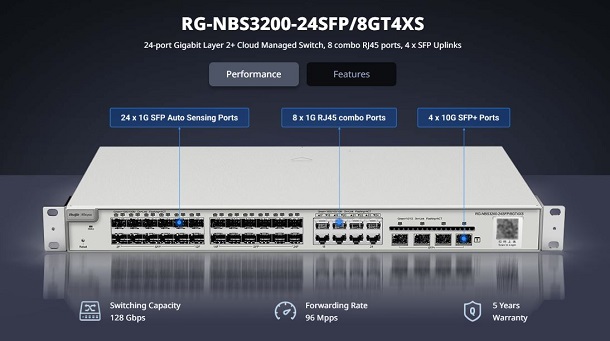

Ruijie-Reyee RG-NBS3200-24SFP/8GT4XS 24-Port SFP L2 Managed Switch with 24 SFP Slots, 8 Gigabit Combo Ports and 4 (10G) SFP+ Slots

The RG-NBS3200-24SFP/8GT4XS is a 24-Port Gigabit SFP Layer 2 Μanaged non-PoE Switch with 8 Combo RJ45 Ports and 4 (10G) SFP+ Uplink Slots. RG-NBS3200 series switch is a new generation of high-performance, strong security and integrated multi-service layer 2 Ethernet switch launched by Reyee. This series of switches adopts an efficient hardware architecture design, providing larger entry specifications and faster Hardware processing performance, more convenient operation experience. The RG-NBS3200 series provides flexible Gigabit access to 10 Gigabit uplink ports. The entire series of switches all have 4-port 10 Gigabit optical and high-performance port uplink capabilities.

Benefits:

• 24-Port gigabit SFP Layer 2 Managed non-PoE Switch, 8 Combo RJ45 Ports, 4 (10G) SFP+ Uplink Slots
• Enterprise-class Quality Ensures High Performance
• IP Camera Recognition, Unique Value for CCTV Network
• Multiple Security Policies Protect Your Network
• Lifetime management on Ruijie Cloud, monitor switch statistics at anytime anywhere
• SON, zero touch provisioning to Cloud
• Configure VLANs on Ruijie Cloud APP
• Easy maintainance, save onsite time and cost

Key Features:

• 8x 10/100/1000Base-T Combo Ports
• 24x SFP, 4 SFP+ (10G) uplink ports
• Switching capacity: 128 Gbps
• MAC address table: 16000
• MTBF: >200,000
• Forwarding rate: 95.24 Mpps
• Maximum VLAN: 4094
• Port surge 6 kV
• Jumbo Frame (MTU): 9216
• Link Aggregation Group (LAG): 16
• ACL: 1900
• STP/RSTP
• Auto Errdisable Recovery
• Voice VLAN
• LLDP/LLDP-MED
• IGMP Snooping v1/v2
• CPP
• EEE
• Syslog
• Fixed Power supply, 100-240V AC, 2A
• Fan airflow: Left-to-Rear
• Dimensions (WxDxH) 440mm x 267.5mm x 43.6mm
• Weight (With package) 3.35kg
• Operating temperature 0°C to 40°C
• Operating humidity 10% to 90% RH
• 19-inch Rack-mountable Steel Case
• 5 Year Warranty
