Ruijie-Reyee RG-AirMetro550G-B 5GHz Dual-Stream Wireless Bridge Base-Station

The RG-AirMetro550G-B is a Wireless Bridge Base Station that utilizes the IEEE 802.11ac standard for efficient and reliable communication, operating in the 5 GHz band and supporting 2×2 MIMO technology. Offers 2 Gigabit Ethernet service ports and delivers a maximum wireless rate up to 867 Mbps at 5 GHz for bridging, ensuring more than sufficient bandwidth for delivering point to point (PTP) and point to multi-point (PTMP) services (Max.1 to 32 PTMP). When mounted vertically, this wireless bridge can be adjusted within a range of ±15 to 20 degrees, while when mounted horizontally, it can be adjusted along with the antenna. The RG-AirMetro550G-B establish a mesh connection with other wireless bridges in 30 seconds by a simple press of the WPS button on this device.

Highlights:

• Up to 10 km Wireless Transmission Distance
• MAX. 1:32 PTMP Links, Easy Pairing in 30 sec
• 2x GE Ports: More Possibilities of Connections
• 24V Passive PoE and 12V DC Input: Solar Power Supply
• IP55, 6 kV Surge Protection and ±24 kV ESD against Harsh Environment
• All-in-one Cloud Management Simplifies the User Journey
• 3 Year Warranty

Key Features & Benefits:

• Product Type: Base Station of RG-AirMetro series wireless bridges
• Antenna:
  2.4 GHz: 1 x 1 Built-in omnidirectional antenna
  Note: The 2.4 GHz band is used for device management.
  External antennas are required for data transmission between bridges.
• Antenna gain (2.4 GHz): 3 dBi

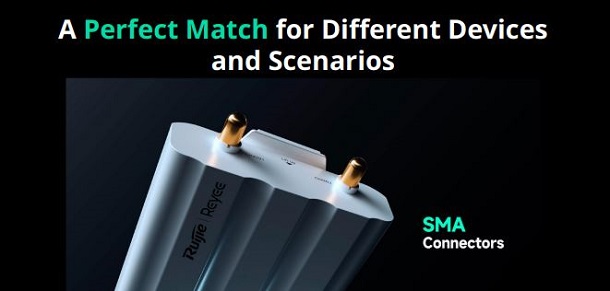

• Third-party antenna: Yes

System Specifications:

• Dual-core processor, 880 MHz clock frequency per core
• Flash memory: 16 MB
• RAM: 128 MB DDR3

Port Specifications:

• Number of fixed LAN ports: x2
• Number of RJ45 10/100/1000BASE-T ports: x2
• Reset button: x1
• LEDs:
  1x System status LED
  3x Ethernet port LED
  3x Signal status LEDs

Power Supply & Consumption:

• Power supply options: DC power adapter, Passive PoE adapter
• Passive PoE adapter:
  Rated input voltage: 100V AC - 240V AC, 50 - 60 Hz
  Rated input current: 0.5 A Max
  Rated output voltage: 24 V DC
  Max. output current: 0.6 A
• Number of PoE In ports: 1
• Local power supply: One DC power connector (12V, 1A)
• Dimensions of the DC connector:
  - Outer Diameter: 5.50 mm ± 0.05 mm (0.22 in. ± 0.002 in.)
  - Inner Diameter: 2.10 mm ± 0.05 mm (0.08 in. ± 0.002 in.)
  - Depth: 9 mm (0.35 in.)
• Max. power consumption: 12W

Wi-Fi Radio design:

• Dual-radio
• 3 spatial streams:
  Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
  Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
• Operating band:
  IEEE 802.11b/g/n: 2.400 GHz to 2.483 GHz
  IEEE 802.11a/n/ac: 5.150 GHz to 5.350 GHz
  IEEE 802.11a/n/ac: 5.470 GHz to 5.725 GHz
  IEEE 802.11a/n/ac: 5.725 GHz to 5.850 GHz
• Wi-Fi standard: Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/b/g/n standards
  2.4 GHz Wi-Fi Wi-Fi 4 (IEEE 802.11b/g/n)
     5 GHz Wi-Fi: Wi-Fi 5 (IEEE 802.11ac)
• Channel width:
  2.4 GHz: Auto/20/40 MHz
     5 GHz: Auto/20/40/80 MHz
• Transmission rate:
  Max, wireless data rate: 1166 Mbps
  Radio 1: 2.4 GHz, 300 Mbps
  Radio 2:     5 GHz, 866 Mbps
• Max. transmit power EU & UK:
• 2400 - 2483.5 MHz, EIRP ≤ 20 dBm
• 5470 - 5725 MHz, EIRP ≤ 30 dBm
• Max. transmit power (2.4 GHz): Combined power: 20 dBm (single stream power: 20 dBm)
• Max. transmit power (5 GHz): Combined power: 29 dBm (single stream power: 26 dBm)
• Receive sensitivity:
  802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps)
  802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
  802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
  802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
  802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9)
  802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
• Modulation:
  802.11b: BPSK, QPSK, CCK
  802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  Highest QAM order: 256

IP Service:

• IPv4 ping, IPv4 traceroute
• DHCP server, DHCP client
• Security: Broadcast storm control
• Ethernet Switching:
• Interface rate: 10/100/1000 Mbps auto-negotiation
• VLAN

Network Management & Monitoring:

• SON
• AI heatmap
• Network-wide management SSID configuration
• Network connection through the management SSID
• Ruijie Cloud management
• Restarting devices through Ruijie App
• SNMPv1, v2c, and v3
• Fault diagnosis: support for network tools (ping, traceroute, and nslookup), fault alarms, and fault collection
• Restart cause prompt
• Disconnection cause prompt
• Cloud alarms on DFS signal detection

Basic Configurations:

• eWeb login with the username & password
• Local upgrade
• Configuration backup
• System language
• System time settings

WLAN:

• BaseStation/CPE mode switching
• Enhanced one-to-many transmission (TDMA)
• Bridge SSID hiding
• WPA2-PSK encryption
• Recommended channel
• Bridge speed test
• Configuring a security key for network-wide bridges
• Configuring a security key for a single bridge group
• Configuring a security key for a single bridge
• Bridge SSID, channel, and power configuration
• WMM
• Recommended PTMP connections: 16

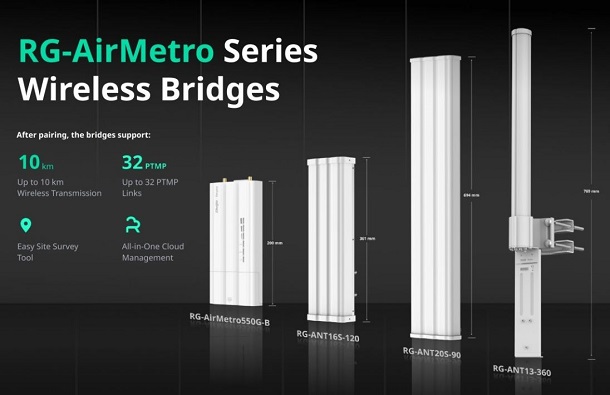

• Max. bridge distance:

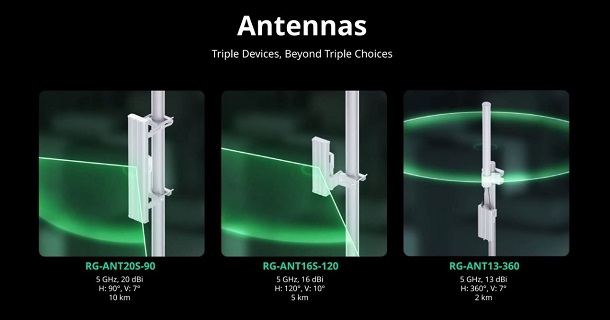

•   2 km (1.24 miles) (installing the device on the RG-ANT13-360)
•   5 km (3.11 miles) (installing the device on the RG-ANT16S-120)
• 10 km (6.21 miles) (installing the device on the RG-ANT20S-90)

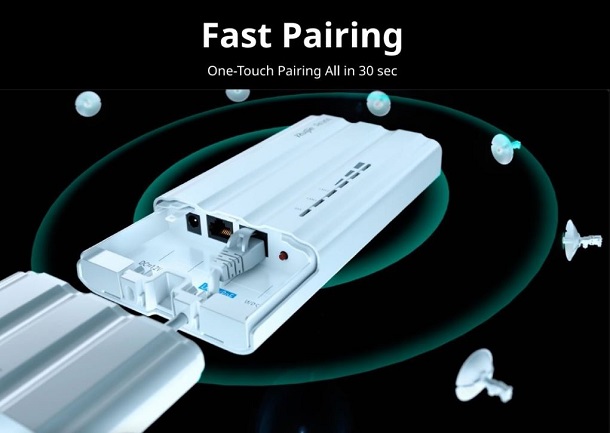

• One-touch pairing
• Max. effective distance of one-touch pairing: 5m (16.4 ft.)

Bridge performance:

• Installing the device on the RG-ANT13-360：
  179 Mbps/1 km (0.62 miles) (HT40)
  111 Mbps/2 km (1.24 miles) (HT40)
• Installing the device on the RG-ANT16S-120：
  204 Mbps/1 km (0.62 miles) (HT40)
  153 Mbps/3 km (1.86 miles) (HT40)
    94 Mbps/5 km (3.11 miles) (HT40)
• Installing the device on the RG-ANT20S-90：
  204 Mbps/3 km (1.86 miles) (HT40)
  153 Mbps/5 km (3.11 miles) (HT40)
    77 Mbps/10 km (6.21 miles) (HT40)

RSSI:

• Installing the device on the RG-ANT13-360：
  -64 dBm/1 km (0.62 miles)
  -70 dBm/2 km (1.24 miles)
• Installing the device on the RG-ANT16S-120：
  -58 dBm/1 km (0.62 miles) (HT40)
  -66 dBm/3 km (1.86 miles) (HT40)
  -72 dBm/5 km (3.11 miles) (HT40)
• Installing the device on the RG-ANT20S-90:
  -60 dBm/3 km (1.86 miles) (HT40)
  -66 dBm/5 km (3.11 miles) (HT40)
  -73 dBm/10 km (6.21 miles) (HT40)

Recommended number of connected cameras (3 Mbps):

• Installing the device on the RG-ANT13-360：
  41/1 km (0.62 miles)
  26/2 km (1.86 miles)
• Installing the device on the RG-ANT20S-120：
  47/1 km (0.62 miles)
  35/3 km (1.86 miles)
  22/5 km (3.11 miles)
• Installing the device on the RG-ANT20S-90：
  47/3 km (1.86 miles)
  35/5 km (3.11 miles)
  18/10 km (6.21 miles)

Recommended number of connected cameras (4-5 Mbps):

• Installing the device on the RG-ANT13-360：
  25/1 km (0.62 miles)
  15/2 km (1.24 miles)
• Installing the device on the RG-ANT16S-120：
  28/1 km (0.62 miles)
  21/3 km (1.86 miles)
  13/5 km (3.11 miles)
• Installing the device on the RG-ANT20S-90:
  28/3 km (1.86 miles)
  21/5 km (3.11 miles)
  10/10 km (6.21 miles)

Recommended number of connected cameras (6-7 Mbps):

• Installing the device on the RG-ANT13-360：
  18/1 km (0.62 miles)
  11/2 km (1.24 miles)
• Installing the device on the RG-ANT16S-120：
  20/1 km (0.62 miles)
  15/3 km (1.86 miles)
    9/5 km (3.11 miles)
• Installing the device on the RG-ANT20S-90:
  28/3 km (1.86 miles)
  21/5 km (3.11 miles)
  10/10 km (6.21 miles)

Recommended number of connected cameras (7-8 Mbps code streams):

• Installing the device on the RG-ANT13-360：
  15/1 km (0.62 miles)
    9/2 km (1.24 miles)
• Installing the device on the RG-ANT16S-120
  17/1 km (0.62 miles)
  13/3 km (1.86 miles)
    8/5 km (3.11 miles)
• Installing the device on the RG-ANT20S-90
  17/3 km (1.86 miles)
  13/5 km (3.11 miles)
    6/10 km (6.21 miles)
• Real-time signal strength
• Optimal signal strength
• Active/Standby channel
• Restoring to the active channel
• Max. number of devices on the SON: 200

Environment & Reliability

• Operating temperature: –40°C to +80°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5% to 95% (non condensing)
• Storage humidity: 5% to 95% (non condensing)
• Operating altitude: -500 m to +5,000 m
• Storage altitude: -500 m to +5,000 m
• MTBF: 400,000 hours (about 45 years)
• ESD protection (Standard test):
  - Contact discharge =24 kV, Air discharge =24 kV, Class B
• Surge protection:
  - Service port: ±6 kV for common mode
  - Power connector: ±4 kV for common mode and ±2 kV differential mode
• Cooling: Natural cooling
• IP rating: IP55
• Mounting options: Pole

Dimensions & Weight:

• Unit Dimensions (LxWxH): 200 x 98.5 × 29 mm (excluding mounting bracket)
• Unit Weight: 0.31 kg
• Package Dimension (LxWxH) 255 x 209.5 x 61 mm
• Package Weight 2.68 kg

Certification & Regulatory Compliance:

• Safety compliance: EN62368-1
• EMC: EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1, EN 301489-3, EN 301489-17
• Certification: CE, FCC, CB, ISED, cTUVus

​ PartnerNet-Ruijie-Reyee RG-AirMetro550G-B Base Station Datasheet

Package Contents:

• 1x RG-AirMetro550G-B Wireless Bridge BS
• 1x Power Adapter for Passive PoE Input, 24V, 0.5A
• 1x Power Cord
• 1x UserManual
• 1x Warranty Card

















































































































































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Wireless Bridge
Τεχνολογία	802.11a/b/g/n/ac
Aggregate Wireless Throughput	867Mbps
Antenna	Single-band 2x2 MIMO
Bridging Distance	10 km
Embedded Controller	ΝΑΙ
Ethernet Port	Gigabit
POE	ΝΑΙ
Wireless	ΝΑΙ
Εγγύηση	3 Χρόνια
