Ruijie-Reyee RG-EST350 V2 5GHz 15dBi Single-Band Dual-stream 802.11ac 5Km Outdoor Wireless Bridge, includes PoE Adapters

The RG-EST350 V2 is a Dual-stream 802.11ac 5 km wireless bridge that provides surveillance video backhaul function. The bridge works in the 5 GHz frequency band, supports two spatial streams with 2 x 2 MIMO, and provides a wireless link speed of up to 866 Mbps. The design of RG-EST350 V2 adapts to inclement outdoor environments such as the cold and humidity. This substantially simplifies installation and maintenance.

Highlight Features:

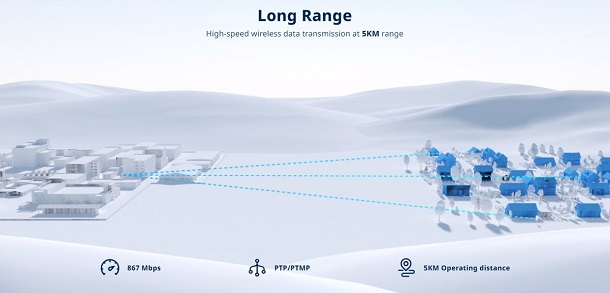

• RG-EST350 V2 can easily transmit data from 5KM away in real time
• Factory-paired bridges for long-distance installation, without complex alignment

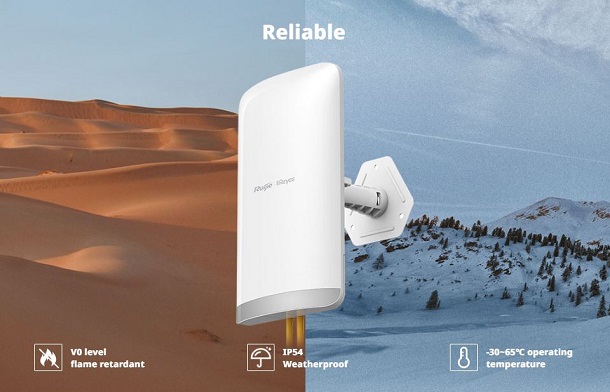

• IP54 Weatherproof, -30℃~65℃ guarantee stable operating

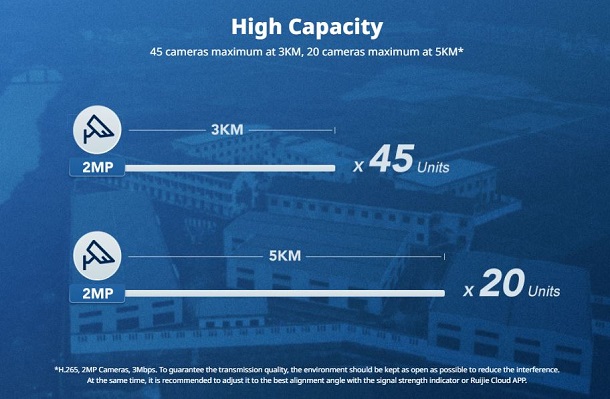

• Support maximum 45 * 2MP cameras loading at 3KM, 20 * 2MP cameras loading at 5KM
• Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
• 3 Year Warranty

Key Features & Benefits:

• Product Type: Bridge
• 5 GHz: 2x2 Built-in directional antenna, horizontal: 31°, vertical: 14°
• Antenna gain (5 GHz): 10 dBi
• Antenna horizontal orientation: 31°
• Antenna vertical orientation: 14°

System Specifications:

• CPU: Dual-core processor, 880 MHz clock frequency per core
• Flash memory: 8 MB
• RAM: 128 MB DDR2

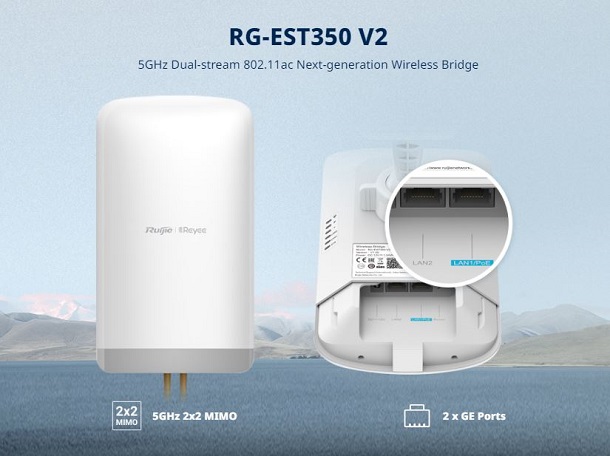

Port Specifications:

• LAN1/PoE Port: RJ45 10/100/1000BASE-T Ethernet port, supports 24V / 0.6A PoE
• LAN2 Port: RJ45 10/100/1000BASE-T Ethernet port
• 12V DC Port: Supports 12V / 1A DC power supply
• Reset Button
• LEDs:
  1x system status LED
  1x Ethernet port LED
  3x signal status LEDs

Power Supply & Consumption:

• Power supply options: DC power adapter/Passive PoE injector
• Passive PoE injector:
  - Rated input voltage: 100V AC to 240V AC, 50 Hz to 60 Hz
  - Rated input current: 0.5 A Max
  - Rated output voltage: 24 V DC
  - Max. output current: 0.6A
• Local power supply: one DC power connector (12V, 1A)
• Dimensions of the DC connector:
  - Outer Diameter: 5.50 mm ± 0.05 mm
  - Inner Diameter: 2.10 mm ± 0.05 mm
  - Depth: 9 mm
• Max. power consumption: 9W

Wi-Fi Radio design:

• Single-radio
• 2 spatial streams
• Radio 1: 5 GHz, 2 spatial streams: 2 x 2, MIMO
• Operating band:
  IEEE 802.11a/n/ac: 5.150 GHz to 5.350 GHz
  IEEE 802.11a/n/ac: 5.470 GHz to 5.725 GHz
  IEEE 802.11a/n/ac: 5.725 GHz to 5.850 GHz
• Wi-Fi standard: Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/n standards
• 5 GHz Wi-Fi: Wi-Fi 5 (IEEE 802.11ac)
• 5 GHz channel width: Auto/20/40/80 MHz
• Transmission rate:
  - Max, wireless data rate: 866 Mbps
  - Radio 1: 5 GHz, 866 Mbps
• Max. transmit power: EU & UK:
  2400 - 2483.5 MHz, EIRP ≤ 20 dBm
  5470 - 5725 MHz, EIRP ≤ 30 dBm
• Max. transmit power (5 GHz): Combined power: 29 dBm (single stream power: 26 dBm)
• Receive sensitivity:
  802.11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
  802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
  802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
  802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9)
  802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
• Modulation:
  802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Highest QAM order: 256

IP Service:

• IPv4 ping
• IPv4 traceroute
• DHCP server
• DHCP client

Ethernet Switching: Interface rate: 10/100/1000 Mbps auto-negotiation, VLAN
Security: Broadcast storm control

Network Management & Monitoring:

• SON
• Network-wide management SSID configuration

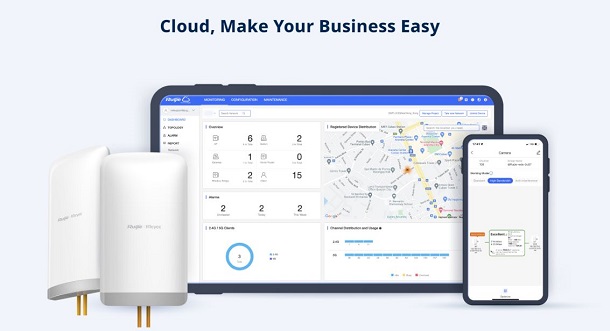

• Ruijie Cloud management
• Restarting devices through Ruijie Reyee App
• Fault diagnosis: support for network tools (ping, traceroute, and nslookup), fault alarms, and fault collection

Basic Configurations:

• eWeb login with the username and password
• Local upgrade
• Configuration backup
• System language
• System time settings

WLAN:

• BaseStation/CPE mode switching
• Bridge SSID hiding
• WPA2-PSK encryption
• Recommended channel
• Bridge speed test
• Configuring a security key for network-wide bridges
• Configuring a security key for a single bridge group
• Configuring a security key for a single bridge
• Bridge SSID, channel, and power configuration
• WMM
• Max. PTMP connections: x3
• Max. bridge distance: 5 km (3.11 miles)

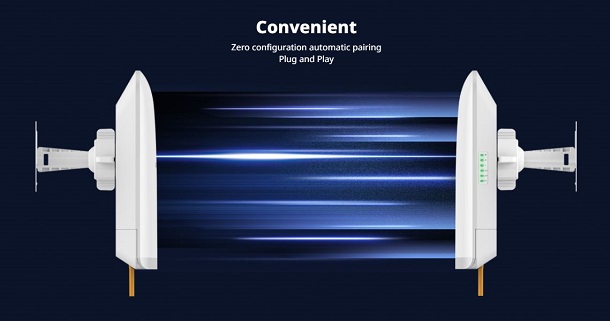

• One-touch pairing
• Max. effective distance of one-touch pairing: 50 m (160.04 ft.)
• Bridge performance:
  230 Mbps/1 km (0.62 miles) (HT40)
  200 Mbps/3 km (1.86 miles) (HT40)
  150 Mbps/5 km (3.11 miles) (HT40)
• RSSI:
  -58 dBm/1 km (0.62 miles)
  -66 dBm/3 km (1.86 miles)
  -70 dBm/5 km (3.11 miles)
• Recommended number of connected cameras (3 Mbps):
  50/1 km (0.62 miles)
  45/3 km (1.86 miles)
  20/5 km (3.11 miles)
• Recommended number of connected cameras (4-5 Mbps):
  30/1 km (0.62 miles)
  25/3 km (1.86 miles)
  12/5 km (3.11 miles)
• Recommended number of connected cameras (6-7 Mbps):
  20/1 km (0.62 miles)
  13/3 km (1.86 miles)
    8/5 km (3.11 miles)
• Recommended number of connected cameras (7-8 Mbps code streams):
  15/1 km (0.62 miles)
  12/3 km (1.86 miles)
    6/5 km (3.11 miles)
• Real-time signal strength
• Optimal signal strength
• Active/Standby channel
• Restoring to the active channel
• Max. number of devices on the SON: 200

Environment & Reliability

• Device Color: Gray

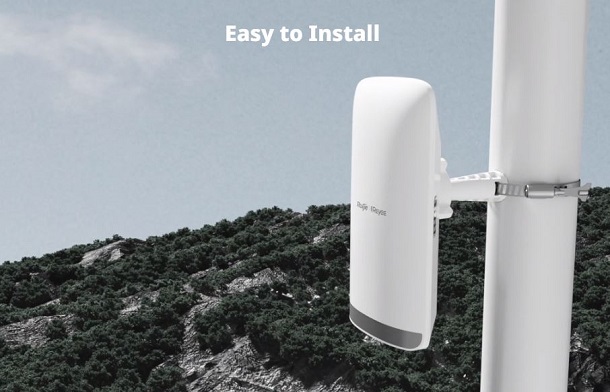

• Mounting options: Wall/Pole
• Operating temperature: -30°C to 65°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 5% to 95% (non condensing)
• Storage humidity: 5% to 95% (non condensing)
• Operating altitude: -500 m to +5,000 m
• Storage altitude: -500 m to +5,000 m
• MTBF: 400,000 hours (about 45 years)
• ESD protection: Standard test: contact discharge=8 kV, air discharge=15 kV, Class B
• Surge protection:
  - Service port: ±4 kV for common mode
  - Power connector: ±4 kV for common mode and ±2 kV differential mode
• Cooling: Natural cooling
• IP rating: IP54
• Mounting options: Wall/Pole

Dimensions & Weight:

• Unit Dimensions (LxWxH): 230 × 132 × 48mm (excluding mounting bracket)
• Unit Weight: 0.49 kg
• Package Dimension (LxWxH) 356 x 326 x 78mm
• Package Weight 2.15 kg

Certification & Regulatory Compliance:

• Safety compliance: EN62368-1
• EMC: EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1, EN 301489-3, EN 301489-17
• Certification: CE, FCC, CB, ISED, cTUVus

​ PartnerNet-Ruijie Reyee RG-EST350 V2 Wireless Bridge Datasheet

Package Contents:

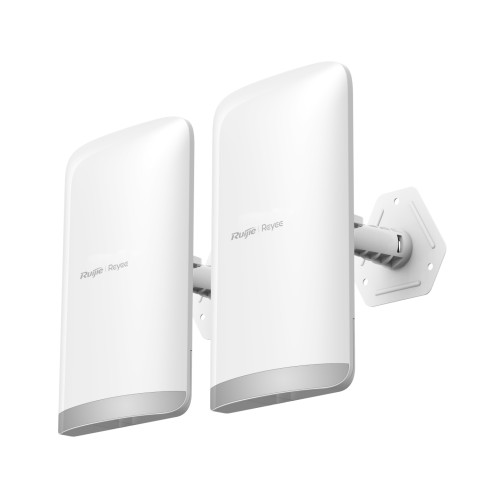

• RG-EST350 V2, 5GHz Dual-stream 802.11ac 5KM Wireless Bridge (Pair)
  Color: Elegant white
• 2x Power adapter (24V passive PoE adapters)
• 2x Power cord
• 2x Mounting Bracket
• 2x Ball joint mount
• 2x Lock ring
• 2x Hose clamp
• 6x Wall anchors
• 8x Phillips pan head screws (self-tapping screws 4.2 mm x 19 mm)
• User Manual
• Warranty Card









































































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Wireless Bridge
Τεχνολογία	802.11ac
Aggregate Wireless Throughput	867Mbps
Antenna	Single-band 2x2 MIMO
Bridging Distance	5 Km
Embedded Controller	ΝΑΙ
Ethernet Port	Gigabit
POE	ΝΑΙ
Wireless	ΝΑΙ
Εγγύηση	3 Χρόνια
