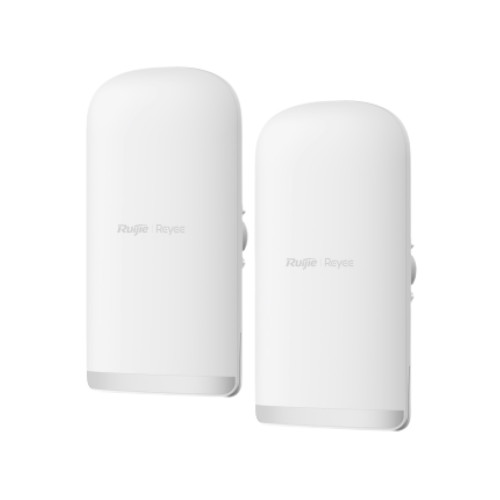

Ruijie-Reyee RG-EST350G 5 GHz PTP/PTMP Outdoor Wireless Bridge with 3x Gigabit Ports, includes Passive PoE Injectors

The Ruijie Reyee RG-EST350G is an 802.11ac wireless bridge that provides surveillance video backhaul function. RG-EST350G works in the 5 GHz frequency band, supports two spatial streams and 2x2 MIMO, delivering a wireless link speed of up to 867Mbps. This bridge utilizes the 2.4 GHz band in single-stream mode for bridge management, while the 5 GHz band is used for data transmission. The design of RG-EST350G adapts to inclement outdoor environments such as the cold and humidity. This substantially simplifies installation and maintenance.

Highlight Features:

• 3x 10/100/1000BASE-T Ports

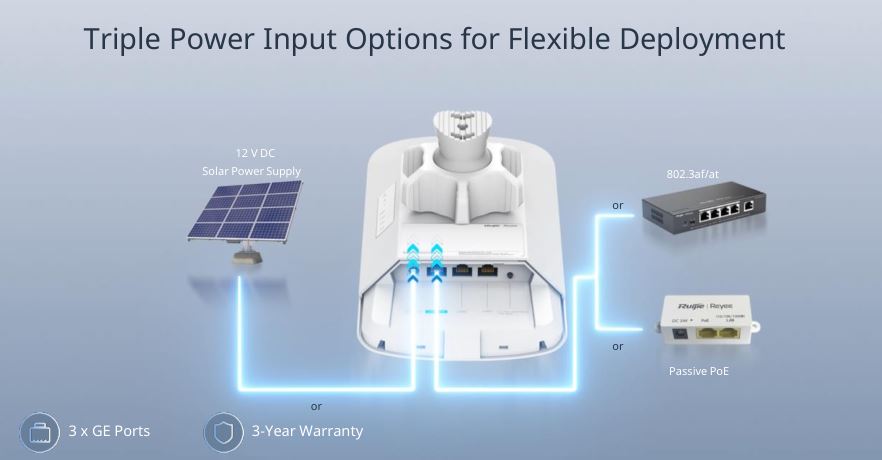

• Support 3 Power Supply Options: 12V DC, Passive PoE, 802.3af/at

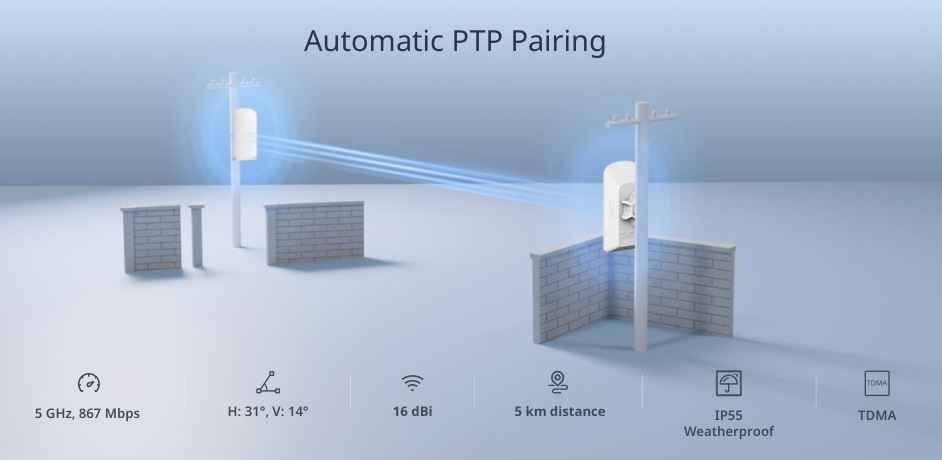

• Automatic PTP Pairing
• One-Touch Pairing for PTMP Mode
• Support TDMA
• Support SON
• 3 Year Warranty

Key Features & Benefits:

• Product Type: Bridge
• Antenna:
  2.4 GHz: 1 x 1 Built-in omnidirectional antenna
     5 GHz: 2 x 2 Built-in directional antenna, horizontal: 31°, vertical: 14°
• Antenna gain (2.4 GHz): 2 dBi
• Antenna gain (5 GHz): 16 dBi
• Antenna horizontal orientation: 31°
• Antenna vertical orientation: 14°

System Specifications:

• CPU: Dual-core processor, 880 MHz clock frequency per core
• Flash memory: 16 MB
• RAM: 128 MB DDR3

Port Specifications:

• LAN1/PoE Port: RJ45 10/100/1000BASE-T Ethernet port, supports 802.3af/at PoE or 24V=0.6A passive PoE
• LAN2 Port: RJ45 10/100/1000BASE-T Ethernet port
• LAN3 Port: RJ45 10/100/1000BASE-T Ethernet port
• DC connector: Supports 12V / 1.2A or 24V / 0.6A DC power supply
• Reset/One-Touch Pairing button
• LEDs:
  1x system status LED
  3x Ethernet port LED
  3x signal status LEDs

Power Supply & Consumption:

• Power supply options: DC power adapter/Passive PoE injector/IEEE 802.3af/at (PoE/PoE+)
  Note: If both a DC power adapter and PoE (passive PoE injector or IEEE 802.3af/at) are available for power supply,
  the DC power adapter takes priority
• DC power adapter:
  - Rated input voltage: 100V - 240V AC, 50 - 60 Hz
  - Rated input current: 0.5 A Max.
  - Rated output voltage: 24V DC
  - Max. output current: 0.6 A
• Passive PoE injector:
  - Rated input voltage: 24V DC
  - Rated input current: 0.6A
  - Rated output voltage: 24V DC
  - Max. output current: 0.6A
• PoE/PoE+: compliance with 802.3af/at
  - Number of PoE In ports: x1
  - Number of PoE/PoE+ In ports: x1
• Local power supply: one DC power connector (12V, 1.2A)
• Dimensions of the DC connector:
  - Outer Diameter: 5.50 mm ± 0.05 mm
  - Inner Diameter: 2.10 mm ± 0.05 mm
  - Depth: 9 mm
• Max. power consumption: 12W

Wi-Fi Radio design:

• Dual-radio
• 3 spatial streams
• Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
• Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
• Operating band:
  IEEE 802.11b/g/n: 2.400 GHz to 2.483 GHz
  IEEE 802.11a/n/ac: 5.150 GHz to 5.350 GHz
  IEEE 802.11a/n/ac: 5.470 GHz to 5.725 GHz
  IEEE 802.11a/n/ac: 5.725 GHz to 5.850 GHz
• Wi-Fi standard: Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/b/g/n standards
  2.4 GHz Wi-Fi Wi-Fi 4 (IEEE 802.11b/g/n)
     5 GHz Wi-Fi: Wi-Fi 5 (IEEE 802.11ac)
• Channel width:
  2.4 GHz: Auto/20/40 MHz
     5 GHz: Auto/20/40/80 MHz
• Transmission rate:
  - Max, wireless data rate: 1166 Mbps
  - Radio 1: 2.4 GHz, 300 Mbps
  - Radio 2:    5 GHz, 866 Mbps
• Max. transmit power: EU & UK:
• 2400 - 2483.5 MHz, EIRP ≤ 20 dBm
• 5470 - 5725 MHz, EIRP ≤ 30 dBm
• Max. transmit power (2.4 GHz): Combined power: 20 dBm (single stream power: 20 dBm)
• Max. transmit power (5 GHz): Combined power: 29 dBm (single stream power: 26 dBm)
• Receive sensitivity:
  802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps)
  802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
  802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15
  802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
  802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9)
  802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)
• Modulation:
  802.11b: BPSK, QPSK, CCK
  802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
  802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• Highest QAM order: 256

IP Service:

• IPv4 ping
• IPv4 traceroute
• DHCP server
• DHCP client

Ethernet Switching: Interface rate: 10/100/1000 Mbps auto-negotiation, VLAN
Security: Broadcast storm control

Network Management & Monitoring:

• SON
• AI heatmap
• Network-wide management SSID configuration
• Network connection through the management SSID
• Ruijie Cloud management
• Restarting devices through Ruijie App
• SNMPv1, v2c, and v3
• Fault diagnosis: support for network tools (ping, traceroute, and nslookup), fault alarms, and fault collection
• Restart cause prompt
• Disconnection cause prompt
• Cloud alarms on DFS signal detection

Basic Configurations:

• eWeb login with the username and password
• Local upgrade
• Configuration backup
• System language
• System time settings

WLAN:

• BaseStation/CPE mode switching

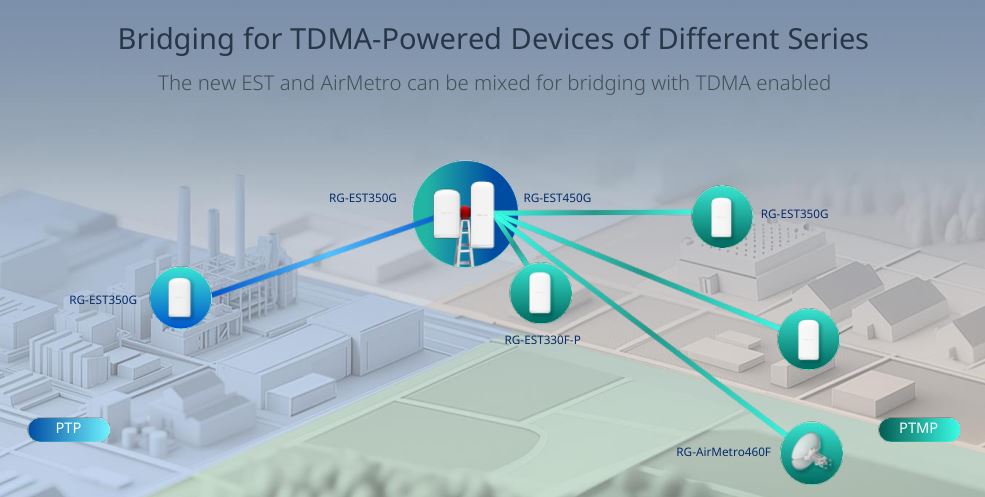

• Enhanced one-to-many transmission (TDMA)
• Bridge SSID hiding
• WPA2-PSK encryption
• Recommended channel
• Bridge speed test
• Configuring a security key for network-wide bridges
• Configuring a security key for a single bridge group
• Configuring a security key for a single bridge
• Bridge SSID, channel, and power configuration
• WMM
• Max. PTMP connections: x5
• Max. bridge distance: 5 km (3.11 miles)
• One-touch pairing
• Max. effective distance of one-touch pairing: 50 m (160.04 ft.)
• Bridge performance:
  230 Mbps/1 km (0.62 miles) (HT40)
  200 Mbps/3 km (1.86 miles) (HT40)
  150 Mbps/5 km (3.11 miles) (HT40)
• RSSI:
  -56 dBm/1 km (0.62 miles)
  -64 dBm/3 km (1.86 miles)
  -68 dBm/5 km (3.11 miles)
• Recommended number of connected cameras (3 Mbps):
  50/1 km (0.62 miles)
  45/3 km (1.86 miles)
  20/5 km (3.11 miles)
• Recommended number of connected cameras (4-5 Mbps):
  30/1 km (0.62 miles)
  25/3 km (1.86 miles)
  12/5 km (3.11 miles)
• Recommended number of connected cameras (6-7 Mbps):
  20/1 km (0.62 miles)
  13/3 km (1.86 miles)
    8/5 km (3.11 miles)
• Recommended number of connected cameras (7-8 Mbps code streams):
  15/1 km (0.62 miles)
  12/3 km (1.86 miles)
    6/5 km (3.11 miles)
• Real-time signal strength
• Optimal signal strength
• Active/Standby channel
• Restoring to the active channel
• Max. number of devices on the SON: 200

Environment & Reliability:

• Operating temperature: -30°C to 65°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5% to 95% (non condensing)
• Storage humidity: 5% to 95% (non condensing)
• Operating altitude: -500 m to +5,000 m
• Storage altitude: -500 m to +5,000 m
• MTBF: 400,000 hours (about 45 years)
• ESD protection: Standard test: contact discharge=8 kV, air discharge=15 kV, Class B
• Surge protection:
  - Service port: ±4 kV for common mode
  - Power connector: ±4 kV for common mode and ±2 kV differential mode
• Cooling: Natural cooling
• IP rating: IP55
• Mounting options: Wall/Pole

Dimensions & Weight:

• Unit Dimensions (LxWxH): 240 × 133 × 108mm (excluding mounting bracket)
• Unit Weight: 0.56 kg
• Package Dimension (LxWxH) 394 x 311 x 104mm
• Package Weight 2.55 kg

Certification & Regulatory Compliance:

• Safety compliance: EN62368-1
• EMC: EN 55032, EN 55035, EN 61000-3-3, EN 61000-3-2, EN 301489-1, EN 301489-3, EN 301489-17
• Certification: CE, CB

​ PartnerNet-Ruijie Reyee RG-EST350G 5km 16dBi Wireless Bridge Datasheet

Package Contents:

• 1x RG-EST350G (Network Video Recorder End)
• 1x RG-EST350G (Camera End)
  Color: Elegant white
• 2x 24V DC/0.6 A Power Adapters
• 2x 1000 Mbps Passive PoE Injectors
• 2x Ball joint mount
• 2x Universal Joint Nuts
• 2x Lock ring
• 2x Mounting Brackets
• 6x Wall Anchors
• 8x Phillips Pan Head Screws (self-tapping screws 4.2 mm x 19 mm)
• 1x User Manual
• 1x Warranty Card





















































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Wireless Bridge
Τεχνολογία	802.11ac
Aggregate Wireless Throughput	867Mbps
Antenna	Dual-band 2x2 MIMO
Bridging Distance	5 Km
Embedded Controller	ΝΑΙ
Ethernet Port	Gigabit
POE	ΝΑΙ
Wireless	ΝΑΙ
Εγγύηση	3 Χρόνια
