Akubela Smart Scene and Emergency Button (ZigBee) - MIR-SO100

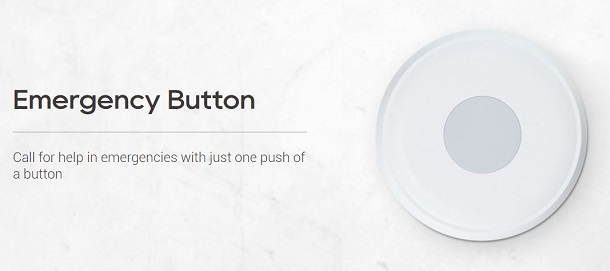

The Akubela Smart Scene Button utilizes ultra-low power ZigBee technology, serving as both an emergency button and a trigger for home automation scenes. Call for help in emergencies with just one push of a button.

Highlights:

• One-touch emergency alert
• One-touch automation scene trigger
• Ultra-low power consumption with long battery life
• Easy installation with no wiring required
• Sleek and stylish design

Specifications:

• Model: MIR-SO100
• Communication protocol: ZigBee 3.0
• Input voltage: 3V/DC
• Low voltage alert threshold: 2.6V ± 0.2V
• Standby current: ≤5µA
• Operating current: ≤30mA
• Battery type: CR2032
• Battery life: Over one year (20 uses/day)
• Operating temperature: -10 to 55°C
• Installation method: Ceiling or wall mount
• Dimensions: Φ50×16mm
• Certification: CE

Networking method:

1. Use a thin tool to open the device's back cover and remove the insulation sheet to power on the device.
2. Press and hold the reset button for about 5 seconds until the indicator light flashes rapidly,
   ndicating that it has entered pairing mode.
3. Add the device to the network via the gateway.

 PartnerNET Akubela Smart Scene Button (ZigBee) Datasheet
