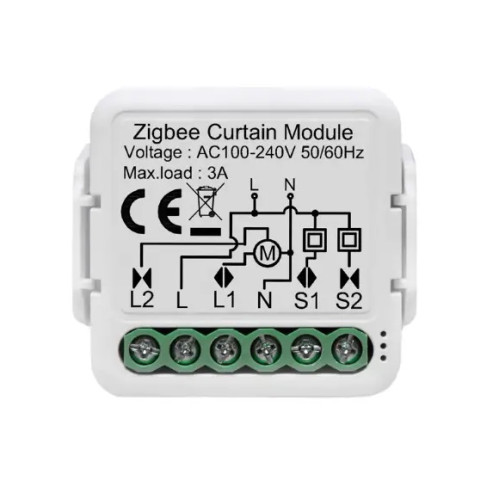

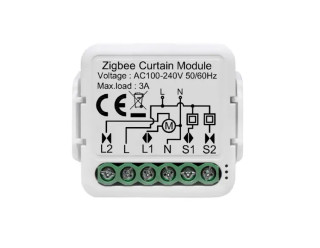

1CH ZigBee Curtain Module - SH-Zigbee-CS01-1C

1CH ZigBee Curtain Module - SH-Zigbee-CS01-1C

  • 1CH ZigBee Curtain Module - SH-Zigbee-CS01-1C

  • 1CH ZigBee Curtain Module - SH-Zigbee-CS01-1C

  • 1CH ZigBee Curtain Module - SH-Zigbee-CS01-1C

  • 1CH ZigBee Curtain Module - SH-Zigbee-CS01-1C

Κατασκευαστής: Akubela
Κωδικός Προϊόντος: AKUB-0147
Διαθεσιμότητα: Please Login
This 1 Channel Zigbee curtain switch enables you to control motorized shades, such as window shades, roll up shutters and more, remotely and wireless via a smartphone App. Designed with ZigBee 3.0 protocol and powered by a single-phase AC, enables the opening percentage and setting of your shades and sunblinds to the preferred position. It can be timed, voice controlled (Alexa, Google assistant, Siri) and with It's mini size, this smart curtan module can be installed easily by fitting to most of the flush mounted junction boxes, enabling you to control your shades directly from a cellphone or tablet no matter where you are.

Highlights:
  • Standard ZigBee protocol
  • 1CH ZigBee Curtain Switch
  • Mobile app control or voice control support
  • 2 Year Warranty
Specifications:
  • Model: SH-Zigbee-CS01-1C
  • Product type: 1CH ZigBee Curtain Module
  • Connections: ZigBee 3.0
  • Protocol:  IEEE802.15.4 b/g/n
  • Voltage: AC100-240V 50/60Hz
  • Max. load: 3A (one channel)
  • Operation Frequency: 2.405GHz-2.480GHz
  • Operation Range: ≤100m
  • Standby Power: < 0.5W
  • Operating Temperature: -10ºC to 40ºC
  • Operating Humidity: 5% to 95% RH, non-condensing
  • Casing: PC V0
  • IP rating: IP20
  • Dimensions: 40 x 40 x 18mm
  • Net Weight: 0.35 kg
  • Certificates: CE, ROHS



















Χαρακτηριστικά
Κατασκευαστής Akubela
Τύπος Προϊόντος Courtain Module
Σειρά Προϊόντων Akubela Add-Ons
Τεχνολογία ZigBee
Προτιμώμενη Τοποθέτηση Indoor
Wireless ΝΑΙ
Εγγύηση 2 Χρόνια
Ετικέτες: Akubela, 1CH, 1 Gang, ZigBee, Switch Module, Curtain Module, Curtain Control, Add-Ons
