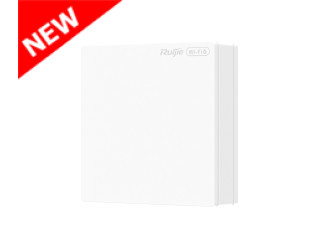

Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

  • Ruijie-Reyee RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Indoor Access Point

Κατασκευαστής: Ruijie
Κωδικός Προϊόντος: REYE-0195
Διαθεσιμότητα: Please Login
The Ruijie-Reyee RG-RAP62-Wall-Lite is a Gigabit dual-band wall-plate access point (AP) designed for small- or medium-sized indoor scenarios covering hotels, apartments, villas, residential buildings, and small offices. Compliant with IEEE 802.11ax, IEEE 802.11ac Wave 1/Wave 2, and IEEE 802.11a/b/g/n protocols, this AP can operate in the 2.4 GHz and 5 GHz frequency bands simultaneously. It supports four spatial streams and Multi-User Multiple-Input Multiple-Output (MU-MIMO), and provides an access rate of 573 Mbps in the 2.4 GHz frequency band and 2401 Mbps in the 5 GHz frequency band. The AP provides a wireless access rate of up to 2974 Mbps. The AP provides one uplink port that is compliant with IEEE 802.3af or IEEE 802.3at, and one 1 Gbps Ethernet downlink port for wired client connection. With this design, the AP can meet indoor wired and wireless deployment requirements. The RG-RAP62-Wall-Lite can be mounted in junction boxes of various standards like Chinese standard (86 mm x 86 mm) and European standard (86 mm x 86 mm), making it highly versatile for different installation environments.

Highlights:
  • Wi-Fi 6 AX3000 speeds: Maximum 2401 Mbps in 5 GHz + Maximum 573 Mbps in 2.4 GHz
  • Compatible with 86-mm and EU standard junction boxes

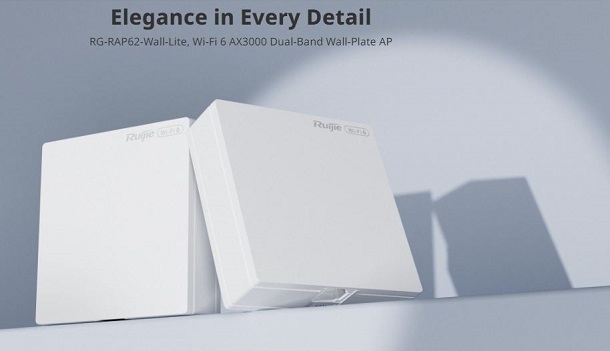

  • Blending into the indoor environment
  • Thickness-segmented design, with only 24.8 mm (0.98 in.) exposed on the wall
  • Centralized management on Ruijie Cloud
  • 3 Years Warranty
Hardware Specifications:
  • Model: RG-RAP62-Wall-Lite
  • Color: White
  • Flash memory: 128 MB
  • RAM: 512 MB DDR3
  • Antenna:
    5 GHz: 1 built-in omnidirectional antenna
    Integrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas
  • Antenna gain: 4.42 dBi@5GHz, 3.07 [email protected]
  • 2x 10/100/1000BASE-T Ports
  • Power supply PoE/PoE+ (IEEE 802.3af/at)
  • Max. power consumption: 11.2 W
  • Radio design:
    Dual-radio 4 spatial streams:
    2.4 GHz: 2 x 2 MU-MIMO
    5 GHz: 2 x 2 MU-MIMO
  • FEM: iFEM
  • 5 GHz channel width: Auto/20/40/80/160 MHz
  • 2.4 GHz channel width: Auto/20/40 MHz
  • Maximum wireless data rate: 2974 Mbps
  • 5 GHz wireless data rate: 2401 Mbps
  • 2.4 GHz wireless data rate: 573 Mbps
  • Coverage range: 45 ㎡ (484.38 square ft.)
  • Wi-Fi Radio:
    5 GHz Wi-Fi:
    - Wi-Fi 4 (IEEE 802.11a/n)
    - Wi-Fi 5 (IEEE 802.11ac)
    - Wi-Fi 6 (IEEE 802.11ax)
    2.4 GHz Wi-Fi:
    - Wi-Fi 4 (IEEE 802.11b/g/n)
    - Wi-Fi 6 (IEEE 802.11ax)
  • Operating Band:
    IEEE 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz
    IEEE 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
  • Modulation:
    OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps
    DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
    MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM, OFDMA
  • 1x reset Button
  • 1x system status LED
  • Mounting options: Junction box
  • Surge protection: Ethernet port: ±2 kV for common mode
  • MTBF: 400,000 hours
Software Specifications:



Basic Configurations:

  • AP mode/Routing mode
  • Internet access mode:
  • Static IP address
  • Static IPv6 address
  • Dynamic IP address
  • Dynamic IPv6 address
  • PPPoE
  • Interface: IPTV transparent transmission
  • Ethernet Interface: PPPoE clients
  • Ethernet Switching: IEEE 802.1Q VLAN

WLAN:

  • Maximum number of associated wireless clients:
    64 (2.4 GHz)
    256 (5 GHz)
    256 (2.4 GHz and 5 GHz enabled)
  • Recommended number of associated wireless clients:
    - Support for IEEE 802.11ax and 160 MHz:
    16 (2.4 GHz)
    94 (5 GHz)
    110 (2.4 GHz and 5 GHz enabled)
    - Support for IEEE 802.11ax and 80 MHz:
    16 (2.4 GHz)
    64 (5 GHz)
    80 (2.4 GHz and 5 GHz enabled)
    - Support for IEEE 802.11ac:
    8 (2.4 GHz)
    32 (5 GHz)
    40 (2.4 GHz and 5 GHz enabled)
  • Maximum number of SSIDs: 8
  • Radio-based client limiting
  • Layer 2 isolation
  • OFDMA, WMM, DFS
  • Different SSIDs for the same VLAN
  • AP load balancing
  • Beamforming
  • 802.11k/v roaming
  • Fast transition (802.11r)
  • Layer 2 roaming/Layer 3 roaming/AI roaming
  • PSK authentication
  • Static allowlist
  • Adjusting the transmit power for beacon and probe frames
  • Encryption mode (WPA-PSK, WPA2-PSK, WPA/WPA2-PSK)
  • OWE (Enhanced Open)
  • WPA3-SAE
  • WPA2-PSK/WPA3-SAE
  • Number of blocklists and allowlists based on MAC addresses (single SSID): 256
  • Number of global blocklists/allowlists: 256
  • Mesh management/AP Mesh/AP portal authentication
  • Maximum number of devices that can be managed: 300
  • One-Click Network Optimization
  • Static blocklist
IP Service:
  • ARP binding
  • IPv4 ping
  • IPv6 ping
  • Traceroute
  • Static/Dynamic NAT
  • DHCP server
Authentication:
  • 802.1X authentication
Network Management & Monitoring:
  • Wireless repeater mode
  • Web login information:
  • Single-device login address: 10.44.77.254
  • Network-wide login address: 10.44.77.253
  • Default password: admin
  • Network-wide configuration & management
  • Ruijie Reyee App management
  • eWeb management
  • Ruijie Cloud management
  • SNMP
  • Configuration synchronization among the app, eWeb, and Ruijie Cloud
  • Displaying device information on Ruijie Cloud
Environmental:
  • Operating temperature: 0°C to 40°C
  • Storage temperature: -40°C to +70°C
  • Operating humidity: 5% RH to 95% RH (non-condensing)
  • Storage humidity: 5% RH to 95% RH (non-condensing)
Certification & Regulatory Compliance:
  • RoHS
  • CE, CB
Dimensions & Weight:
  • Unit Dimensions (LxWxH): 86 x 38 x 86mm
  • Unit Weight: 0.25 kg
  • Package Dimensions (LxWxH): 144 x 107 x 54 mm
  • Package Weight: 0.35 kg
Package Contents:
  • 1x RG-RAP62-Wall-Lite AP (decorative cover included, not pre-installed)
  • 2 x Machine screws (M4 x 40 mm)
  • 2 x Machine screws (M3.5 x 30 mm)
  • 2 x Tapping screws (ST3 x 30 mm)
  • 1 x User Manual
  • 1 x Warranty Card

























































































Χαρακτηριστικά
Κατασκευαστής Ruijie
Τύπος Προϊόντος Indoor WiFi Access Point
Τεχνολογία IEEE 802.11ax (Wi-Fi 6)
Aggregate Wireless Throughput 2974Mbps
Antenna Dual-band 2x2:2 MU-MIMO
Embedded Controller ΝΑΙ
Max. Concurrent Clients 256
Max. Coverage Range 45m
Cloud managed / monitor ΝΑΙ
Ethernet Port Gigabit
POE ΝΑΙ
Wireless ΝΑΙ
Εγγύηση 3 Χρόνια
