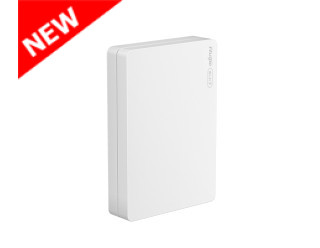

Ruijie-Reyee RG-RAP72-Wall BE3600 Wi-Fi 7 Dual-Band Wall-Plate Indoor Access Point

The Ruijie-Reyee RG-RAP72-Wall is a Gigabit dual-band wall-plate access point (AP) designed for small- or medium-sized indoor scenarios covering hotels, apartments, villas, residential buildings, and small offices. Compliant with IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac Wave 1/Wave 2, IEEE 802.11a/b/g/n protocols, this AP can operate at 2.4 GHz and 5 GHz frequency bands simultaneously. It supports the MU-MIMO dual-stream technology and provides an access rate of 688 Mbps at 2.4 GHz and 2882 Mbps at 5 GHz, achieving a maximum wireless data rate of 3570 Mbps. It also provides four 1 Gigabit Ethernet ports for wired connection, catering to the indoor wired and wireless dual-gigabit deployment requirements. The RG-RAP72-Wall can be mounted in junction boxes of various standards: Chinese standard (86 mm x 86mm), European standard (86 mm x 86 mm), South African standard (114 mm x 114 mm), and US standard (108 mm x 59 mm), making it highly versatile for different installation environments.

Highlights:

• Wi-Fi 7 revolution, providing data rates of up to 3600 Mbps
• 2.5 Gbps uplink port for ultra-high-speed indoor access
• PoE output for IP phones and other IoT devices
• Compact design with a thickness of 24 mm
• Anti-theft lock for device protection
• 3 Years Warranty

Product Features:

Multi-Scenario Adaptability:
The RG-RAP72-Wall is a dual-band wall-plate AP suitable for various applications, including hotels, high-end apartments, educational institutions, and business environments.

High-Speed Access and Compatibility:
The RG-RAP72-Wall can operate simultaneously in IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, and IEEE 802.11n modes.
Supporting both 2.4 GHz and 5 GHz frequency bands, it offers a data rate of up to 3.57 Gbps, effectively eliminating any wireless performance bottlenecks.

Compact Size, Excellent Heat Dissipation, and Versatile Installation Options:
The RG-RAP72-Wall features a compact and lightweight design, with a thickness of just 24 mm (0.94 in.), ensuring excellent heat dissipation performance.
The RG-RAP72-Wall is fit in junction boxes with mainstream dimensions, ensuring adaptability to diverse installation environments.
In addition to its sleek and attractive appearance, it provides a PoE output port that can power other devices, including IP phones and various smart devices.

Standalone Portal:
The RG-RAP72-Wall supports a standalone portal that enables Wi-Fi authentication through Ruijie Cloud.
This standalone portal operates independently of a gateway, making network construction both easier and more cost-effective.

Hardware Specifications:

• Model: RG-RAP72-Wall
• Memory: 512 MB
• Flash: 256 MB
• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax/be
• Operating Frequency Bands:
  5 GHz:
  5.150 GHz to 5.350 GHz
  5.470 GHz to 5.725 GHz
  5.725 GHz to 5.850 GHz
  2.4 GHz:
  2.400 GHz to 2.4835 GHz
• Data Rate:
• 5 GHz: 2 spatial streams, 2x2 MU-MIMO
• 2.4 GHz: 2 spatial streams, 2x2 MU-MIMO
• Antenna:
  Built-in antenna
  Antenna Gain: 4.56 dBi@5 GHz, 2.84 [email protected] GHz
• Channel Width:
  5 GHz: Auto/20/40/80/160 MHz
  2.4 GHz: Auto/20/40 MHz
• Max. Throughput: 3570 Mbps, 2882 Mbps@5 GHz, 688 [email protected] GHz
• Recommended Wi-Fi Coverage Radius (5 GHz): 25 m (82.02 ft.)
• Recommended Wi-Fi Coverage Radius (2.4 GHz): 25 m (82.02 ft.)
• Modulation:
  OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
  DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
  MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA
• Max. Transmit Power:
  5 GHz: Total 20 dBm (17 dBm per chain)
  2.4 GHz: Total 20 dBm (17 dBm per chain)
• Power Consumption: <15 W
• Buttons: 1x Reset button
• LEDs: 1x system LED (white)
• Service Ports:
  1x 10/100/1000/2500BASE-T
  4x 10/100/1000BASE-T Ports (1 with PoE Out support)
• Power Supply:
  IEEE 802.3af (PoE Out not supported)
  IEEE 802.3at
• IP Rating: IP41
• Lightning/Surge Protection: ±2 kV
• Mean Time Between Failures (MTBF): > 400000 hours
• Certifications: CE, RoHS, FCC, ISED, cTUVus
• Mounting: Wall-mounted

Software Specifications:

Ap Capacity:

• Max. Number of SSIDs: 8
• Max. Number of Clients: 511
• Recommended Number of Clients: 110
• Max. Blocklisted/Allowlisted Clients per AP: 256
• Max. Blocklisted/Allowlisted Clients per SSID: 256
• Self-Organizing Network (SON)
• Max. Number of AP Groups: 8
• No. of APs on a SON: 300
• Max. Number of Clients on an AP SON: 1500

WLAN RF Features:

• Disconnecting Clients with a Low RSSI
• Transmit Power of Beacon and Probe
• Response Frames
• RSSI Threshold for Client Association
• Wi-Fi Multimedia (WMM)
• AP Load Balancing
• Manual Client Association
• Intelligent Client Association
• Remote Probe (Wireless Sniffing)
• Power Settings
• Roaming Sensitivity
• Radio Switch
• Radio-based Client Limit
• RF Beamforming

Management Features:

• SNMP support: SNMP v1, SNMP v2c, SNMP v3
• Management via eWeb
• Management via Ruijie Reyee App
• Management via Ruijie Cloud
• Ruijie Cloud Monitoring Log: Syslog, Client Log, RF Log
• Self-Organizing Networking
• Layer 3 Networking (Option 43)
• AP Mesh

Upgrade:

• Single-Device Upgrade via eWeb
• One-Click Upgrade via eWeb
• Single-Device Upgrade via Ruijie Reyee App
• One-Click Upgrade via Ruijie Reyee App
• Dual-Bin Backup
• Upgrade via Ruijie Cloud

Maintenance and Diagnosis:

• One-Click Fault Collection
• Backup and Import
• Factory Reset
• Active Alarm for DHCP Server Conflict
• Packet Sniffing
• Locating AP by the LED

Network-wide Management:

• Network 3.0 Functions: RLDP
• Wireless Flow Control (WQoS)
• Wireless Intelligent Optimization (WIO2.0)
• WIO Client
• Network Optimization
• Scheduled Optimization
• Channel Adjustment
• IEEE 802.11k/v Roaming
• Captive Portal
• Client Association
• AP Load Balancing Management
• Network Password
• Network Scheduled Restart
• Network Restart/Recovery

Standalone Portal:

• Client Management:
• Manually Disconnecting Clients
• Disconnecting Clients Through Ruijie Cloud
• Dynamic Frequency Selection (DFS)
• WiFiDog (SMS/One-Click/Username & Password Authentication)
• Portal Authentication Escape
• Automatic Portal for iOS, Windows, and Android Operating Systems
• Allowlisting Server Addresses
• Allowlisting MAC Addresses to Access the Internet without Authentication
• Allowlisting IP Addresses to Access the Internet without Authentication
• Blocklisting MAC Addresses from Accessing the Internet
• Bandwidth Limit
• 802.1X: AAA, RADIUS

Wlan Security:

• WLAN IDs: Layer 2 Client Isolation
• Link Authentication
• Access Authentication
• Static Blocklist and Allowlist
• SSID-based Blocklist and Allowlist
• PSK Authentication
• WPA (TKIP), WPA2 (AES), and WPA-PSK
• OWE (Enhanced Open), WPA3-SAE, WPA2-PSK/WPA3-SAE
• WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise

Wireless Flow Control (WQoS):

• Client-based Rate Limiting
• Packet-based Rate Limiting
• SSID-based Rate Limiting for Uplink Traffic
• AP-based Rate Limiting

Application Protocol Features:

• DNS Client, SSH, TFTP Client
• DHCP Server, DHCP Client
• NTP/SNTP Client
• PPPoE Client
• DNSv6 Client

WLAN Basic Features:

• Multiple SSIDs
• Same SSID for Different VLANs
• Wi-Fi Schedule Management
• Hide SSID
• 5G Prior
• Local Forwarding
• 802.11ac:
  802.11ac
  MU-MIMO
• 802.11ax:
  802.11ax
  Enable/Disable 802.11ax
  1024-QAM
  OFDMA
  DL MU-MIMO
  Spatial Reuse with BSS Coloring
• 802.11be:
  4K-QAM
  Multi-Link Operation (MLO)
  Multiple Resource Unit (MRU)
  1K Block Acknowledgment (BA)
• Roaming:
  AI Roaming
  Layer 2 Roaming
  Layer 3 Roaming
  IEEE 802.11k/v Roaming

Environmental:

• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to +70°C
• Operating humidity: 5% RH to 95% RH (non-condensing)
• Storage humidity: 5% RH to 95% RH (non-condensing)

Dimensions & Weight:

• Unit Dimensions (LxWxH): 124 x 86 x 27 mm
• Unit Weight: 0.27 kg
• Package Dimensions (LxWxH): 129 x 102 x 51 mm
• Package Weight: 0.45 kg

Package Contents:

• RG-RAP72-Wall access point (with a decorative cover)
• Mounting bracket
• 4x Phillips pan head screws (M4 x 25 mm)
• 1x T-key to anti-theft lock
• User Manual
• Warranty Card
