Akubela PG71-KNX-EU HyPanel Pro Android 10 Indoor Unit with 8" Multi-touch Screen

The akubela HyPanel Pro is a smart control panel with an Android 10 operating system. The All-in-One design integrates a smart intercom, a ZigBee gateway and a home automation device, compatible with plentiful ecosystems. Furthermre, with it's minimalist exterior design, and equipped with a 5 millions pixel camera with privacy shutter, allows users to enjoy a higher quality communication experience. Supports infrared remote control function and intelligent control of traditional home appliances, delivering an outstanding smart home experience.

Key Features & Benefits of the Akubela PG71-KNX-EU:

• 8-inch touchscreen
• 5-megapixel camera with a privacy shutter

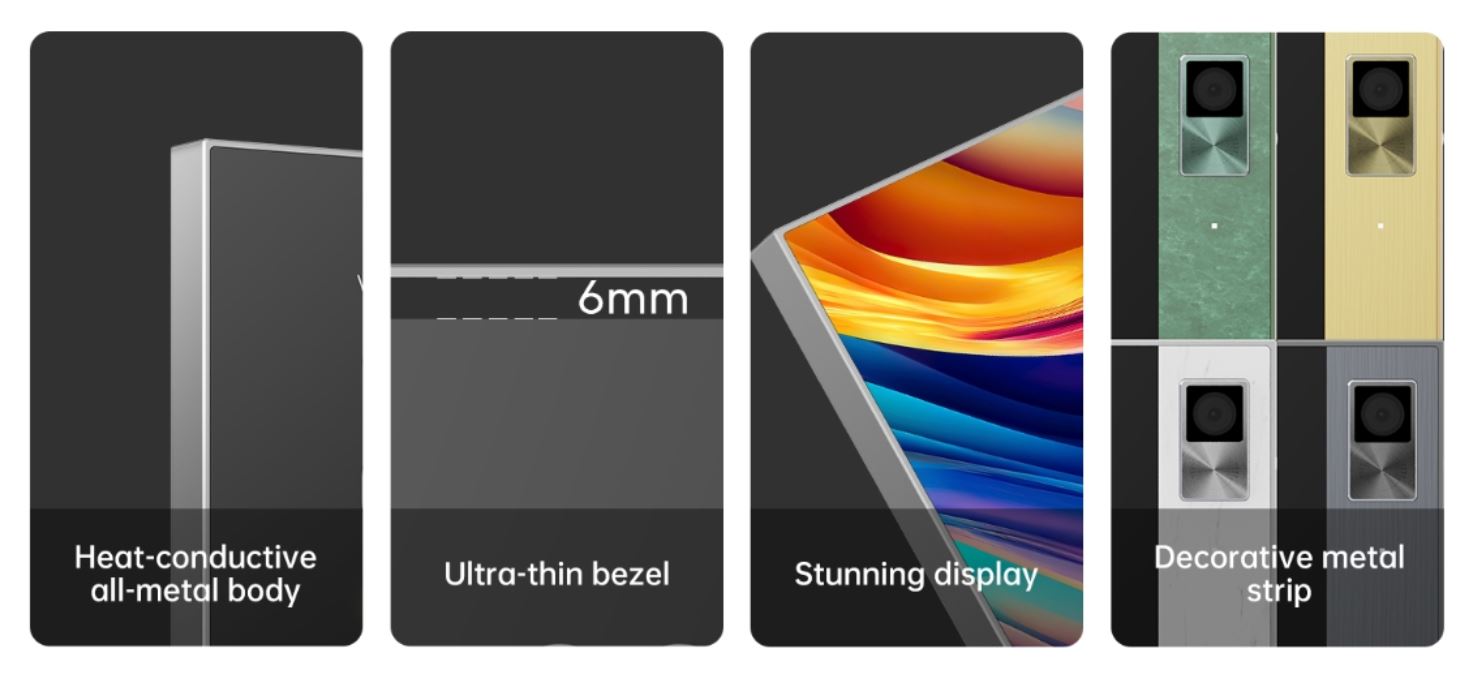

• Metal frame with a decorative strip available in various colors and textures
• Built in with 2 channels dry contact, a digital input
• Built in with multiple sensors
• Support infrared remote control
• Android 10 OS powered by a high-performance Qualcomm chip
• Intercom, ZigBee gateway, and smart home control panel in one device

Basic Information:

• Model Number: PG71-KNX-EU
• Casing Material: Metal
• Screen: 8” multi-touch screen, AF hydrophobic anti-pollution fingerprint proof coating
• Screen Resolution: 1280x800 pixels
• Screen Brightness: 310 cd/㎡
• Power Supply:
  - KNX 21 ~ 30VDC
  - AUX 21 ~ 30VDC
• Rated Current: 1.3A
• Rated Power: 15W
• I/O :
  - 1x 0~5VDC digital input
  - 2x 4A 100~240VAC/gang dry contact
• Operation System: Android 10
• RAM/ROM: 2GB/16GB
• Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
• Bluetooth: Bluetooth 4.2
• Ethernet ports: 1x RJ45, 10/100Mbps adaptive
• ZigBee: ZigBee 3.0
• Microphone: Dual microphone, -38DBV
• Speaker: Single speaker 6Ω/1.8W
• Camera: 5M pixel camera with privacy shutter
• Infrared remote control: Supported

Built In Sensors:

• Proximity Sensor: 30~60cm
• Light Sensor: Low-level lux detection
• Temperature Sensor: ±1℃，range：-10℃~55℃
• Humidity Sensor: ±5%，range：10%~90%RH，without condensation

Working Environment:

• For indoor use only
• Working Humidity: 10%~90%RH, without condensation
• Working Temperature: -10℃~55℃
• Storage Temperature: -20℃~70℃

Installation:

• Wall flush mounting
• Flush Mounted Module: EU/UK standard
• Wiring Way: L- + N- wire required

Application Scenario:

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

 PartnerNET Akubela PG71-KNX-EU HyPanel Pro Datasheet
