Akubela PHX1-KNX-EU HyPanel Supreme Android 12 Indoor Unit with 12.35” Multi-touch UHD Display, Wi-Fi 6, Bluetooth 5.0 and ZigBee 3.0

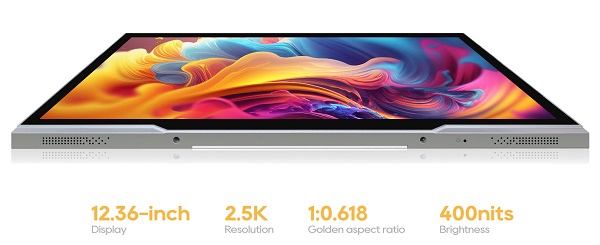

The akubela HyPanel Ultra is a 12.35-inch smart home control center featuring a high-definition 2560×1600 resolution screen with ultra-slim bezels. Its minimalist metal exterior seamlessly integrates high-end aesthetics, delivering a visually stunning experience. Powered by Android 12, it supports various smart home control apps and achieves seamless integration between third-party apps and the original interface. It also boasts built-in sensors for temperature, humidity, gesture recognition, proximity, light, enhancing data collection and analysis capabilities. It is designed to bring whole-house smart automation, providing an outstanding user experience.

Key Features & Benefits:

• 12.35 inch touchscreen with metal frame
• 2.5K (2560×1600) UHD display
• Built in with 2 channels dry contact, 1 digital input
• Multi networks supported: Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0, etc.
• Built in with multiple sensors
• Android 12 OS
• Intercom, ZigBee gateway and smart home control panel in one device
• Compatible with various third-party devices and platforms

Basic Information:

• Model Number: PHX1-KNX-EU
• Casing Material: Metal
• Screen: 12.35” multi-touch screen
• Screen Resolution: 2560 x 1600 pixels
• Screen Brightness: 400 cd/m²
• KNX Power Supply: 21-30VDC, Rated Current: 12mA/21V
• AUX Power Supply: 21-30VDC, Rated Current: 750mA/24V, 600mA/30V
• Rated power: 18W
• Digital Input: 1 gang, 0-5VDC
• Dry Contact Output:
• Dry Contact Output: 2 gang, 100 ~ 240VAC, Rated Current: 4A
• Wire Range: 0.75 ~ 1.6mm²(18 ~ 15AWG)
• Operation System: Android 12
• RAM/ROM: 4GB/32GB
• Wi-Fi: WiFi6, @2.4GHz/5GHz
• Bluetooth: Bluetooth 5.0
• Ethernet port: 1xRJ45, 10/100Mbps adaptive
• ZigBee: ZigBee 3.0
• ZigBee Sub-Device Limit: 128
• Microphone: Dual microphones, -26dBFS
• Speakers: Dual speakers, 4Ω/2W
• Camera: 5-megapixel camera with privacy shutter

Built In Sensors:

• Gesture Recognition Sensor: Support
• Proximity Sensor: 30~100cm
• Light Sensor: Low-level lux detection
• Temperature Sensor: ±1℃, range：-10℃~50℃
• Humidity Sensor: ±5%, range：10%~90%RH, without condensation

Working Environment:

• For indoor use only
• Working Humidity: 10%~90%RH, without condensation
• Working Temperature: -10℃~50℃
• Storage Temperature: -20℃~70℃
• IP Rating: IP20

Installation:

• Wall Flush mounting
• Flush Mounted Module: EU/UK/US standard

Dimensions & Weight:

• Unit Dimension (LxWxH): 296 x 188 x 41mm
• Unit Weight: 0.81kg
• Package Dimensions (LxWxH): 342 x 234 x 90mm
• Package Weight: 1.1kg
• Shipping Carton Dimensions (LxWxH): 483 x 442 x 379mm
• G. Weight/CTN: 11kg
• Items/CTN: 10

 PartnerNET Akubela PHX1-KNX-EU HyPanel Supreme Datasheet

Application Scenario:

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors
