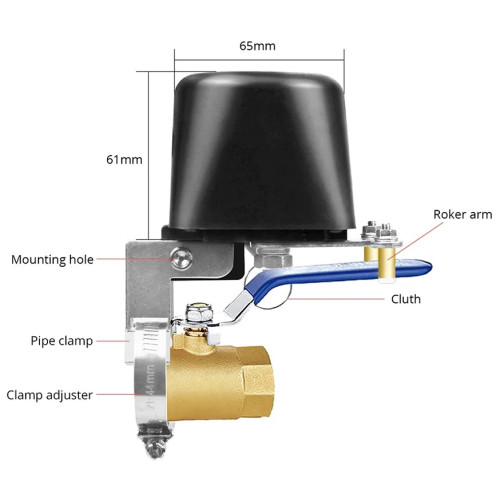

Akubela Smart Valve Controller (ZigBee) - SM-AW713

The Akubela ZigBee Smart Valve Controller SM-AW713 is an advanced device designed for effective water pipe control. Its features include ABS flame-retardant housing, operating temperature range of -10-50°C, ZigBee connectivity, 1.6Mpa valve pressure, and motor power of 0.3W/5W. This controller ensures efficient valve closure within 5-10 seconds and offers excellent adjustability for center axis alignment. It comes with a 12V-1.5A power adapter and metal bracket for seamless installation. Its robust construction and smart controls provide a comprehensive solution for monitoring and managing your home's water system. Smart water management device designed to enhance both convenience and safety in home water usage.

Highlights:

• Advanced device designed specifically for effective water pipe control
• Easy installation with good pipeline compatibility
• Constructed with ABS flame-retardant housing to ensure safety
• Operates efficiently within a temperature range of -10 to 50°C
• High-torque motor
• Rated to withstand valve pressures up to 1.6 MPa
• Smart home integration
• Intelligent single-slot timing switch
• Intelligent one-button that can be fully on, and fully off
• Manual control
• Supports LAN control
• Supports intelligent scene setting & sensor linkage
• Supports control via Belahome APP and HyPanel
• 1 Year Warranty

Specifications:

• Model Number: SM-AW713
• Input voltage: 12VDC/1A
• Wireless Standard: ZigBee 3.0
• Motor power consumption: Max 5W
• Torque: 40Kgf.cm
• Valve switching time: 5 ~ 10s
• Valve pressure: 1.6Mpa
• Valve Specifications：13mm, 20mm, 1 inch
• Housing material: ABS (flame retardant)
• Working temperature: -20 ~ 50 ℃
• Working humidity: 0 ~ 95%RH (no condensation)
• Product size: 93.5×70×78.5mm

Networking method:

1. Connect the power adapter to power on the device
2. Long press the reset button for about 5 seconds until the device's blue indicator light flashes rapidly, indicating it has entered the pairing mode
3. Add the device to the network through a gateway device

 PartnerNET-Akubela Add-on ZigBee Smart Valve Controller Datasheet

Package Contents:

• 1 x SM-AW713 Smart Valve Controller
• 1 x AC/DC Adapter
• 1 x Bracket
• 1 x Accessories
• 1 x Instruction manual
