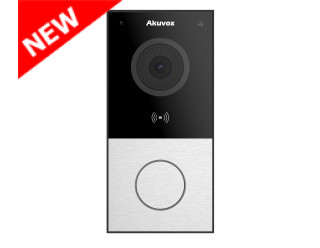

Akuvox E12S-2 Two-wire IP Video Door Bell with Relay

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. The 2-wire video intercom systems remain demanded as long as there are so many housholds left with old wiring in the walls, which is indeed a problem to replace. Akuvox came up with a solution adressing the issue, allowing you to benefit from the features of an IP network infrastructure, without the need to replace the existing old wiring. from anywhere.

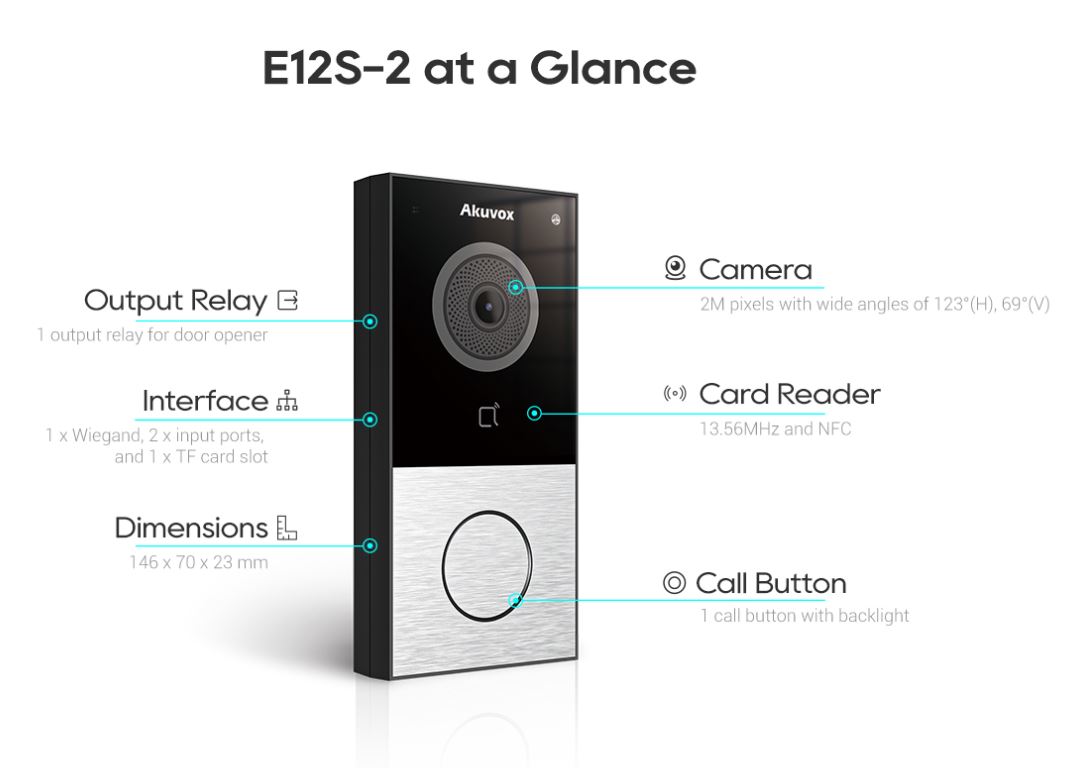

Key Features & Benefits:

• Single button for outdoor environments
• Two-pin wire for power supply and network access
• Wide-angle camera: 123° (H), 69° (V)
• Embedde Bluetooth and IC card reader
• Two-way audio communication over IP networks with advanced echo cancellation
• SIP and ONVIF comliant

Physical & Power:

• Model: E12S-2
• Body Material : Plastic
• Camera: 2 M pixels , automatic lighting
• 1 call button
• Wiegand port support
• RF card reader: 13.56MHz, NFC
• Light sensor: 1
• Relays out: 1
• Inputs: 2
• Microphone: 1
• Speaker: 1
• BLE support
• Tamper alarm support
• Power interface: 1
• IP Rating: IP65 water proof & dust proof
• Installation: Wall-mounted
• Size 146 x 70 x 23 mm
• Working Humidity: 10% ~ 90%
• Working Temperature: -40 ºC ~ + 55 ºC
• Storage Temperature: -40 ºC ~ +70 ºC​

Audio:

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ
• Wide band audio codec: G.722
• DTMF: In band, out of band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video:

• Sensor: 1/2.7” CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264
• Video resolution: up to 1920x1080
• Max. image transfer rate: 1080p - 25fps
• Viewing angle : 123°(H) / 69°(V)
• White LEDs for picture lighting during dark hours with internal light sensor

Door Entry Features:

• Relays controlled individually by DTMF tones
• Camera permanently operational
• Auto night mode with LED illumination
• White balance: auto
• Minimum illumination: 0.1LUX

Networking & Protocol:

• Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance:

• Auto Provisioning
• Web management portal
• Configuration backup / restore
• Entry log export
• Access table export / import
• Firmware upgrade
• System logs (include door access logs)

Application Scenario:

• Apartment / flat intercom with door access control
• Remote site entry over Internet
