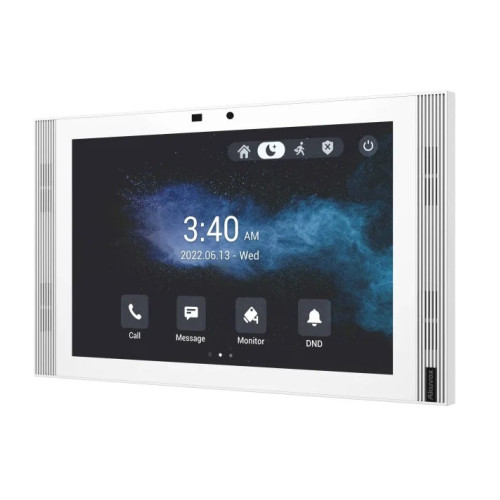

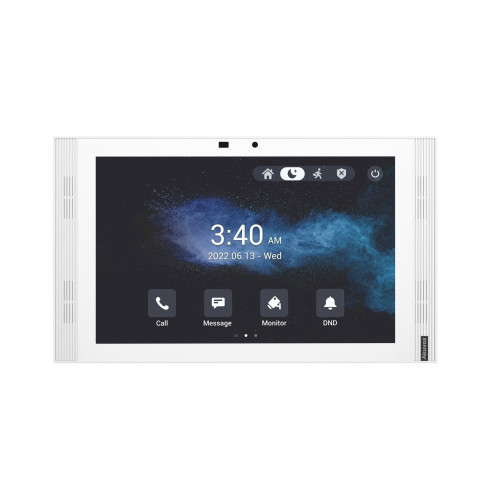

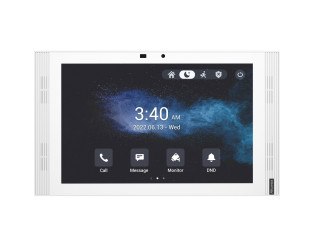

Akuvox S567A-White On-Wall Mounted Android 12 OS IP Indoor Monitor with 10-Inch Capacitive Touch Screen, 5MP Camera, Bluetooth, Wi-Fi 6, RS485 and PoE Support

The Akuvox S567 Indoor monitor with an Android 12 operating system, provides an unparalleled audio-visual intercom experience with four high level speakers. Automatically adjust screen brightness through environment sensing, Voice Assistant and Voice Changer to bring convenience and safety to your home. The S567 is an ideal indoor unit for application scenarios in villas, apartment complexes, home automation systems, modern interiors and many more.

Key Features & Benefits:

• Strong compatibility with Android 12 OS
• Completely solve the stability problem of Wi-Fi with Wi-Fi 6
• Two-way audio communication with other units in the network
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Powered by PoE or external source
• Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
• Support Voice Changer to protect the children and women living alone
• Support US or European electrical wall box mounting
• Built-in smart voice assistant
• 1 Year Warranty

Physical & Power:

• Front panel: Plastic
• Color: White
• RAM/ROM: 4GB/16GB
• Display: 10 Inch IPS LCD
• Screen: 10 Inch capacitive touch screen
• Wi-Fi: IEEE802.11 b/g/n/ax
• Bluetooth 5.0
• RS485 Port: Support
• Relays Out: 1
• Bell in: 1
• Alarm Input: 8
• Camera: 5 MP
• Microphone: Dual microphones (-26dB)
• Speaker: Quad speakers, 8Ω/2W
• Ethernet Ports: 1x RJ45 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC Connector (if not using PoE)
• Tamper Resistant: Support
• Installation: Wall-mounted & Desktop with the optionally available Akuvox S567 Desktop Bracket
• Unit Dimensions: 278.5 x 165.1 x 22.8 mm
• Package Dimensions: 359 x 235 x 54 mm
• Unit Weight: 1.21 kg
• Package Weight: 1.31 kg
• Working Humidity: 10~90%
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C ~ +70°C

Touch Screen Display:

• Display Mode: Normally black, Transmissive
• LCD Size: 10inch (Diagonal)
• Aspect Ratio: 16:10
• Resolution: 1280x800
• Contrast ratio: 900:1
• Luminance: 290 cd/m²
• Viewing Angle:
  - 80° Left, 80° Right,
  - 80° Upper, 80° Lower
• Touch Screen: Projected capacitive

Audio:

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator
• Automatic Gain Control

Voice Assistant:

• Voice pickup distance up to 5 meters
• Voice recognition accuracy up to 95%
• Privacy protection with native voice data
• English support

Video:

• Streaming formats: H.263 & H.264

Networking:

• Protocols supported: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance:

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup/restore
• Firmware upgrade
• System logs (include door access logs)

 PartnerNET Akuvox S567A On-Wall Mounted 10-Inch Android Indoor Unit Datasheet

Package Contents:

• S567A-White Android IP Indoor Monitor
• 1x Wall-mounting bracket (EU)
• 1x Wall-mounting bracket (USA)
• 2x M4x30 crosshead screws
• 2x ST3x20 crosshead screws
• 2x M2x5 hex socket screws
• 2x Foam
• 1x 8-Pin cable
• 1x 10-Pin cable
• 1x Allen wrench
