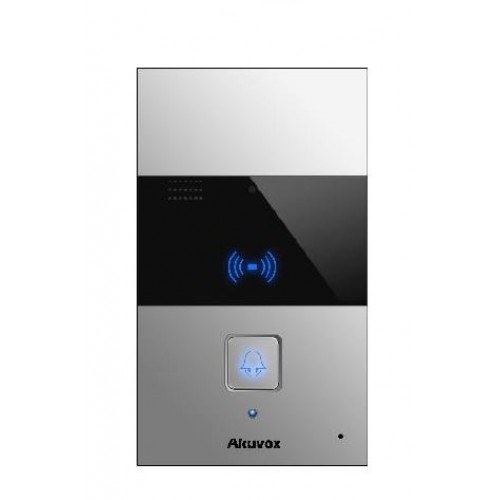

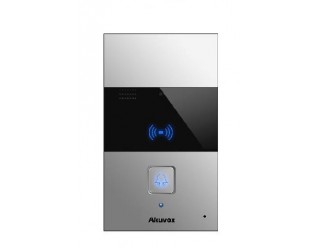

Akuvox R23C IP Audio Door Phone with one Button & RFID Card reader

Akuvox Audio Doorphone R23C is an open, non proprietary IP based door station for two way communication and remote entry control. It is a perfect complement to any SIP system and offers new possibilities to effectively control entry to your premises.

Key Features & Benefits:

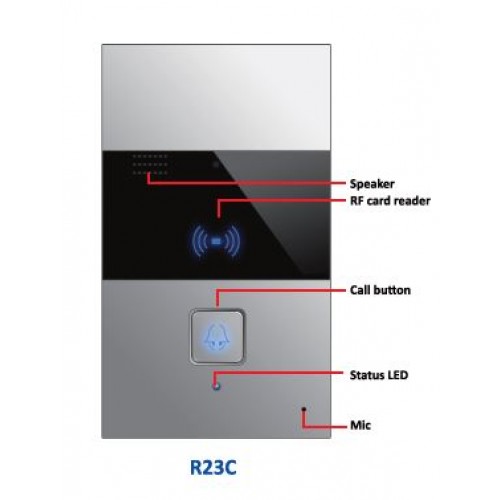

• Vandal resistant body, with a flush button
• PoE (IEEE802.3af, Power over Ethernet)
• Two-way audio communication over IP networks with Echo Cancellation feature
• Complies with SIP standard for easy integration in every SIP capable PBXs

Physical & Power:

• Aluminum Front panel
• 1 call button
• Wiegand port: Support
• RS485 port: Support
• RF card r eader: 13.56MHz
• Relays out: 2
• Inputs: 3
• Microphone: 40dB
• Speaker: 8Ω / 2W
• Ethernet port: RJ45, 10/100Mbps adaptive
• Power out: 12V/400mA
• 802.3af Power over Ethernet
• 12V DC connector (if not using PoE)
• Water proof & Dust proof: IP 65
• On-Wall mounted (installation bracket included)
• Wall mounted DIM: 190x110x40mm
• Working Humidity: 10 ~ 90%
• Working Temperature: -20 °C ~ +55 °C
• Storage Temperature: -40 °C ~ +70 °C
• 1 Year Warranty

Audio:

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711 μ , G.729
• Broadband audio codec: G.722
• DTMF: In band, out of band DTMF (RFC2833), SIP Info
• Echo Cancellation, Voice Activation Detection, Comfort Noise Generator

Door Entry Feature:

• Relays controlled individually by DTMF tones

Networking & Protocols:

• IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP

Deployment:

• Auto Provisioning
• Web management portal
• Web based packet dump
• Configuration backup / restore
• Entry log export
• Access table export / import
• Firmware upgrade
• System logs (include door access logs)

Application Scenario:

• Office door phone with on site or hosted IP PBX
• Remote site entry over Internet
• Apartment/flat intercom with door access control

 PartnerNET Akuvox R23C IP Audio Door Phone Datasheet

Package Contents:

• R23C Audio Door Phone
• 4x M3x5 screw
• 2x ST1.7x4 screw
• 1x Allen wrench
• 3x Rubber plug
• 1x Rope
• 1x Locking Cable plate
• 1x Silicone rubber sealing ring
• 1x Back cover
