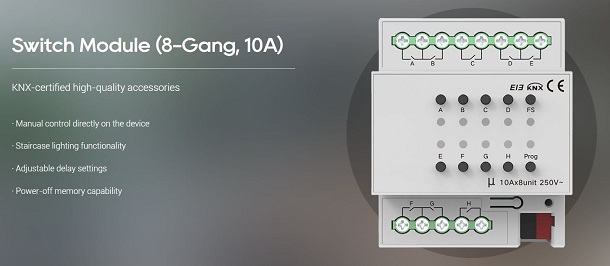

Akubela EIB/KNX 8-Gang 10A Switch Module - LY/K0810412J

The 8-gang 10A switch module is a versatile KNX smart device equipped with eight independent output channels, seamlessly integrating manual operation, scheduled execution and real-time status monitoring functions. It boasts advantages in energy saving, flexibility and safety, making it an indispensable part of the smart home ecosystem.

Key Features & Benefits:

• Supports manual operation for turning on/off the switch
• Set the timing function, featuring a delayed turn on/off switch function
• Offer feedback on the switch status of the device
• Supports configurable scene functionality
• Set up and use easily

Specifications:

• Product Module: LY/K0810412J
• Power Supply: 21 ~ 30VDC, powered by the bus
• Working Temperature: -5 ~ 45℃
• Working Humidity: 0 ~ 93%RH
• Connections: EIB/KNX
• Rated Voltage: 250V/440VAC, 50/60Hz
• Output Switch Current:
  - Compliant with AC1 (EN60947-4-1) (resistive load), 10A/230V
  - Compliant with AC3 (EN60947-4-1) (capacitive load), 10A/230V
  - Compliant with EN60669 fluorescent lamp load, 10A/230V
• CE standard: Compliant with EMC and low voltage standards, EN50 090-2-2
• Unit Dimensions (LxWxH): 72 × 90 × 64mm
• Unit Weight: 0.27kg

 PartnerNET Akubela EIB/KNX 8 Gang 10A Switch Module Datasheet
