Ruijie-Reyee RG-EG105G-V3 5-Port Gigabit Cloud Managed Router

The Ruijie-Reyee RG-EG105G V3 is a 5-Port Gigabit Cloud Managed Router that supports up to 2 WANs, 100 concurrent clients and 600Mbps max throughput. Ideal choice for SMBs, offers powerful features for small networks with user friendly and easy to learn configuration. Even for advanced functions, set-up can be easily done with the Ruijie Cloud App. Supports unbreakable and load balancing multi-WAN internet, enebles you to block easily unwanted applications with automatically updated library and customize portal page, what you see is what you get. Secure access to your internal device remotely, no matter dynamic or even private IP on gateway WAN port, you can securely monitor the NVR/IPC/Internal Server anytime from anywhere. Make your business easy with the Ruijie-Cloud for self-organizing network, centralized network management, scenario based configuration, Cloud portal authentication, remote monitoring and maintenance.

Highlights:

• Unified features with upgraded flash storage
• User-friendly configuration and easy to use
• High reliability and load balancing through WAN ports
• Easy to block unwanted applications with automatically updating library
• Customized portal page, what you see is what you get
• Secure access to internal devices remotely
• 3 Year Warranty

Key Features & Benefits:

• Mounting options: Desk
• Product Category: Router

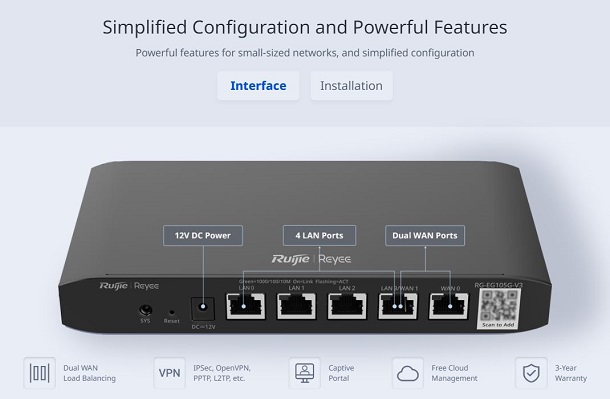

• Service ports:
  1x 10/100/1000Base-T WAN Port
  4× 10/100/1000Base-T LAN Ports
  1x 10/100/1000Base-T LAN/WAN Switchable Port
• LEDs:
  1x system status LED
  5x Ethernet port LEDs
  1x Reset button
• CPU: Dual-core processor, 880 MHz clock frequency per core
• Flash memory: 32 MB
• RAM: 128 MB
• System Performance Capacity:
  - Maximum number of concurrent sessions: 20000
  ​- Recommended number of concurrent clients: 100
• Throughput:
  1000 Mbps (Turbo Mode)
    600 Mbps (Normal Mode)

​ PartnerNet-Ruijie Reyee RG-EG V3 Series Cloud Managed Routers Datasheet

Basic Configurations:

• AC mode
• Automatically identifying the Internet access mode and obtaining IP addresses
• Automatically learning the PPPoE username & password of other routers
• Configuration backup
• Internet access mode:
  - Static IP address
  - Static IPv6 address
  - Dynamic IP address
  - Dynamic IPv6 address
  - PPPoE
• Local upgrade
• Log upload
• Online upgrade
• Restoring factory defaults
• Multilanguage

Authentication:

• Portal authentication
• One-click authentication
• Password authentication
• SMS-based authentication
• Voucher authentication supported by
• Ruijie Cloud portal page
• Cloud portal authentication
• Local portal authentication
• QR code authentication
• Custom portal page
• Account-based authentication supported by Ruijie Cloud portal page
• CHAP, MS-CHAPv1, MS-CHAPv2
• Delivery through Ruijie Cloud portal page
• 802.1X authentication
• MAC address-based authentication
• PPPoE server
• Number of accounts supported by the PPPoE server: 50
• Number of concurrent clients supported by the PPPoE server: 35
• PAP
• RADIUS authentication
• RADIUS client
• RADIUS accounting based on time or traffic
• RADIUS flow control authorization
• RADIUS proxy server
• RADIUS traffic quota authorization
• RADIUS user group authorization
• Third-party authentication

Ethernet Interface:

• Avoiding IP address conflicts on WAN interfacesLoad balancing
• MAC address cloning
• Multiple WAN interfaces on the same network segment
• PPPoE clients

Ethernet Switching:

• VLAN
• VLAN configuration supported on LAN ports
• VLAN priority

Gateway Features:

• WAN failover
• Application priority
• Application recognition
• Behavior management
• QoS
• Time-based blocking policy
• IP address-based blocking policy
• Website filtering: custom URL
• Traffic audit
• URL audit log
• Audit log server
• Uploading audit logs to a server

IP Routing:

• Bandwidth aggregation
• IPv4 static route
• IPv6 PBR, IPv6 static route
• Load balancing based on flows
• Load balancing based on source IP addresses
• Load balancing based on the interface weight
• OSPFv2, OSPFv3
• RIP, RIPng

IP Service:

• 3322.org
• ALG
• ARP binding
• Maximum number of ARP entries: 1024
• Cloudflare
• DHCP client, DHCP server
• Option 43, Option 138
• Static/Dynamic NAT
• NAT loopback
• DNS client, DNS proxy, DNS server, No-IP DNS
• IPTV
• IPv4 ping
• IPv6
• IPv6 ping
• Number of port mapping entries: 256
• Port mapping
• DDNS
• Ruijie DDNS
• Alibaba Cloud DDNS
• UPnP

Network Management & Monitoring:

• Web management
• Ruijie Cloud management
• Management on Ruijie Reyee App
• Remotely monitoring devices through
• Ruijie Reyee App
• Restarting devices through Ruijie Reyee App
• Upgrading device software version through Ruijie Reyee App
• Fault diagnosis
• TFTP client (IPv4 address)
• HTTPS login, NTP client
• Scheduled device restart
• SNMPv1, v2c, and v3
• SON
• Web login information:
  - Default IP Address: 192.168.110.1
  - Default Password: admin
• Max. number of managed devices (router mode):
  - AP and NBS series: 32
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series
• Max. number of managed devices (AC mode):
  - AP and NBS series: 300
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series

SD-WAN:

• SD-WAN
• SD-WAN performance: 80 Mbps
• Number of tunnels supported by SD-WAN: 24
• Max. number of SD-WAN branches: 8
• Active/Standby mode (automatically switching to the standby interface when the active interface fails)
• Centralized traffic forwarding policy

Security:

• ACL
• Malformed packet attack defense
• Fragmentation attack defense
• Teardrop attack defense
• LAND attack defense
• SYN flood attack defense
• Smurf attack defense
• IP attack defense
• Disabling ping
• Stateful ACL
• IP-MAC binding
• Network sharing prevention
• Security log
• Security zone
• User group-based connection limiting

VPN:

• IPsec VPN
• IPsec VPN bandwidth: 28 Mbps
• Maximum number of branches in IPsec VPN networking: 8
• L2TP VPN
• L2TP VPN bandwidth: 130 Mbps
• Maximum number of branches in L2TP VPN networking: 8
• OpenVPN
• OpenVPN bandwidth: 20 Mbps
• Maximum number of branches in OpenVPN networking: 16
• PPTP VPN
• PPTP VPN bandwidth: 190 Mbps
• Maximum number of branches in PPTP
• VPN networking: 8
• Number of VPN accounts for L2TP, PPTP, and OpenVPN: 50
• WireGuard server
• WireGuard client
• WireGuard performance: 80 Mbps
• Number of concurrent tunnels supported by the WireGuard server: 8

WLAN:

• Max. number of APs (AC mode): 300
• Max. number of devices that can be managed: 128
• Wireless Intelligent Optimization (WIO)

Network Service:

• PPPoE Server: Support, 35 Concurrent Clients
• DHCP Server, DNS Server, DNS Client, DNS Proxy, NTP Client
• DDNS: DynDns, NO-IP, Ruijie DDNS
• NAT, Port Mapping/DMZ, UPnP

Power Supply & Consumption:

• Power supply: DC power adapter
• Dimensions of the DC connector:
  - Outer diameter: 5.5 mm (0.22 in.)
  - Inner diameter: 2.1 mm (0.08 in.)
  - Depth: 10.0 mm (0.39 in.)
• Max. power consumption: 12 W

Environment & Reliability:

• Cooling: Fanless design, natural cooling
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to +70°C
• Operating humidity: 10% RH to 90% RH (non-condensing)
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Surge protection:
  - Service port: ±4 kV for common mode
  - Power connector: ±2 kV for common mod

Dimensions & Weight:

• Unit dimensions (WxDxH): 206.5 x 108.5 x 28 mm
• Unit Weight: 0.406 kg
• Package dimensions (WxDxH): 540 x 340 x 285 mm
• Package weight: 0.852 kg

Package Contents:

• 1x RG-EG105G-V3 router
• 1x Power adapter
• 4x Rubber pad
• 1x User Manual
• 1x Warranty Card

















































































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Router
Aggregate Wireless Throughput	600Mbps
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	100
VPN	ΝΑΙ
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
Εγγύηση	3 Χρόνια
