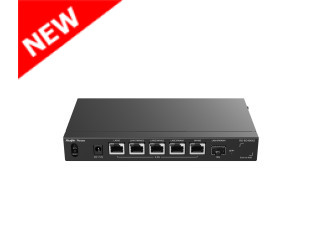

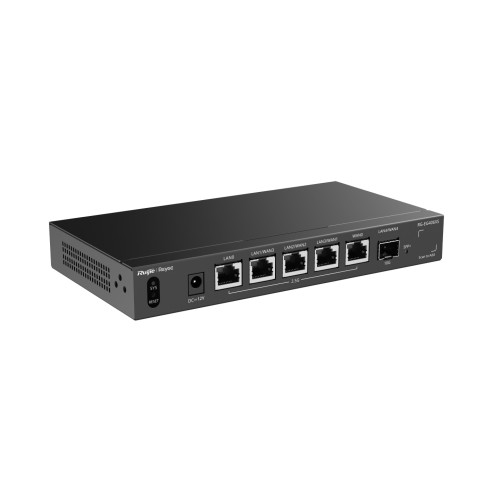

Ruijie-Reyee RG-EG406XS 6-Port Multi-Gigabit Cloud Managed Router with 5x 2.5G Ports and 1x 10G SFP+ port

The Ruijie Reyee RG-EG406XS is a 6-port desktop multi-Gigabit cloud managed PoE router. Offers 5x 10/100/1000/2500BASE-T ports and 1x 10GE SFP+ port, up to 400 recommended concurrent clients, 2.5Gbps max. throughput plus remote cloud management. Secure and dependable solution for office, hotel, school, retail, CCTV and more.

Highlights:

• Supporting up to 400 concurrent clients.
• High-performance router with 2.5 Gbps throughput for diverse network scenarios.
• Efficient bandwidth management based on applications and users.
• Multi-WAN, smart load balancing.
• Lifetime free management on Ruijie Cloud anytime, anywhere.
• 3 Year warranty

Hardware Specifications:

• Model: RG-EG406XS

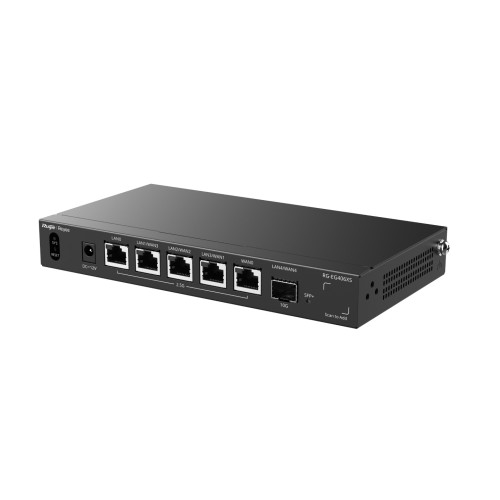

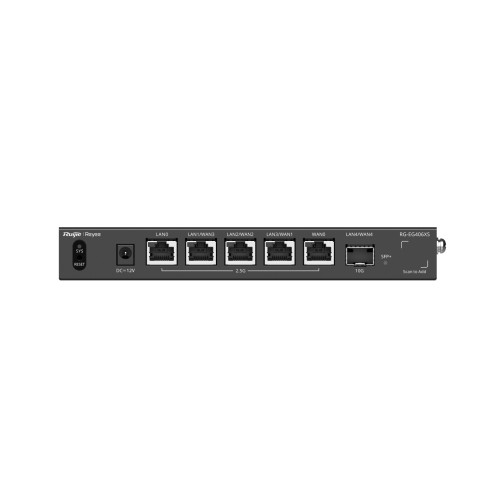

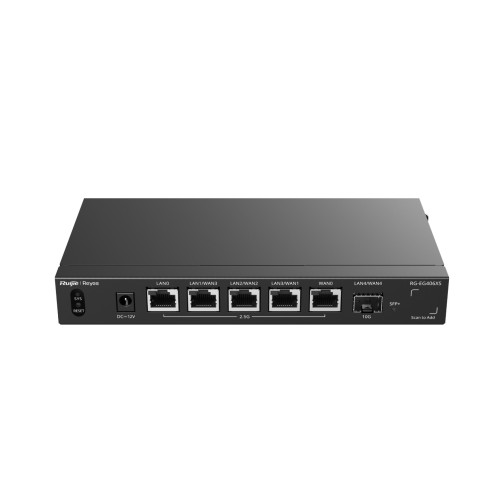

• Port Specifications:- Fixed WAN ports: x5
  - Fixed LAN ports: x5
  - LAN/WAN ports: x4

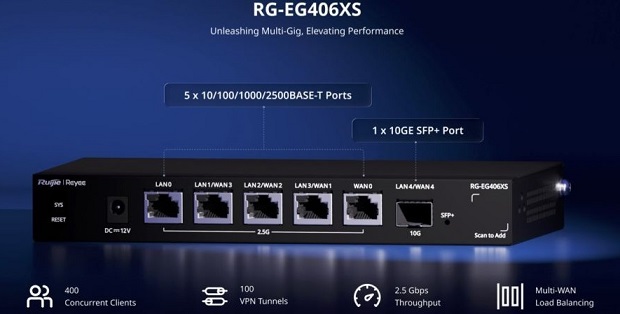

  - 10/100/1000/2500BASE-T ports: x5
  - 10GE SFP+ ports: x1
• Throughput: 2500 Mbps
• Recommended no. of concurrent clients: 400
• Max. power consumption: 9W
• LEDs: 1x system status LED, 6x Ethernet port LEDs
• Reset button: x1
• CPU: Quad-core processor, 2.0 GHz clock frequency per core
• Memory: 1 GB RAM / 256 MB Flash

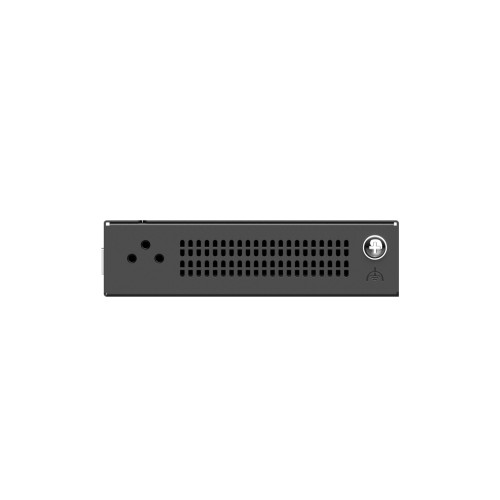

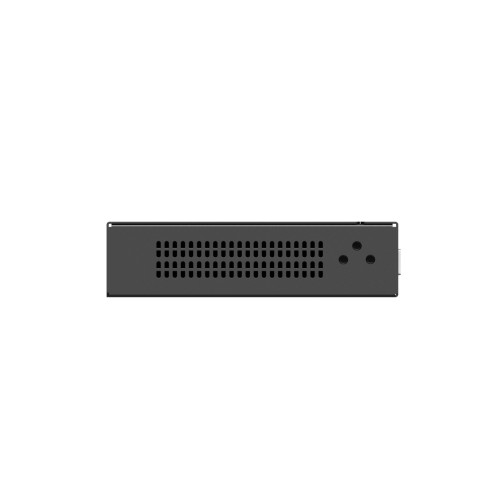

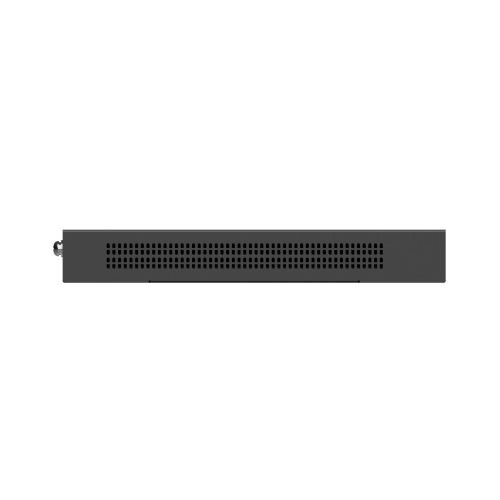

• Cooling: Fanless operation
• Surge protection:
  - Service port： ±4 kV for common mode
  - Power connector： ±4 kV for common mode and ±4 kV for differential mode

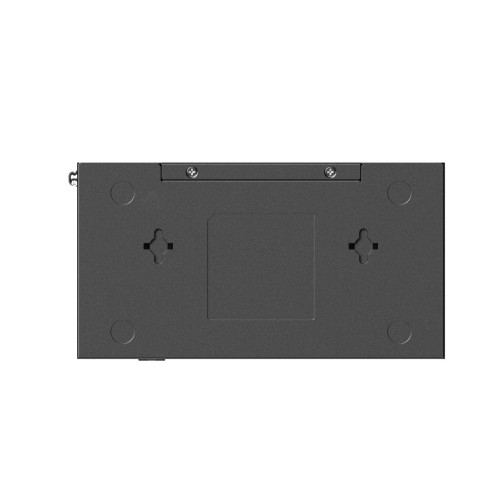

• Mounting: Desk/Rack (Note: The device occupies 1 U of the rack space)
• Unit dimensions (WxDxH): 202 x 108 x 28 mm (7.95 x 4.25 x 1.1 in.)
• Unit weight: 0.61 kg (1.34 lbs)
• Package dimensions (WxDxH): 278 x 229 x 77 mm
• Package Weight: 1.28 kg (2.82 lbs)

Software Specifications:

Basic Configurations:

• Automatically identifying the Internet access mode and obtaining IP addresses
• Automatically learning the PPPoE username and password of other routers
• Configuration backup
• Internet access mode:
  - Static IP address
  - Static IPv6 address
  - Dynamic IP address
  - Dynamic IPv6 address
  - PPPoE
• Local upgrade
• Log upload
• Online upgrade
• Restoring factory defaults
• Multi-language

Authentication:

• Portal authentication
• One-click authentication
• Password authentication
• SMS-based authentication
• Voucher authentication supported by Ruijie Cloud portal page
• Cloud portal authentication
• Local portal authentication
• QR code authentication
• Custom portal page
• Account-based authentication supported by Ruijie Cloud portal page
• CHAP, MS-CHAPv1, MS-CHAPv2
• Delivery through Ruijie Cloud portal page
• 802.1X authentication
• MAC address-based authentication
• PPPoE server
• Number of accounts supported by the PPPoE server: 400
• Number of concurrent clients supported by the PPPoE server: 200
• PAP
• RADIUS authentication
• RADIUS client
• RADIUS accounting based on time or traffic
• RADIUS flow control authorization
• RADIUS proxy server
• RADIUS traffic quota authorization
• RADIUS user group authorization
• Third-party authentication

Ethernet Interface:

• Avoiding IP address conflicts on WAN interfaces
• Load balancing
• MAC address cloning
• Multiple WAN interfaces on the same network segment
• PPPoE clients

Ethernet Switching:

• VLAN
• Maximum number of VLANs: 128
• VLAN configuration supported on LAN ports
• VLAN priority
• Number of MAC address entries to be filtered: 512

Gateway Features:

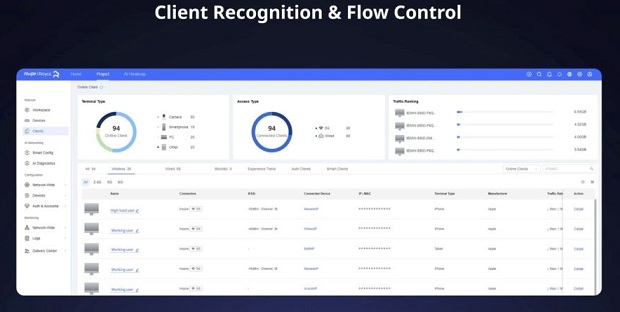

• Flow control
• Time-based blocking policy
• IP address-based blocking policy
• Website filtering: custom URL
• Traffic audit Log, URL audit log
• Audit log server
• Uploading audit logs to a server

IP Routing:

• IPv6 static route
• Load balancing based on flows
• Load balancing based on source IP addresses
• Load balancing based on the interface weight
• OSPFv2, OSPFv3, RIP, RIPng

IP Service:

• 3322.org
• ALG
• ARP binding
• Maximum number of ARP entries: 1024
• Cloudflare
• DHCP client, DHCP server
• Option 43, Option 138
• Static/Dynamic NAT
• NAT loopback
• DNS client, DNS proxy, DNS server, No-IP DNS
• IPTV
• IPv4 ping, IPv6, IPv6 ping
• Number of port mapping entries: 512

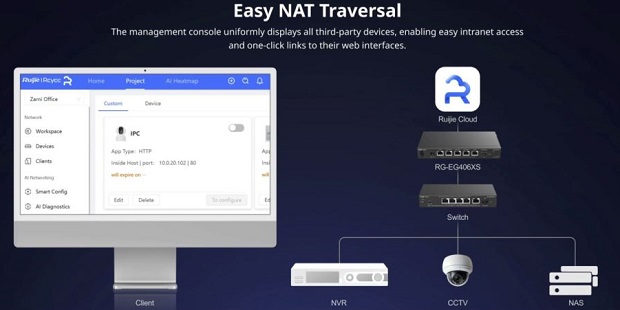

• Port mapping
• DDNS, Ruijie DDNS, Alibaba Cloud DDNS
• UPnP

Network Management & Monitoring:

• TFTP client (IPv4 address)
• HTTPS login
• NTP client
• Scheduled device restart
• SNMPv1, v2c, and v3
• Self Organizing Network (SON)
• Fault diagnosis
• Web login information:
• Default IP Address: 192.168.110.1
• Default Password: admin

SD-WAN:

• SD-WAN performance: 750 Mbps
• Number of tunnels supported by SD-WAN: 300
• Maximum number of SD-WAN branches: 100
• Active/Standby mode (automatically switching to the standby interface when the active interface fails)

Security:

• ACL, IPv6 ACL
• Malformed packet attack defense
• Fragmentation attack defense
• Teardrop attack defense
• LAND attack defense
• SYN flood attack defense
• Smurf attack defense
• IP attack defense
• Disabling ping
• Stateful firewall
• IP-MAC binding
• Network sharing prevention
• Security log
• Security zone
• User group-based connection limiting

VPN:

• IPsec VPN
• IPsec VPN bandwidth: 700 Mbps
• Max. number of branches in IPsec VPN networking: 100
• L2TP VPN
• L2TP VPN bandwidth: 850 Mbps
• Max. number of branches in L2TP VPN networking: 100
• OpenVPN
• OpenVPN bandwidth: 200 Mbps
• Max. number of branches in OpenVPN networking: 100
• PPTP VPN
• PPTP VPN bandwidth: 850 Mbps
• Max. number of branches in PPTP VPN networking:100
• Number of VPN accounts for L2TP, PPTP, and OpenVPN: 400
• WireGuard server, WireGuard client
• WireGuard performance: 750 Mbps
• Number of concurrent tunnels supported by the WireGuard server: 100

WLAN:

• Max. number of APs (AC mode): 750
• Max. number of devices that can be managed: 128
• Wireless Intelligent Optimization (WIO)

Package Contents:

• RG-EG406XS
• Power adapter: x1
• Power cord: 31.49 in.
• Rubber pad: x4
• User Manual
• Warranty Card





















































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Router
Aggregate Wireless Throughput	2.5Gbps
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	400
VPN	ΝΑΙ
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
SFP Ports	ΝΑΙ
Εγγύηση	3 Χρόνια
