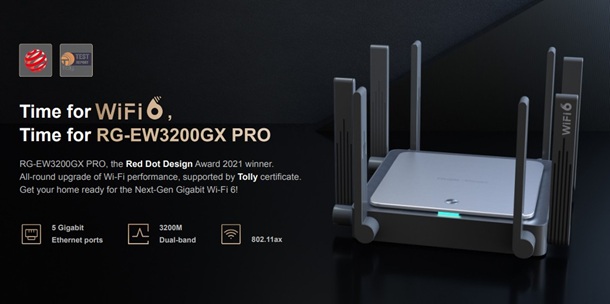

Ruijie-Reyee RG-EW3200GX PRO - 3200Mbps Dual-band Gigabit Wi-Fi 6 Mesh Router

Κατασκευαστής: Ruijie
Κωδικός Προϊόντος: REYE-0038
Διαθεσιμότητα: Please Login

The Ruijie-Reyee RG-EW3200GX PRO is a 3200Mbps Wi-Fi 6 Dual-band Gigabit Mesh router. Supports enterprise-grade chip, 802.11ax protocol, Gigabit broadband access, dual-core 4-thread CPU, hardware NAT, wireless access with dual-band 3200Mbps and wired access with 5 Gigabit ports, including 1 WAN and 4 LAN ports. Concurrent access up to 60 (recommended) terminals and 192 for daily using, as well as exclusive Reyee Mesh technology for multi-device. Also supports seamless roaming of Wi-Fi signals, 4+4 independent high-performance signal amplifiers(FEM) and management via the Ruijie Cloud App on mobile phones.

Highlights:

  • Next-Gen Gigabit Wi-Fi 6 (802.11ax) Standard

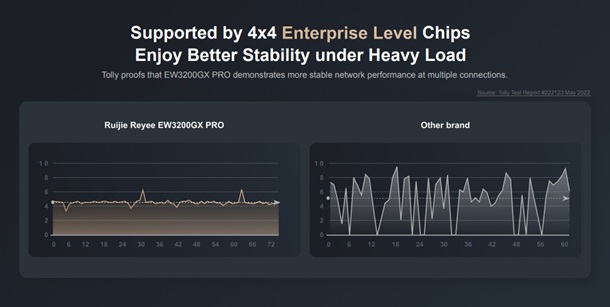

  • 4x4 Enterprise-level Chipset, better stability under heavy load
  • 8 Antennas and 8 Signal Amplifiers, provide whole-home network coverage
  • Exclusive Reyee Mesh solution, one click to mesh up multiple Reyee Mesh devices

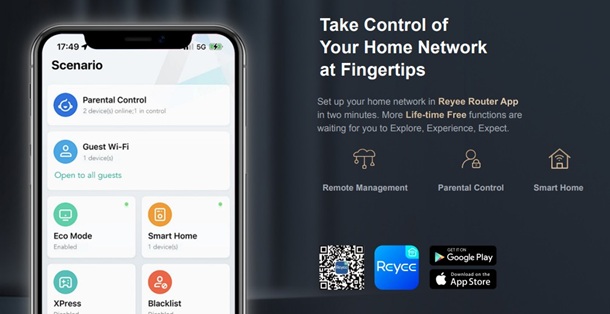

  • Take control of your home network at your fingertips

Key Features & Benefits:

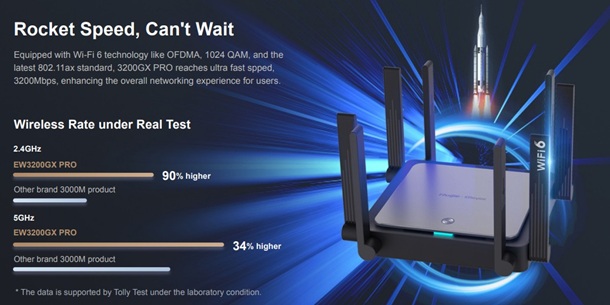

  • Max. Wi-Fi Speed: 2.4 GHz: 800 Mbps 5 GHz: 2400 Mbps
  • 2.4 GHz: 4×4, 5 GHz: 4×4 MU-MIMO
  • Channel Width: 2.4 GHz: Auto/20/40 MHz - 5 GHz: Auto/20/40/80 MHz
  • Max. Users: 192
  • Recommended Users: 60
  • Maximum Number of SSIDs: 6
  • Layer 2 Roaming
  • 8x External Omnidirectional Antennas, gain: 2.4 GHz: 5 dBi, 5 GHz: 6 dBi
  • 1x 10/100/1000 Base-T WAN Port
  • 4x 10/100/1000 Base-T LAN Ports
  • Reyee Mesh Button, Reset Button
  • System LED Indicator, Reyee Mesh LED Indicator
  • Operating Mode: Repeater, Router, AP
  • Operation Frequency Bands:
  • -802.11b/g/n: 2.400 GHz to 2.483 GHz
  • -802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz
  • -802.11a/n/ac/ax: 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHz
  • -country-specific restrictions apply
  • Transmit Power: Regular CE EIRP: ≤20 dBm (2.4 GHz) ≤27 dBm (5 GHz)
  • Advanced Technology: VPN, IPv6
  • CPU MT7622, RAM/SDRAM 256M / 16MB Flash
  • Power Consumption ≤18W
  • Operating Temperature 0°C to +45°C
  • Operating Humidity 5% to 95% Noncondensing
  • Dimensions (WxDxH): 190x190x41mm
  • Weight: 0.8kg (packages not included)
  • Power Supply: DC 12V/2.5A
  • 3 Year Warranty

 PartnerNet-Ruijie Reyee RG-EW3200GX PRO WiFi 6 Dual-band Mesh Router Datasheet

Package Contents:

  • RG-EW3200GX PRO Wireless Router
  • Power Adapter
  • Quick Start Guide
  • Cat5e UTP Cable
Χαρακτηριστικά
Κατασκευαστής Ruijie
Τύπος Προϊόντος Wireless Router
Antenna Dual-band 4x4:4 MU-MIMO
Embedded Controller ΝΑΙ
Max. Concurrent Clients 192
VPN ΝΑΙ
Cloud managed / monitor ΝΑΙ
Ethernet Port Gigabit
Wi-Fi ΝΑΙ
Εγγύηση 3 Χρόνια
