Ruijie-Reyee RG-EW1200 - 1200M Dual-band Wireless Home Router (Enhanced Edition)

The Ruijie-Reyee RG-EW1200 is a 1200M dual-band wireless home router (enhanced edition). Supports enterprise-grade chip, 100Mbps broadband access, dual-core hyper-threading CPU, hardware NAT, wireless dual-band 1167Mbps and wired 4x 10/100BASE-T Ethernet ports, including 1 WAN and 3 LAN. Also supports 802.11ac Wave2, exclusive Reyee Mesh networking technology for multi-device and Wi-Fi seamless roaming. The RG-EW1200 is equipped with intelligent hardware NAT forwarding technology and enables management via Ruijie Cloud App on mobile phones.

Highlights:

• 802.11ac wave2
• Four omnidirectional antennas providing strong Wi-Fi signals
• Flexible solutions for your network through Reyee mesh
• Parental control and health mode
• 96 concurrent connections

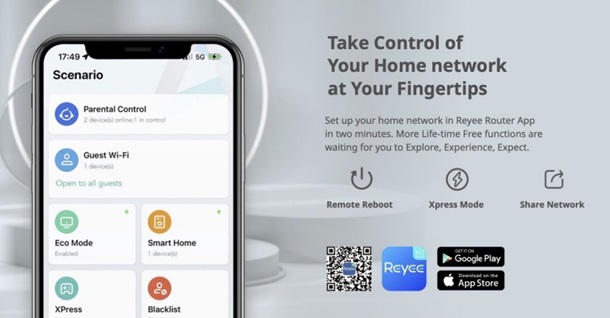

• Easy network management at your fingertips with Reyee Router App
• 3 Years Warranty

Key Features & Benefits:

• Model: RG-EW1200
• Color: White
• RAM: 64 MB
• Wi-Fi Standards: Wi-Fi 5 (802.11ac)
• Highest QAM order: 256
• Max. Wi-Fi Speed: 2.4 GHz: 300 Mbps - 5 GHz: 867 Mbps
• MIMO: 2.4 GHz: 2×2, 5 GHz: 2×2
• Channel Width: 2.4 GHz: Auto/20/40 MHz - 5 GHz: Auto/20/40/80 MHz
• Max. Users: 64
• Recommended Users: 24
• Maximum Number of SSIDs: 6
• Layer 2 Roaming
• Antenna:
  4x External omnidirectional antennas
  Antenna gain (2.4 GHz): 4.5 dBi
  Antenna gain (5 GHz): 5.5 dBi
• Service Ports:
  1x 10/100 Base-T WAN Port
  3x 10/100 Base-T LAN Ports
• LEDs:
  1x system status LED
  1x Wi-Fi LED
  4x Ethernet port LEDs
• Operating Mode: Repeater, Router, AP
• Operation Band:
  8IEEE 802.11b/g/n，2.400GHz~2.4835GHz
  IEEE 802.11a/n/ac，5.150GHz～5.350GHz
  IEEE 802.11a/n/ac，5.470GHz～5.725GHz
  IEEE 802.11a/n/ac，5.725GHz～5.850GHz
  Note: Country-specific restrictions apply
• Transmit Power: Regular CE EIRP: ≤20 dBm (2.4 GHz) ≤27 dBm (5 GHz)
• Advanced Technology: IPv6
• MESH, IPTV, Parental Control, APP Management, Firewall
• CPU MT7628, RAM/SDRAM 64M / 16MB Flash
• Power Consumption ≤8.2W

Environment & Reliability:

• Operating humidity: 5% RH to 95% RH (non-condensing)
• Operating temperature: 0 °C to +45 °C (32 °F to 113 °F)
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Storage temperature: -40 °C to +70 °C (-40 °F to 158 °F)

Dimensions & Weight:

• Unit Dimensions (WxDxH): 182x120x32mm
• Unit Weight: 0.22 kg (packages not included)
• Gross Weight: 0.41 kg (with packaging materials)
• Power Supply: DC 12V/0.6A

​ PartnerNet-Ruijie Reyee RG-EW1200 Dual-band Gigabit Wireless Router Datasheet

Package Contents:

• RG-EW1200 Router
• 1x Ethernet cable
• 1x Power adapter 1
• User Manual
• Warranty Card
