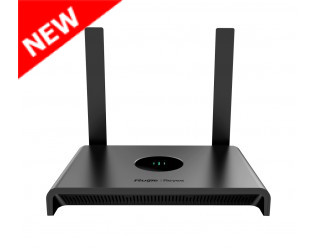

Ruijie-Reyee RG-EW300N 300 Mbps Wireless Smart Router

The Ruijie-Reyee RG-EW300N is a basic and reliable 300 Mbps Wireless Smart Router. In Router Mode enables you to create a private wireless network and connect devices to the Internet. In AP Mode you can add wireless capabilities to a wired brnetwork, extending the Wi-Fi coverage. In Repeater Mode enables you to extend the wireless signal to expand Wi-Fi coverage, eliminating dead zones. And in WISP Mode you can connect to the ISP’s wireless network and share the network connection with other devices. Supports Parental Control via the Reyee Router App allowing you to manage the internet access authority of the specified terminal, including the time limit, speed limit and black/white list setup. Also the Health Mode limits the radiation exposure and blacks out the indicator lights for you to have a good sleep. The RG-EW300N offers an easy setup and newbie-friendly configuration, connecting to the internet by a few clicks. Set up your home network in Reyee Router App in two minutes. More Life-time Free functions are waiting for you to Explore.

Highlights:

• Stable as always
• Four Mode supported: Router Mode, Repeater Mode, AP Mode, WISP Mode
• Easy setup
• Life-time free cloud management supported
• Easy management, easy life
• 3 Year Warranty

Specifications:

• Model: RG-EW300N
• Color: Black
• Wi-Fi Standard: Wi-Fi 4 (802.11n)
• Max. Wi-Fi Speed: 2.4 GHz: 300 Mbps
• MIMO: 2.4 GHz: 2×2
• Max. Users: 16
• Recommended Users: 8
• Antennas: 2 External Omnidirectional
• Antenna Gain: 2.4 GHz: 5 dBi
• WAN Port: 1x 10/100 Base-T
• LAN Port: 3x 10/100 Base-T
• Operating Mode: Router, Repeater, AP, WISP
• Power Supply: DC 5V/1.0A
• Power Consumption: < 5 W
• Operation Frequency Bands: 802.11b/g/n: 2.400 GHz to 2.483 GHz
• CPU: MT7628DAN
• Memory: 64MB RAM / 16MB Flash
• System LED Indicator: Yes
• Reset Button: Yes
• Operating Temperature: -10 °C to 40 °C
• Operating Humidity: 5% to 95% Noncondensing
• Certifications: CE

Wireless:

• Maximum Number of SSIDs: 3
• SSID Hiding
• Guest Wi-Fi
• WPA/WPA2
• WPA3
• Layer 2 Roaming
• Blocklist
• QoS (WMM)
• Transmission Power Adjustment

WAN:

• Static IP
• DHCP
• PPPoE
• Learning PPPoE Account & Password
• VLAN Tagging

LAN:

• DHCP Server
• Client List
• Static IP Assignment
• Port-Based Flow Control

Features:

• IPv6
• Preset
• DDNS
• IPTV
• Alarm
• Diagnosis
• UPnP
• ARP Binding
• Port Mapping
• DMZ Host
• Rate Limitation of Terminals
• Hardware Acceleration
• MAC Address Cloning
• Cloud Management
• Repeater Mode
• WISP Mode
• AP Mode

Security:

• Parental Control
• Time Schedule
• Protect TCP Flood Attacks

System:

• Default Access/Password: 192.168.110.1
• URL Access
• Local Upgrade
• Online Upgrade
• APP Upgrade
• Syslog
• Backup
• Factory Reset
• Multi language support

Dimensions & Weight:

• Unit Dimensions (WxDxH): 180 × 120 × 27 mm
• Unit Weight: 0.18 kg
• Gift Box Dimensions (LxWxH): 164 x 134 x 102
• Gross Weight: 0.52 kg

Package Contents:

• RG-EW300N
• Power adapter
• Cat5E UTP Ethernet cable
• Quick Installation Guide
• Warranty card
