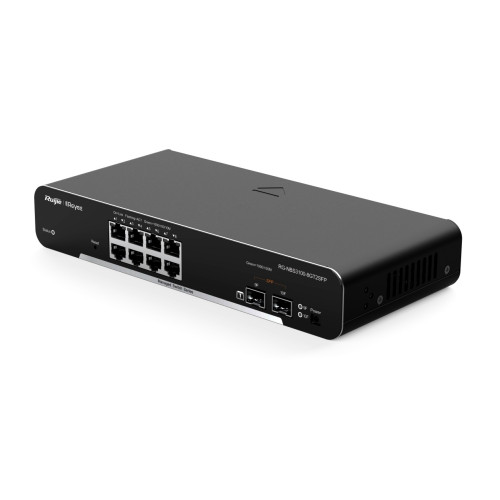

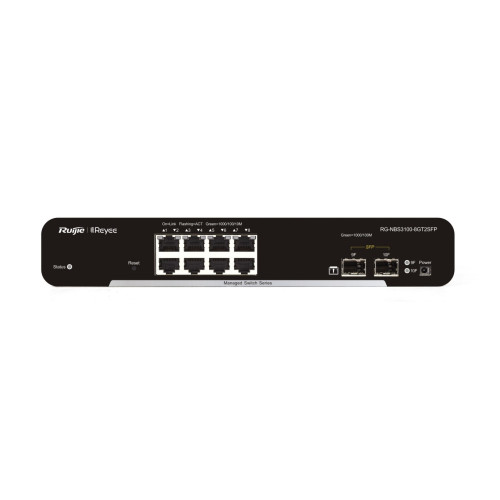

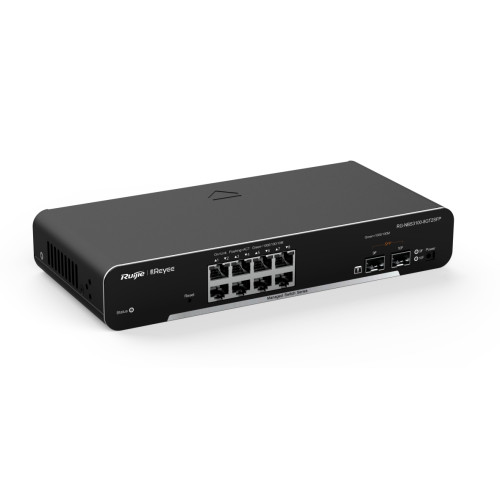

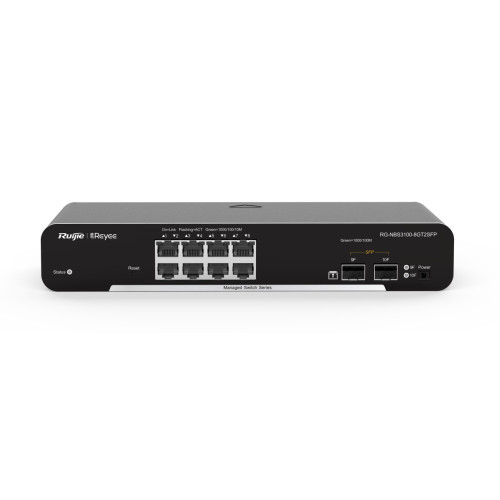

Ruijie-Reyee RG-NBS3100-8GT2SFP 10-Port Gigabit L2 Managed Switch with 8 Gigabit Ports and 2 SFP Slots

• 10-port Layer 2 managed non-PoE switch with 8x Gigabit RJ45 ports and 2x 1GE SFP optical uplink ports

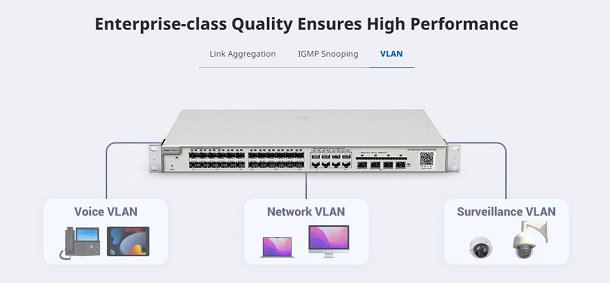

• Enterprise-class quality ensures high performance
• IP Camera Recognition, unique value for CCTV network
• Multiple security policies protect your network
• Lifetime management on Ruijie Cloud at anytime anywhere
• 5 Year Warranty

• Casing: Metal
• Mounting: Rack mountable (rack-mount brackets included) or Desktop
• Product Category: Layer 2 Managed

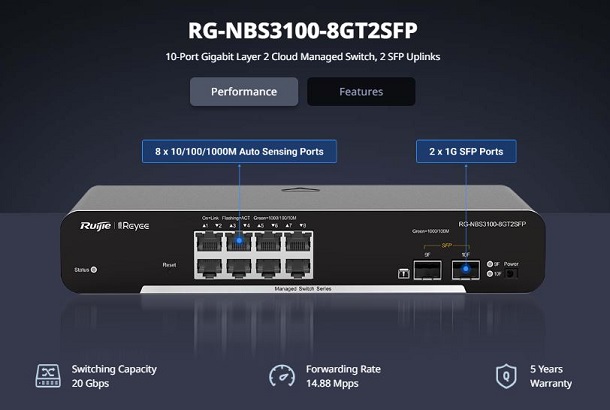

• 8x 10/100/1000Base-T RJ45 ports
• 2x SFP optical uplink ports
• 1x Reset button
• RAM 256 MB, Flash memory 16 MB
• Switching capacity: 20 Gbps(bit/s)
• Forwarding rate: 14.88 Mpps
• MTBF: >200,000

• RADIUS
• 802.1X authentication
• Port-based 802.1X authentication
• MAC address-based 802.1X authentication
• Guest VLAN

• Max. No. of VLANs: 4094
• Max. No. of MAC address entries: 8000
• Interface flow control
• IEEE 802.1Q VLAN
• VLAN configuration supported on LAN ports
• Voice VLAN
• STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
• LLDP, LLDP-MED
• Static MAC address
• MAC address filtering
• Static aggregation
• LACP
• Inbound or outbound rate limiting based on interface traffic

• 802.1p priority-based traffic classification
• DSCP priority-based traffic classification
• Egress queues based on 802.1p and DSCP priorities
• SP, WRR, SP+WRR
• Global QoS

• Jumbo frame length (MTU): 9216 bytes (global configuration mode)
• EEE, Cable test

• Max. No. of ARP entries: 1000
• ARP
• IPv4 ping, IPv4 traceroute
• IPv6, ICMPv6, IPv6 ping, IPv6 traceroute
• DNS client, DNSv6 client
• DHCP client

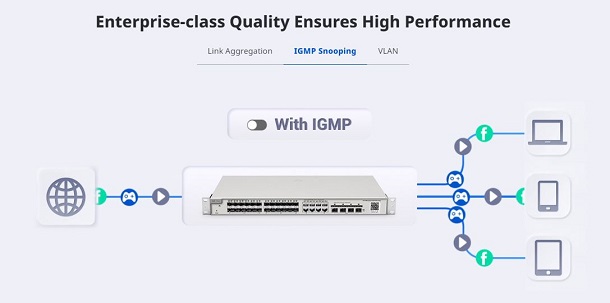

• IGMPv1 snooping
• IGMPv2 snooping
• Basic IGMPv3 snooping
• IGMP filtering

• Mirroring, Port mirroring
• HTTP login, HTTPS login, RLOG
• Self Organizing Network (SON)
• Syslog
• Client auto-discovery
• Camera detection
• System Performance Capacity:
• Recommended camera limit
• 200 W H265: 80
• 400 W H265: 40
• Loop alarm
• MAC address entries
• IP address pool conflicts
• eWeb management
• Ruijie Cloud management
• Ruijie Reyee App management
• SNMPv1, v2c, and v3

• ERPS
• Max. No. of ACEs:
• No. of ACEs in the inbound direction of an interface: 1200
• No. of ACEs in the outbound direction of an interface: 0
• Port isolation
• Broadcast storm control
• Multicast storm control
• Unknown unicast storm control
• DHCP snooping
• Standard ACL, Extended MAC ACL, Extended IP ACL, IPv6 ACL
• IP-MAC-port binding
• ARP anti-spoofing
• IP source guard
• CPU Protection Policy

• DC adapter 100/240V AC, 50/60 Hz, 1.0 A
• Max. power consumption: 8 W
• Cooling: Fanless operation, natural cooling
• Hot Swappable: Service ports support hot swapping of cables
• ESD protection:
• Contact discharge: 6 kV
• Air discharge: 8 kV
• Surge protection:
• Service port: ±6 kV for common mode
• Power connector: ±4 kV for common mode and ±2 kV for differential mode

• Unit dimensions (WxDxH): 260 x 120 x 43.6mm
• Unit weight: 1.2 kg
• Package dimensions (WxDxH): 361x 259 x 94 mm
• Package weight: 1.6 kg

• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Storage temperature: - 40°C to 70°C
• Storage humidity: 5% to 95% RH (non-condensing)
• Operating altitude: - 500 to 5.000m

​ PartnerNet-Ruijie Reyee RG-NBS3000 Series L2 Cloud Managed Switches Datasheet

• RG-NBS3100-8GT2SFP
• 4x Rubber pads
• 2x Rack-mount brackets
• 6x M3x6 mm cross recessed countersunk head screws
• 1x Grounding cable 1m (3.28 ft.)
• User Manual
• Warranty Card
