Akubela IR22 Infrared Remote Controller

The Akubela IR22 controller can realize remote control of infrared devices through APP or HyPanel series. It supports the control of a variety of equipment types, such as air conditioning, TV, fan, etc. It offers extensive infrared signal coverage, which ensures that it can effectively control devices within its range. Equipped with infrared learning capabilities and integrated temperature and humidity sensors, this durable and efficient controller is designed to enhance your smart home experience while operating effectively in a wide range of environmental conditions.

Highlights:

• Support thousands of mainstream brands, can control air conditioning, TV and other devices
• Broad Infrared Signal Coverage within 10 ~ 15m range
• Wide Wireless Range, up to 70m in an open environment
• Temperature and humidity sensor built-in
• Standard ZigBee3.0 protocol, good compatibility
• Support infrared learning
• Free tool installation, stick and play

Specifications:

• Model Number: IR22
• Power Supply: USB Type-C, DC5V 1A
• Networking Method: ZigBee 3.0
• Wireless Distance: ≤70m (open environment)
• Infrared Frequency: 38KHz
• LED indicator light: Supported
• Infrared learning: Supported
• Buzzer: ≤55dB

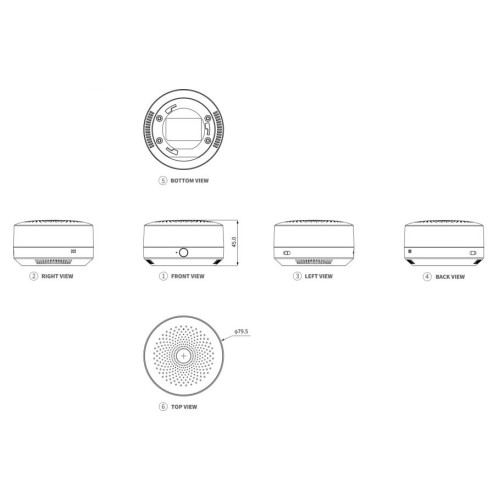

Appearance:

• Material: PC+Infrared transmission material
• Product Size: 79.5 x 79.5 x 45mm

Built In Sensors:

• Temperature Sensor: ±1℃，range：-10℃～55℃
• Humidity Sensor: ±5%，range：10% ～ 90%RH, without condensation
• IR Control Coverage: Horizontal 360°, vertical 180° (hemisphere range), 10 ～ 15m

Working Environment:

• For indoor use only
• Working Humidity: 10% ~ 90%RH, without condensation
• Working Temperature: -10℃ ~ 55℃
• Storage Temperature: -20℃ ~ 65℃

Application Scenario:

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

 PartnerNET Akubela IR22 Controller (ZigBee) Datasheet
