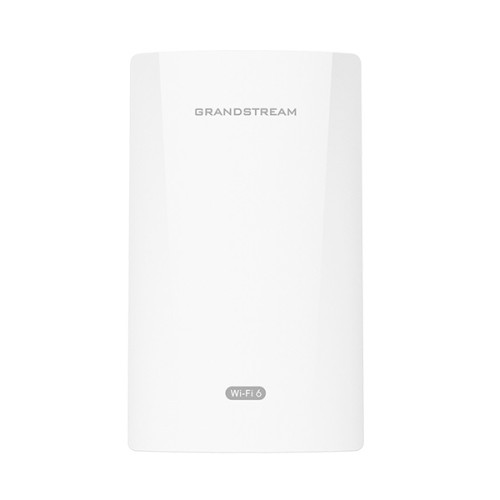

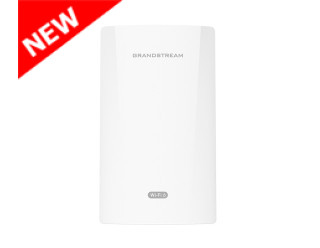

Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge

Grandstream GWN7302 is a new enterprise PtP/PtMP Fixed Wireless Bridge, ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 2x2:2 MIMO and a sophisticated antenna design with TDMA technology to improve spectrum utilization efficiency, reduce interference, and enhance network stability. It supports PtP and PtMP modes to meet different scenarios. It offers IP66-level weatherproof capability to ensure equipment stability. One key pairing can quickly synchronize and connect devices, combined with the signal strength LEDs to guide the antenna alignment, simplifying the installation and use of the device. To ensure easy installation and management, the GWN7302 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7302 is also supported by the GWN App, which can be configured by connecting Wi-Fi broadcasted by the device itself when it is not convenient to access the LAN and the GDMS cloud platform offers remote management. It has a 2x1 Gigabit network port, supporting PoE IN and PoE OUT respectively. GWN7302 is an ideal long-range wireless bridge for factories, construction sites, parking lots, scenic locations, and more.

Key Features & Benefits:

• 2.4Gbps aggregate wireless throughput, 2x1 Gigabit Ethernet Port
• Single-band 2x2:2 MIMO with TDMA technology
• Up to 5-kilometer coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• IP66 level weatherproof
• Self-power adaptation upon auto detection of PoE+
• Convenient and intelligent web management
• GWN App management
• GDMS Networking offers  a remote management via SSH tunneling
• 3 Year Warranty

Hardware Specifications:

Radio:

• Antenna: 2 single internal antennas, 5GHz x2, gain 13.5dBi
• Beamwidth: 5G: H:30°C, V:30°C

MIMO:

• 5GHz: 2x2:2 MIMO

Frequency Bands:

• 5GHz Radio: 5150 - 5850 MHz

Channel Bandwidth:

• 5G: 20, 40, 80 and 160MHz (x2)

Wi-Fi Data Rates:

• 5G:
  IEEE 802.11ax: 7.3 Mbps to 2402 Mbps
  IEEE 802.11ac: 6.5 Mbps to 1732 Mbps
  IEEE 802.11n: 6.5 Mbps to 300Mbps
  IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Maximum TX Power:

• 5G: 26dBm

Coverage Range:

• Up to 5 km

Network Ports:

• 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input
• 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output

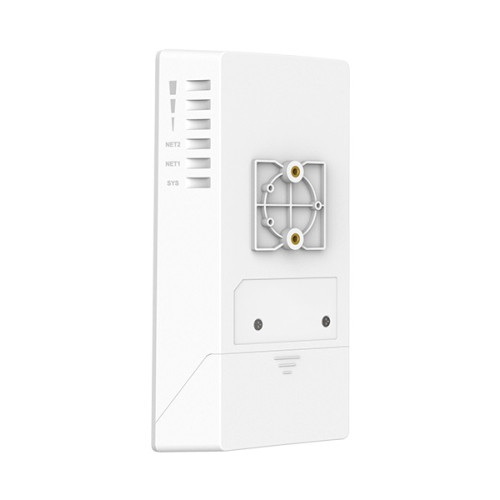

LEDs:

• 1 tri-color LED for device tracking and status indication
• 3x LED for signal strength
• 2x LED for network port status

Auxiliary Ports:

• 1x Reset Pinhole
• 1x Pairing Button

Power:

• PoE Input: 802.3af/at
• DC: +24V (Compatible with 16V-48V)
• PSE output:
  Max 13W with PoE+ input
  Max 25W with +24V DC/2A input
• Maximum Power Consumption: 13W

Dimensions & Weight:

• Unit Dimensions: 180 x 102 x 38 mm
• Unit Weight: 0.412 kg
• Entire Package Dimensions: 219 × 185.5 × 66 mm
• Entire Package Weight: 0.753 kg
• Mounting: Wall mount or pole mount, kits included

Environmental:

• Operating Temperature: -30°C to 60°C
• Storage Temperature: -30°C to 70°C
• Humidity: 5% to 95% Non-condensing
• Weatherproof Guide: IP66-level weatherproof capability

Compliance:

• FCC, CE, RCM, IC

Software Specifications:

WLAN:

• IEEE 802.11 a/n/ac/ax
• SSID: Single 5G, disabled
• Support auto channel
• Support transmit power selection
• Support management Wi-Fi
• Support TDMA

Pairing:

• One-key pairing
• Web pairing

Network:

• Static or DHCP IPv4
• Support VLAN

Security:

• WPA2-PSK
• WPA3-PSK

System Tools:

• Link Test
• Antenna Alignment
• Spectrum Analyzer

QOS:

• 802.11e/WMM,802.1p, 802.1q, TOS

Management Platform:

• Local Web
• GDMS Networking via SSH tunneling
• GWN Manager
• GWN App

Management Protocol:

• TR-069
• SNMP

 PartnerNET Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge Datasheet

Package Contents:

• GWN7302 PtP/PtMP Fixed Wireless Bridge
• Wall/Pole Bracket
• Device Bracket
• Steel Strap
• Terminal Power Adapter (24V input)
• 4x Expansion Bolts
• 4x Screws (M4×8)
• 2x Screws (M3×8)
• 4x Screws (PA3.5×33)
• Adhesive Sticker
• Rubber Waterproof Accessory
• Quick Installation Leaflet


Key Deployment Scenarios:

Logistics:
The GWN7302 can be deployed in harbors, supply chain junctions, railyards and other logistics deployments that frwquently stretch across expansive outdoor areas with facilities dispersed among that space.

Multi-Building Campuses:
The GWN7302 can be combined with an entire infrastructure of Grandstream's switches. Wi-Fi Access Points, IP Phones and more for Corporate buildings, universities, medical campuses and more.

Agriculture:
Farms, ranches and othe agricultural scenarios typically require network access across vast expanses of land which is suitable for the GWN7302 as it has 5 Km coverage range.

Market-Leading Features:

High-Performance Bridging:
The GWN7302 is an enterprise-grade PtP/PtMP system, designed to provide a high-performance bridging solution for locally separated networks. With a focus on performance and range, this is a perfect device for medium-to-large organizations. It has a sofisticated antenna design, speed up to 2.4Gbps and 5km coverage range.

Flexible & Free Management:
Outside of the built-in controller, there are other free ways to manage a GWN7302 wireless bridgevia the GWN App, GDMS Networking and GWN Manager.

Flexible Network Features:
The GWN7302 comes equipped with advanced performance boosting features that allow it to be deployed in diverse use case scenarios. These features include IP66-Level Weatherproofing, One-key pairing, controllerless design and system tools.
